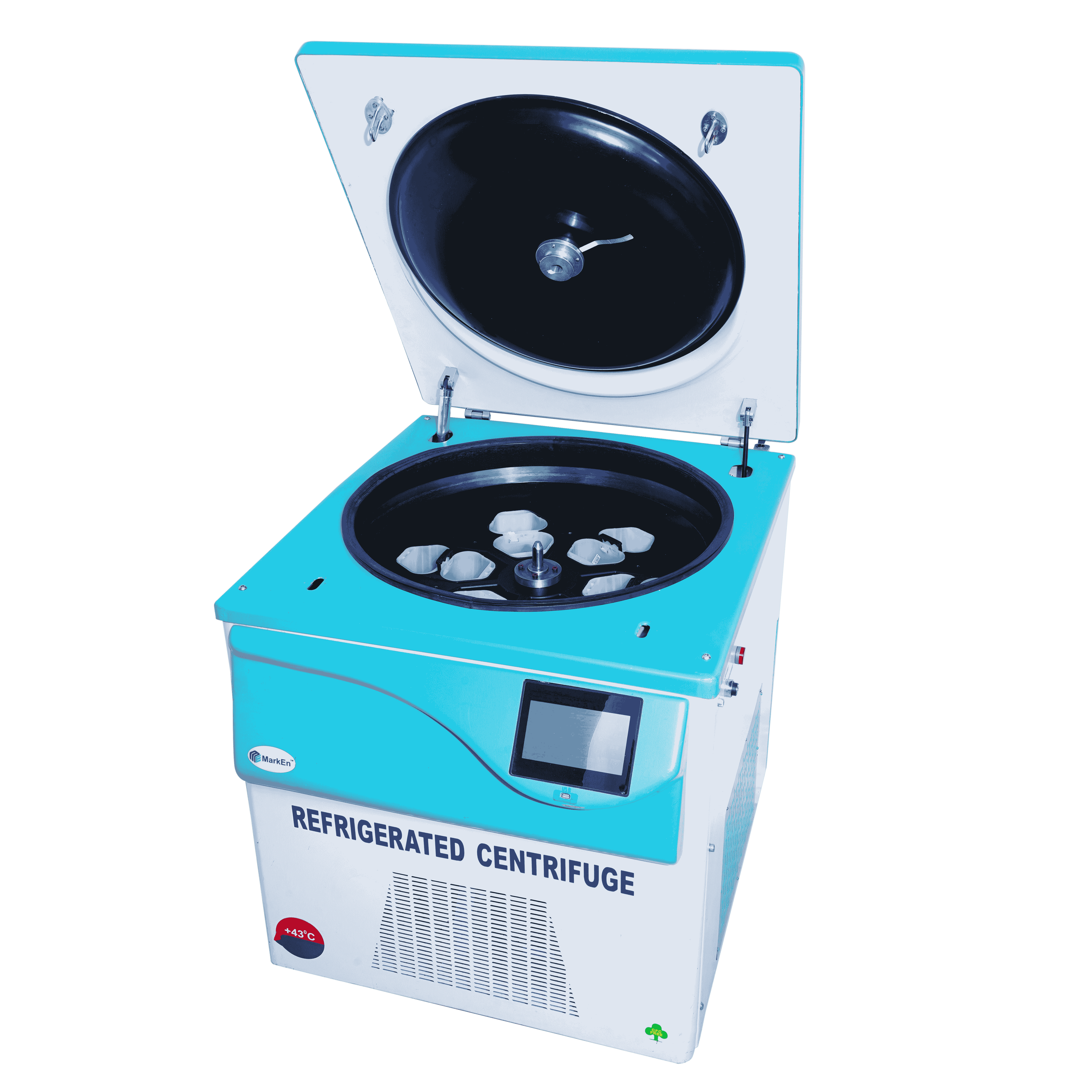

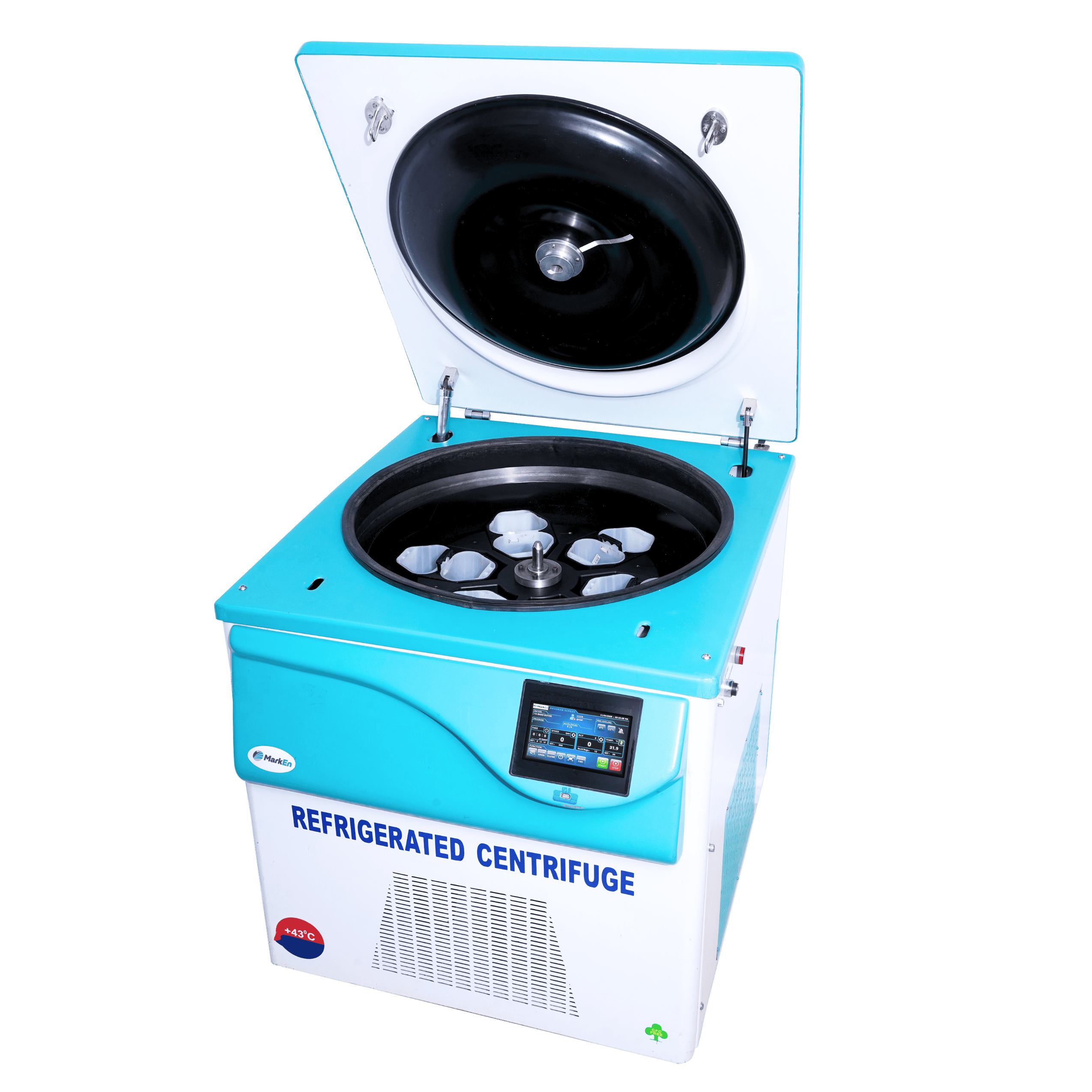

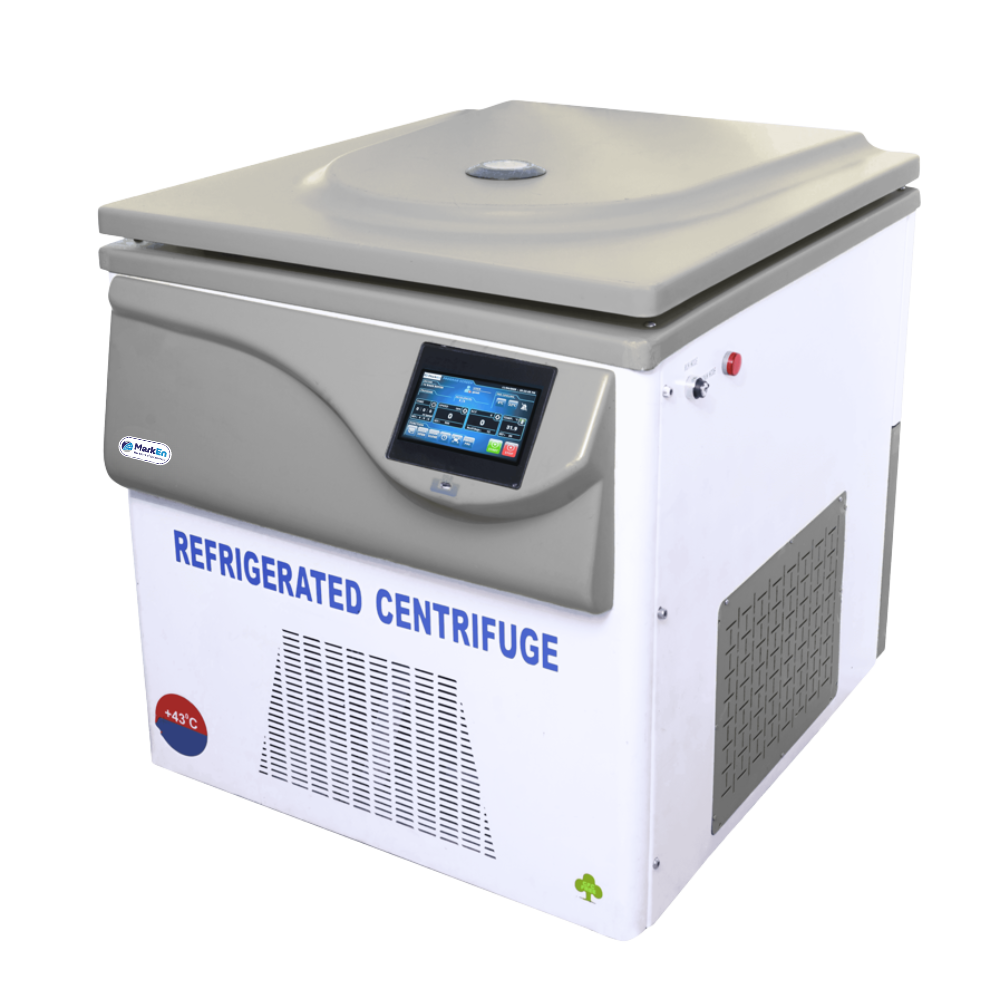

Refrigerated Centrifuge
The Refrigerated Centrifuge is designed for precise centrifugation of temperature-sensitive samples in research, medical labs, blood banks, and pharmaceuticals. It enables efficient separation of blood components like packed red cells and platelet-rich plasma.With a microprocessor-controlled system, it offers easy RPM/RCF control, a brushless motor for quiet operation, and wind-shielded rotors for temperature optimization. An imbalance sensor ensures safe use, making it a reliable choice for laboratories and healthcare facilities.
Ultra-Low Noise & Vibration
Ensures sample integrity and extends the lifespan of internal components, even at high speeds and temperatures.
Tropical Climate Adaptation
Optimized for hot and humid environments, ensuring uninterrupted performance in tropical regions.
Advanced Safety Mechanisms
Automatic rotor detection, tamper-proof programming, and motor cycle counter with alarm alerts enhance operational security.
Programmable Memory for Consistency
Stores and recalls over 120 user-defined centrifugation programs, ensuring reproducibility and flexibility.
Data Management & Storage
Stores run data and supports PC transfer via dedicated software, retaining information for up to three weeks post-power failure.
Certified for International Standards
USFDA, ISO 9001:2015, ISO 13485:2015, and CE compliant, ensuring quality, safety, and regulatory compliance.
| Make | MarkEn |
| Max. speed RPM | 4500 RPM with speed holding accuracy +10 RPM. |
| Max. speed RCF | RCF 7000 x g with programmable 1xg |
| Type of Motor | Maintenance free brushless induction motor with frequency drive |
| Refrigerant | CFC free Green Refrigerant |
| Chamber | Easy to Clean Corrosion resistance Stainless Steel Chamber |
| Castors Wheels | Equipped with 4 castor wheels (2 lockable) for easy mobility and floor-standing jacks for vibration-free operation. |

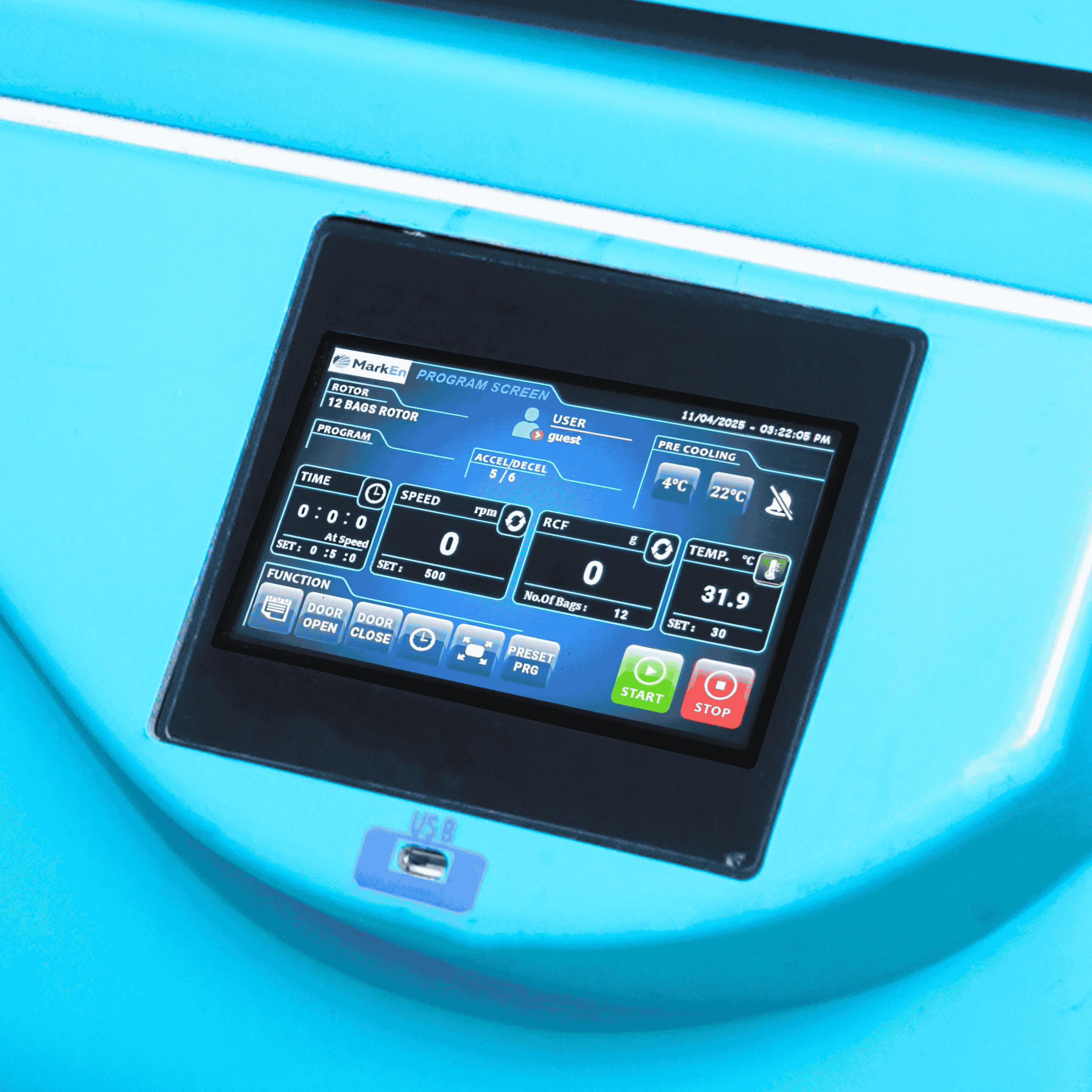

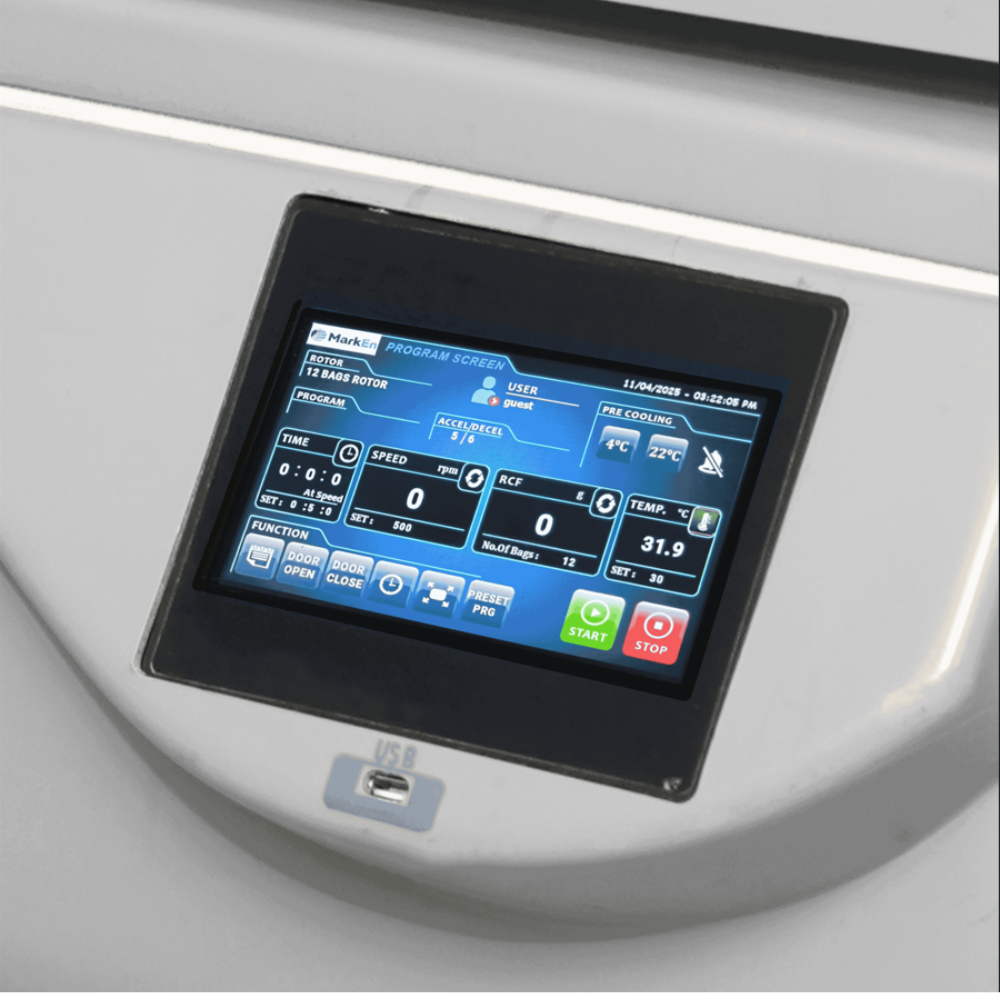

| Control System | 7-inch-wide touch screen digital display (user can used with Gloved hand) with programmable microprocessor controlled located on the front panel fort for enables users to quickly and easily access and adjust settings, making operation of the centrifuge. |
| Display Functions | Provides real-time information on run status, programmed settings, temperature, acceleration and deceleration rates, RPM, RPF (4-digit), time, and total RCF force applied. Includes self-diagnosis for program errors and visual alerts in an enlarged display format. |
| Safety Features | Centrifuge's user access control with password protection ensures that only authorized personnel can operate the device with various safety features, such as automatic shut-off in case of excess imbalance, overheating of rotor compressor, provide an additional layer of protection. The safety key lid lock, interlock, and door safety sense features prevent accidents and unauthorized use. |
| Maximum Noise level | ≤ 55 dB (measured at 1 meter distance) |
| Operating Temperature | +4°C to + 22°C with accuracy of 1°C. |
| Ambient Temperature | Designed for tropical environments, capable of operating between -10°C and +43°C with relative humidity up to 95%. |
| Audio & Visual Alarm | Unwanted temperature rise, Sudden power failure, Imbalance Detection with Automatic Shut Down, Lid (Door) Movement, Over Heating of Rotor and Compressor, High-low voltage cut off, overload, Hand short circuit protection |
| Data Logging | On-board real-time data logging with connectivity options via RS485/USB/LAN ports for data management. |
| Power consumption per Hour | 15 Watts |
| Battery Backup (optional) | Battery backup for Display and Door Open in case of Power Failure |
| External Dimension in mm | 813x1015x973 (W x D x H) mm |
| Weight | 360 Kg |
| Power supply | 220-240V AC, 50Hz Single Phase power supply |
| Power Cord | 2-meter long power cord with Indian-grade 15 Amp plug. |
