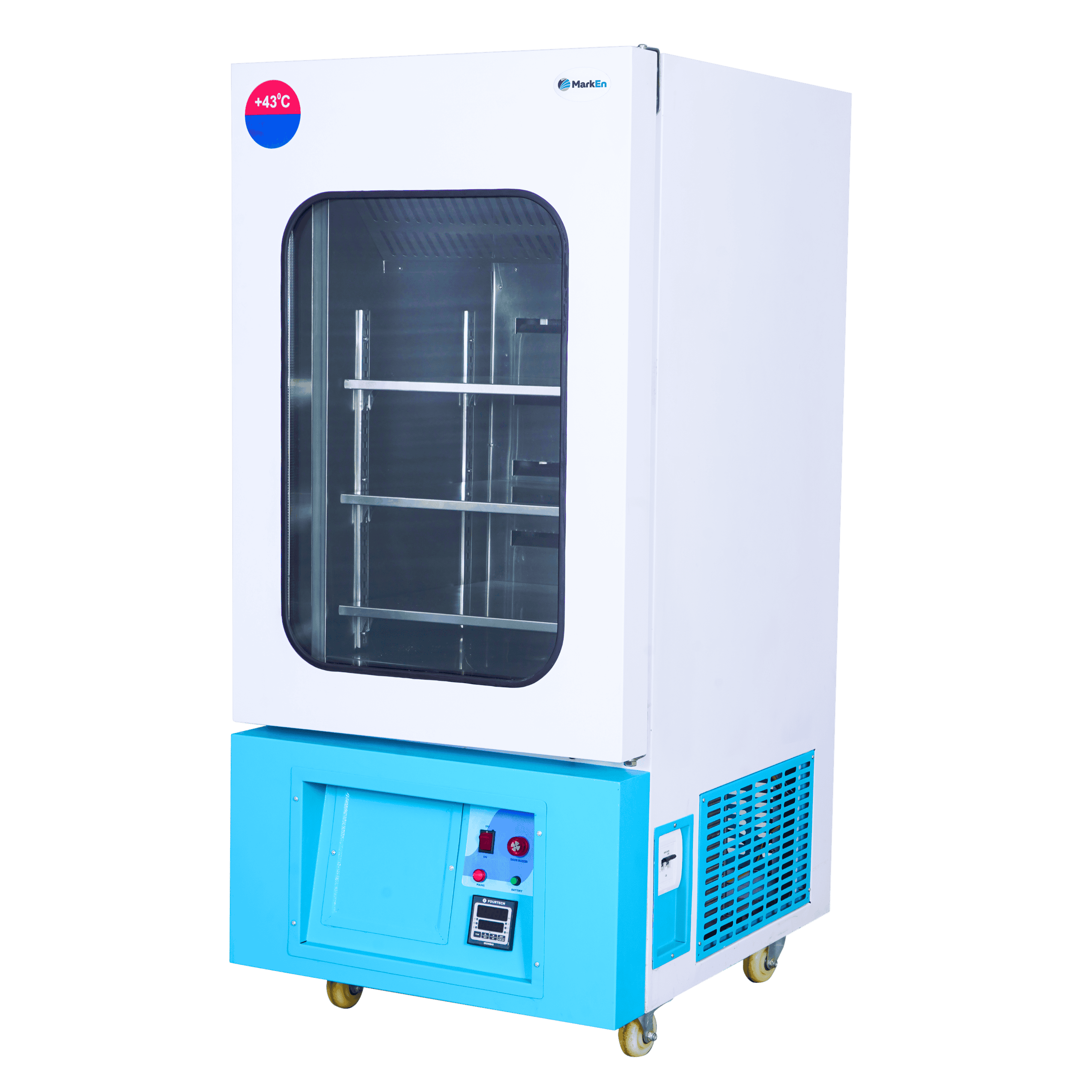

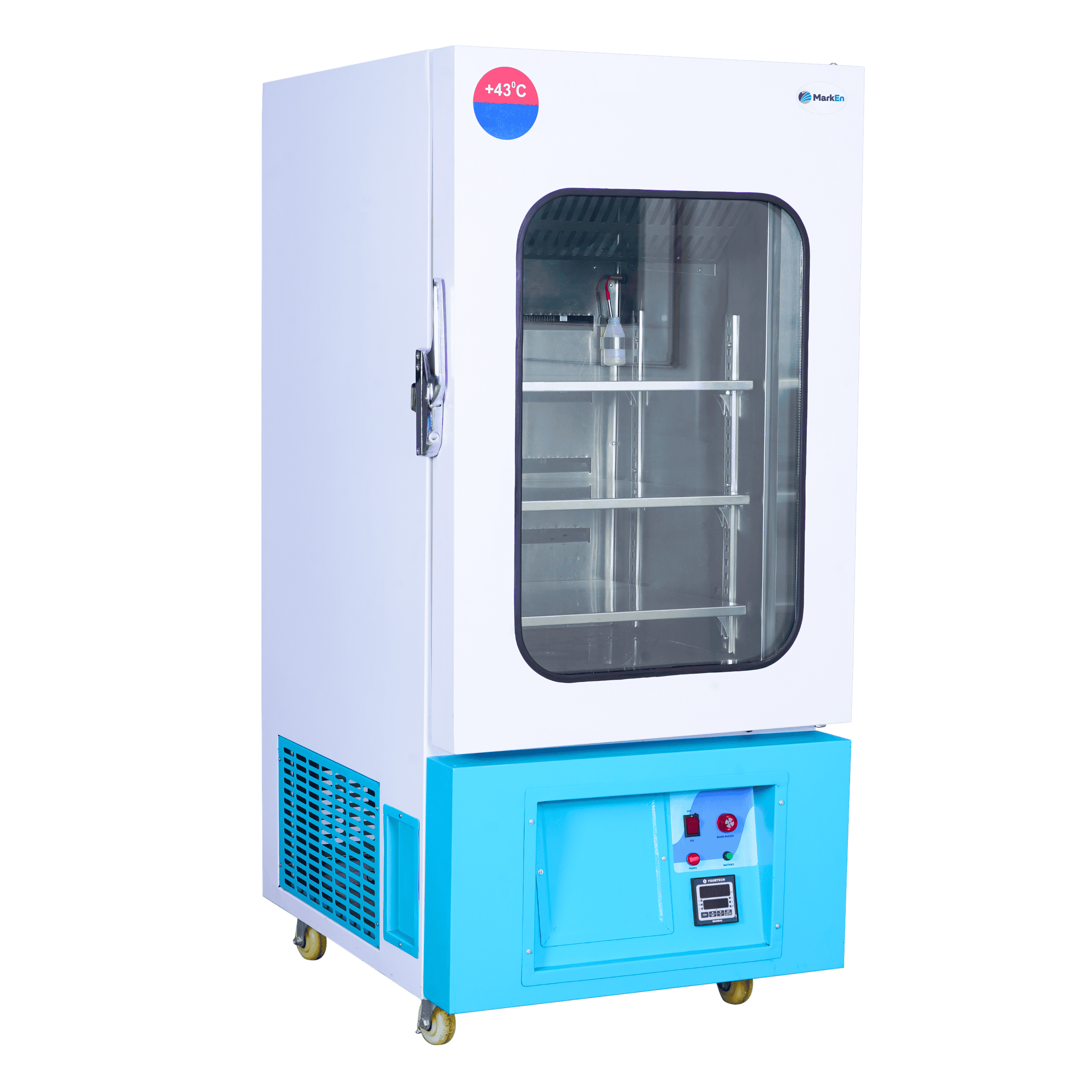

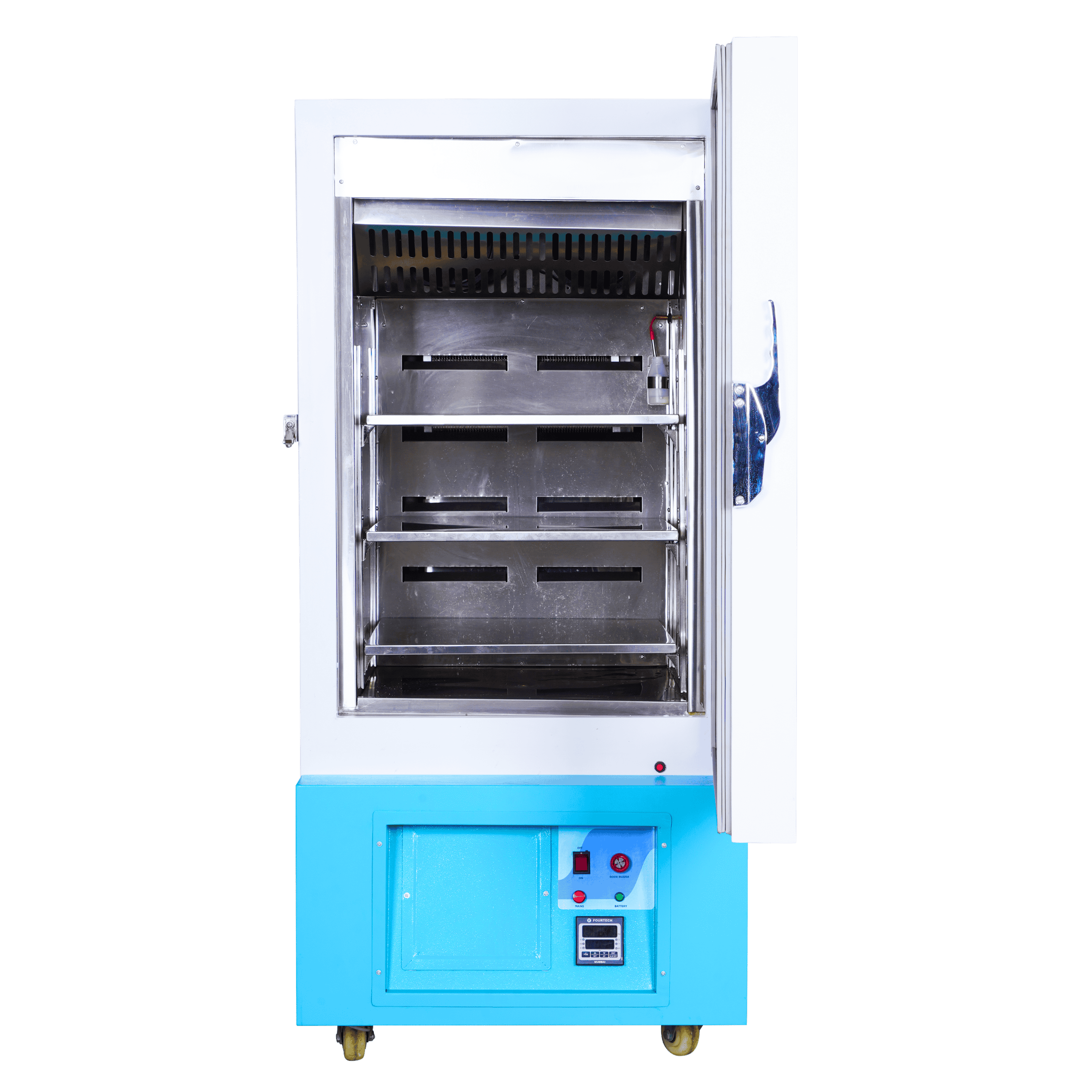

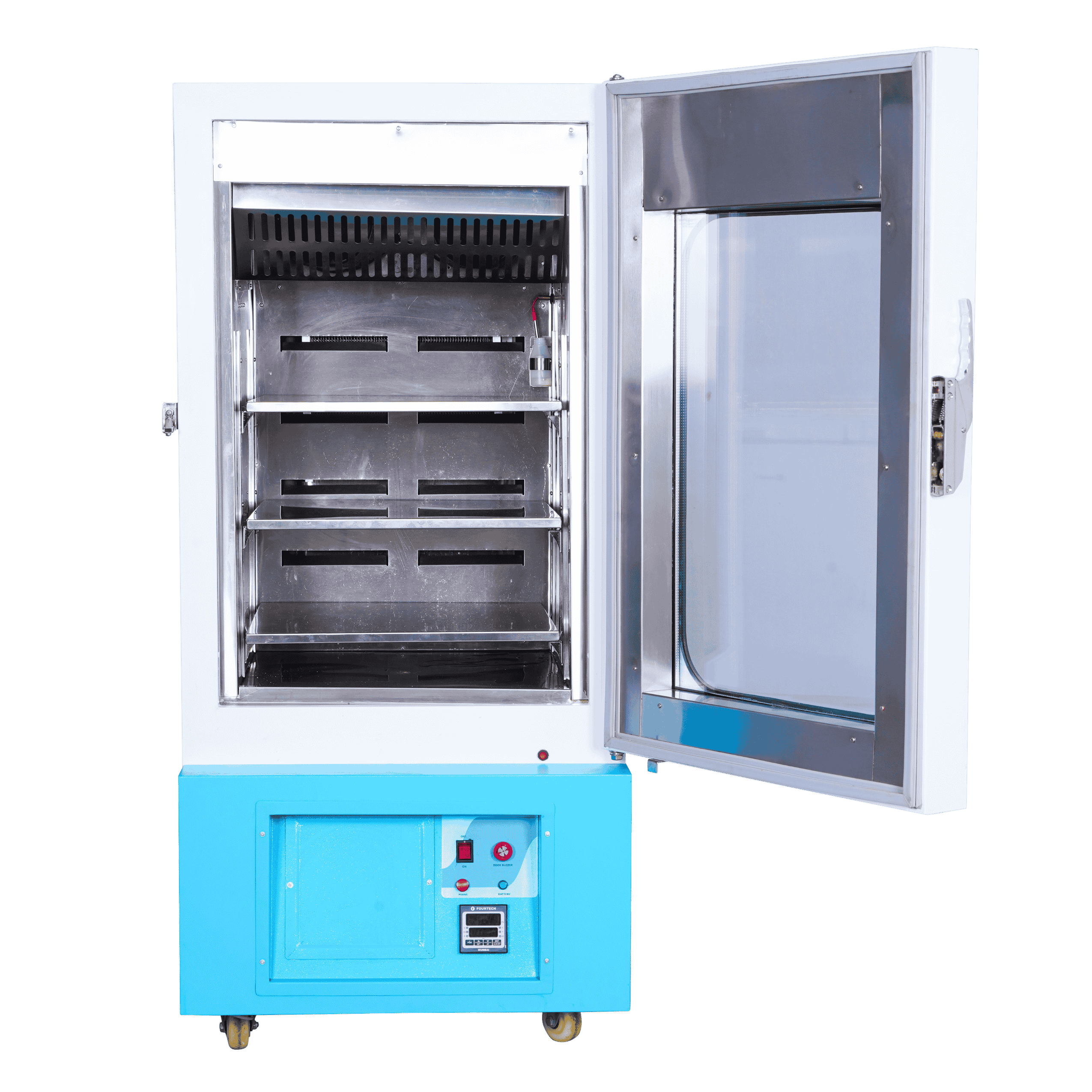

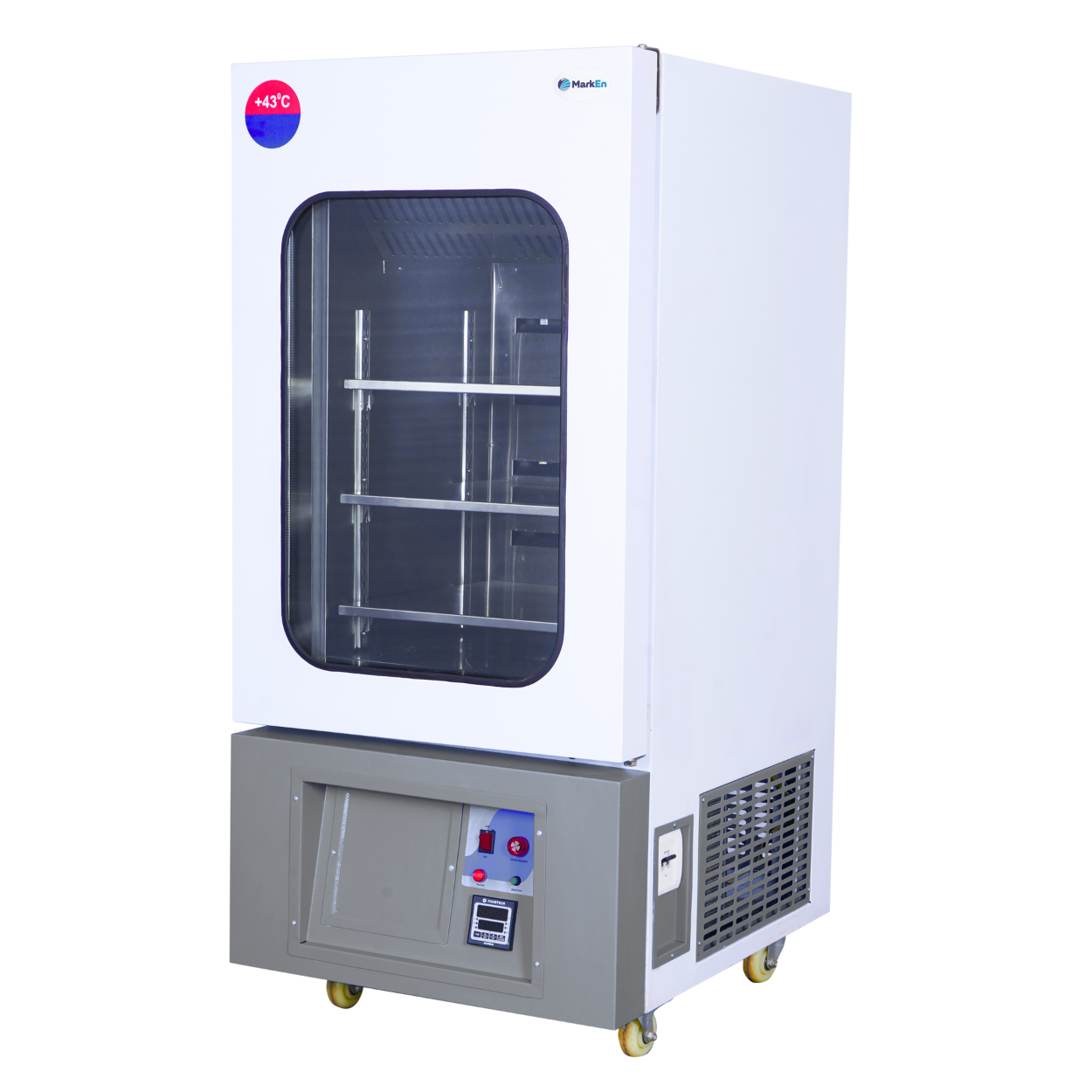

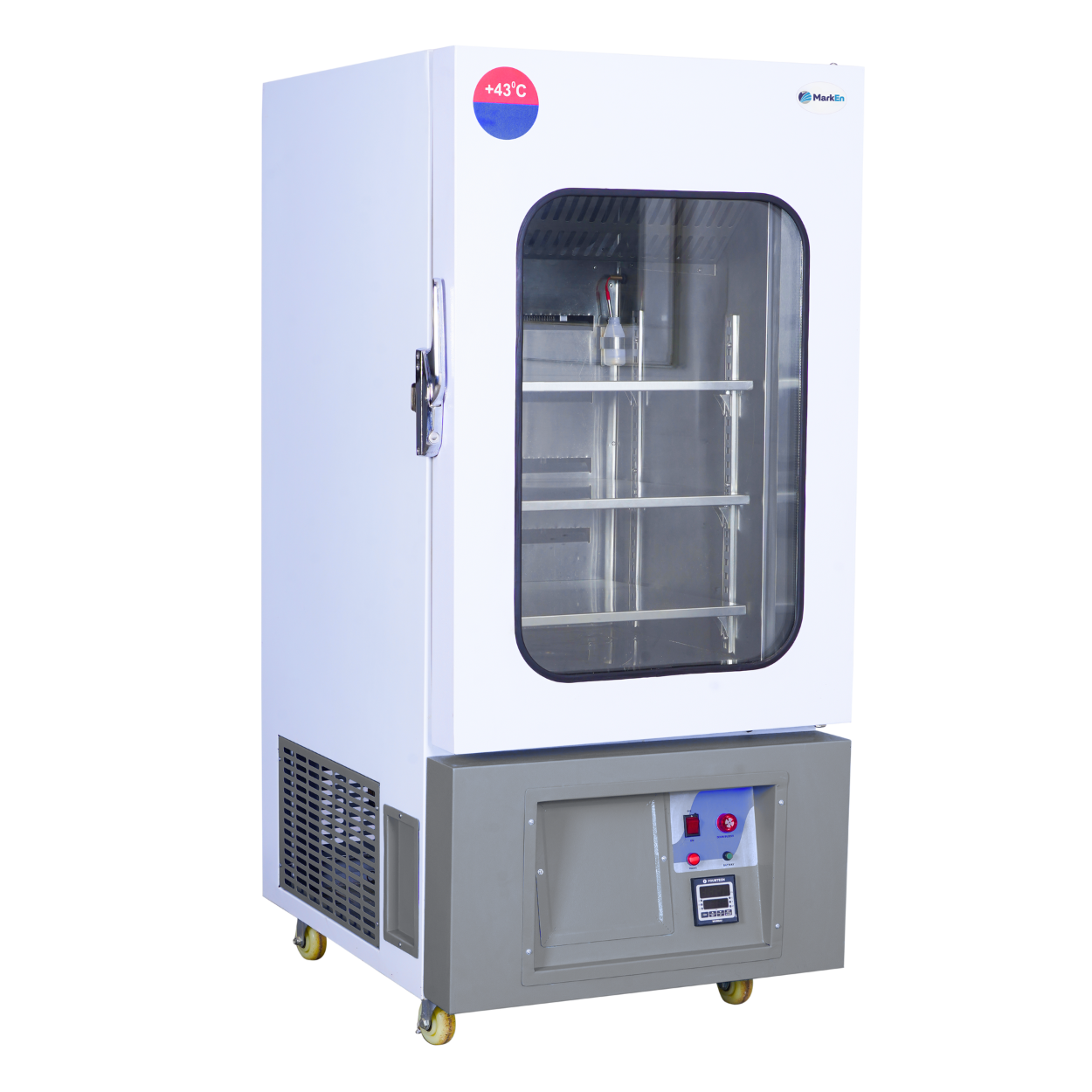

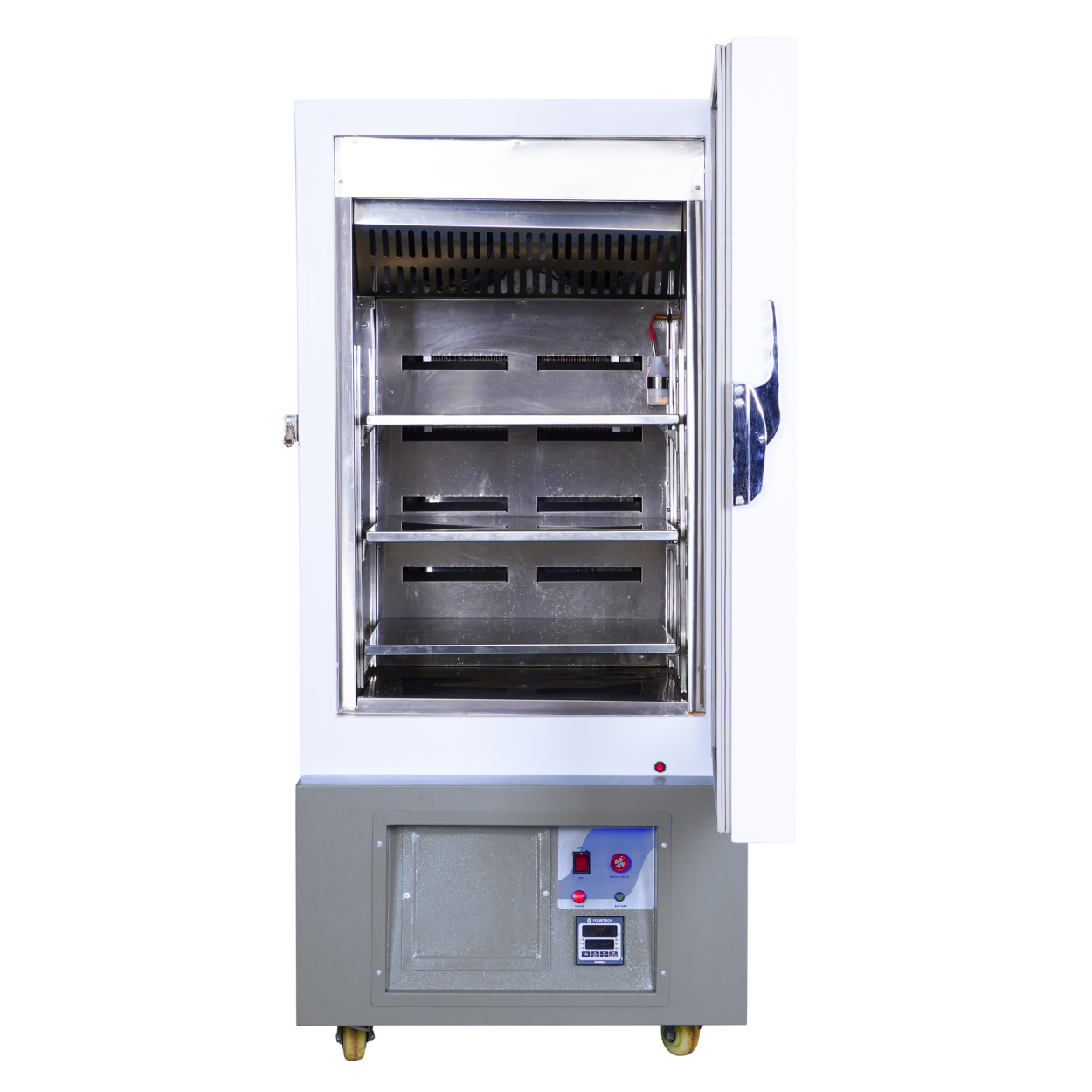

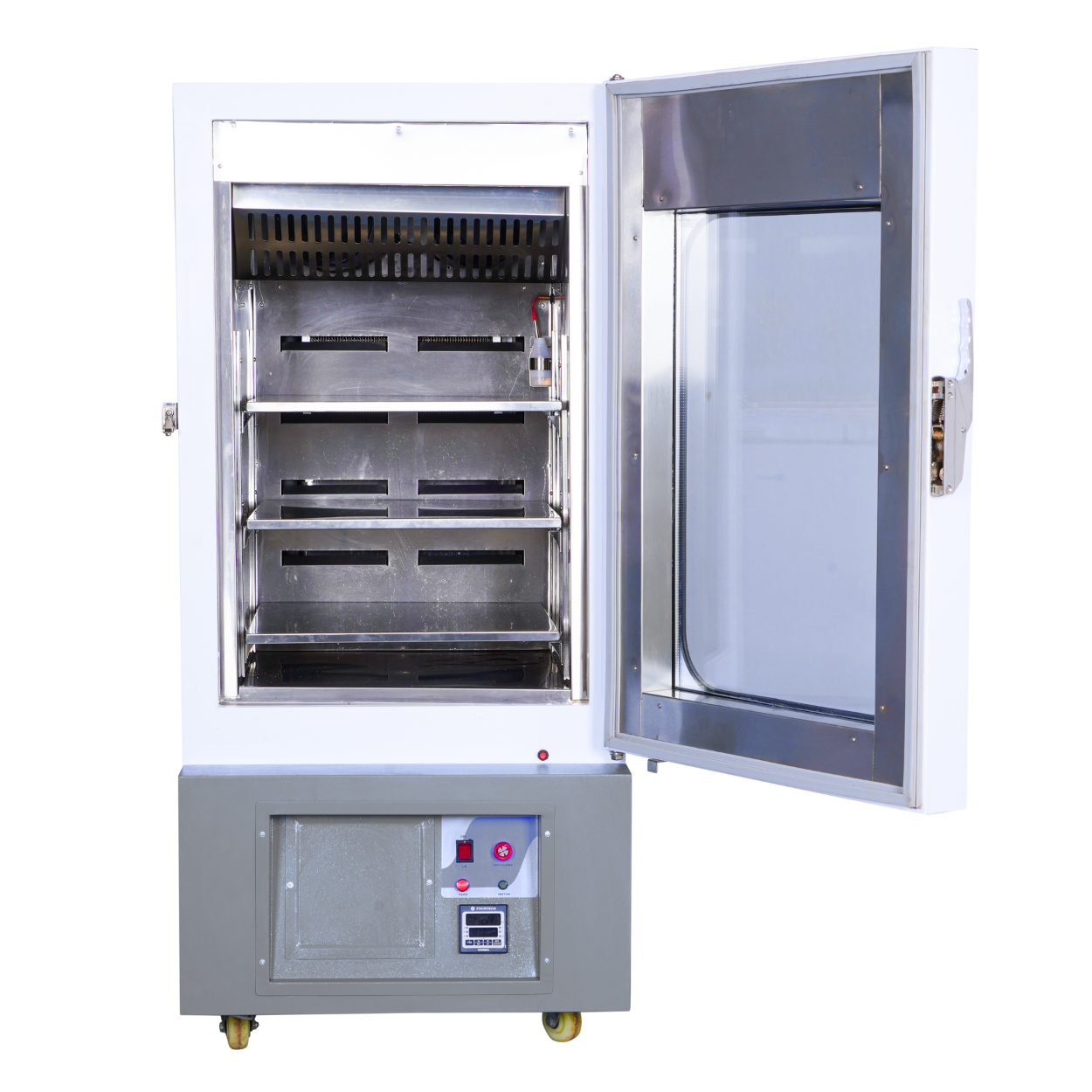

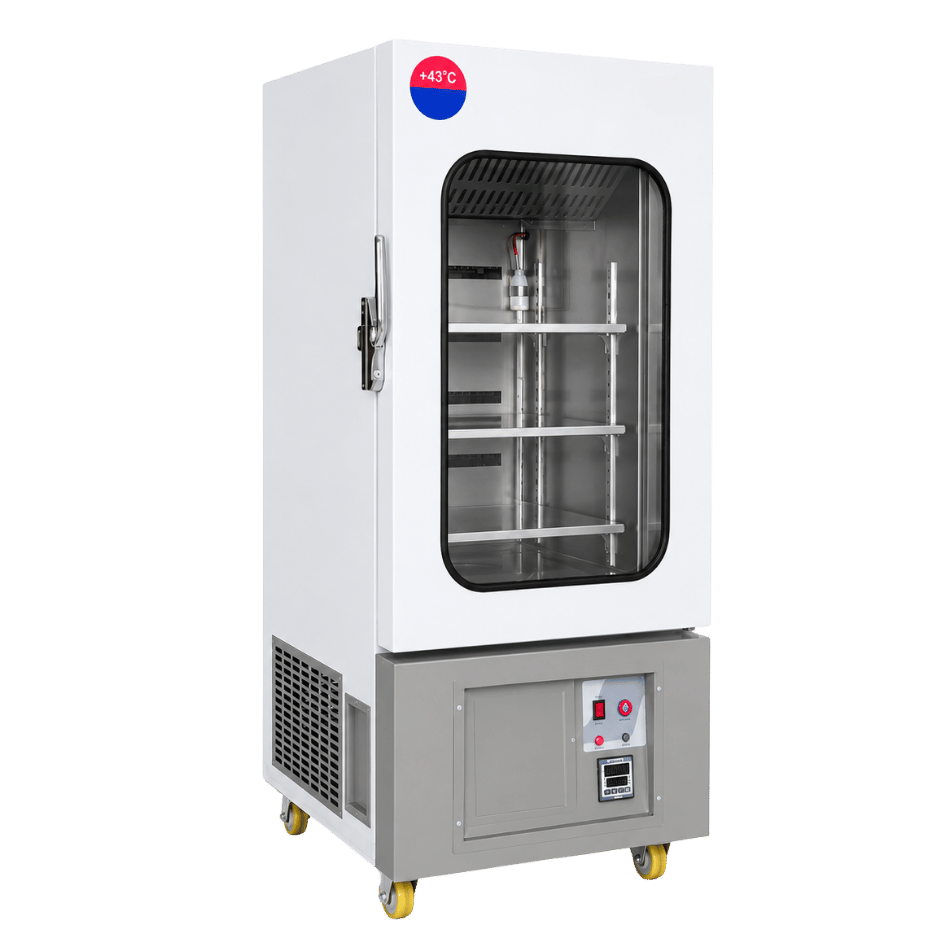

Laboratory Refrigerator
Laboratory Refrigerators provide reliable, uniform temperature control for safe storage of pharmaceuticals, vaccines, medicines, and other sensitive products — trusted by research labs, hospitals, and pharmaceutical industries.
Ergonomic & Secure Design
Key-locked glass door ensures clear visibility while preventing unauthorized access.
Tropical Climate Ready
Operates in temperatures from -10°C to +45°C, maintaining a stable storage temperature of +2°C to +8°C.
Enhanced Safety & Security
Programmable alarms and password protected control panels prevent tampring and accidental changes
Premium Build Quality for Long-Term Performance
99.97% pure copper tubing ensures exceptional durability and superior cooling efficiency.
Forced-Air Cooling System
Finned evaporator ensures fast temperature recovery and frost free consistent cooling performance.
Convenient Interior Lighting
Built-in fluorescent lights provide clear visibility, making stored items easily accessible even in low-light conditions.
|
Cabinet Type |
Vertical / Upright |
|
|
Outer Body |
Mild steel /GI powder coated steel (18swg) |
|
|
Inner Chamber |
Stainless Steel 304 for Durable unbreakable construct |
|
|
Insulation |
PUFF Insulation-CFC free |
|
|
Insulation Thickness |
Cabinet: 75 mm |
Door: 50 mm |
|
Castors Wheels |
4 castor wheels (2 Lockable and 2 un-lockable) for free mobility |
|
|
Ground Clearance |
100mm |
|
|
Door |
Glass Door with Handel and Key Lock |
|
|
Inner Door |
Separate acrylic sheet inner door which prevents cold air loss during door opening |
|
|
Compressor |
Hermetically sealed compressor |
|
|
Refrigerants |
CFC-HCFC-Free non flammable R134a refrigerants |
|
|
Condensing |
Force Air Circulation |
|
|
Temperature Range |
+2°C to +8°C adjustable |
|
|
Temperature Accuracy |
+0.1°C |
|
|
Temperature Sensor |
PT100 |
|
|
Environmental Conditions |
Maximum -10°C to +45°C with Humidity 5% to 95% |
|
|
Pull Down Time |
8 hrs. when refrigerator is fully loaded. |
|
|
Holdover Time |
1.5 hrs. |
|
|
Control System |
Fully programmable microprocessor controlled with membrane keypad and Password Protected |
|
|
Display |
TFT Touch Screen Digital Temperature Display |
|
|
Alarms |
Audible and visual alarm system for adjustable over-under temperature, sudden power failure, and battery low, Door open |
|
|
Battery Backup |
12 hrs. Battery Backup for Digital Display, Total Alarm system, Temp. recording system with auto recharging facility |
|
|
Temperature Monitoring System (Optional) |
Data logger with printing system and Inkless temperature chart recorder |
|
|
Noise Level |
<55 dBA |
|
|
Power Protection |
MCB fitted in input Power Line |
|
|
Power supply |
220-240V AC, 50Hz single phase AC power supply |
|
|
Accessories |
Servo Voltage Stabilizer, SS Shelves, Stem Alcohol Thermometer |
|
