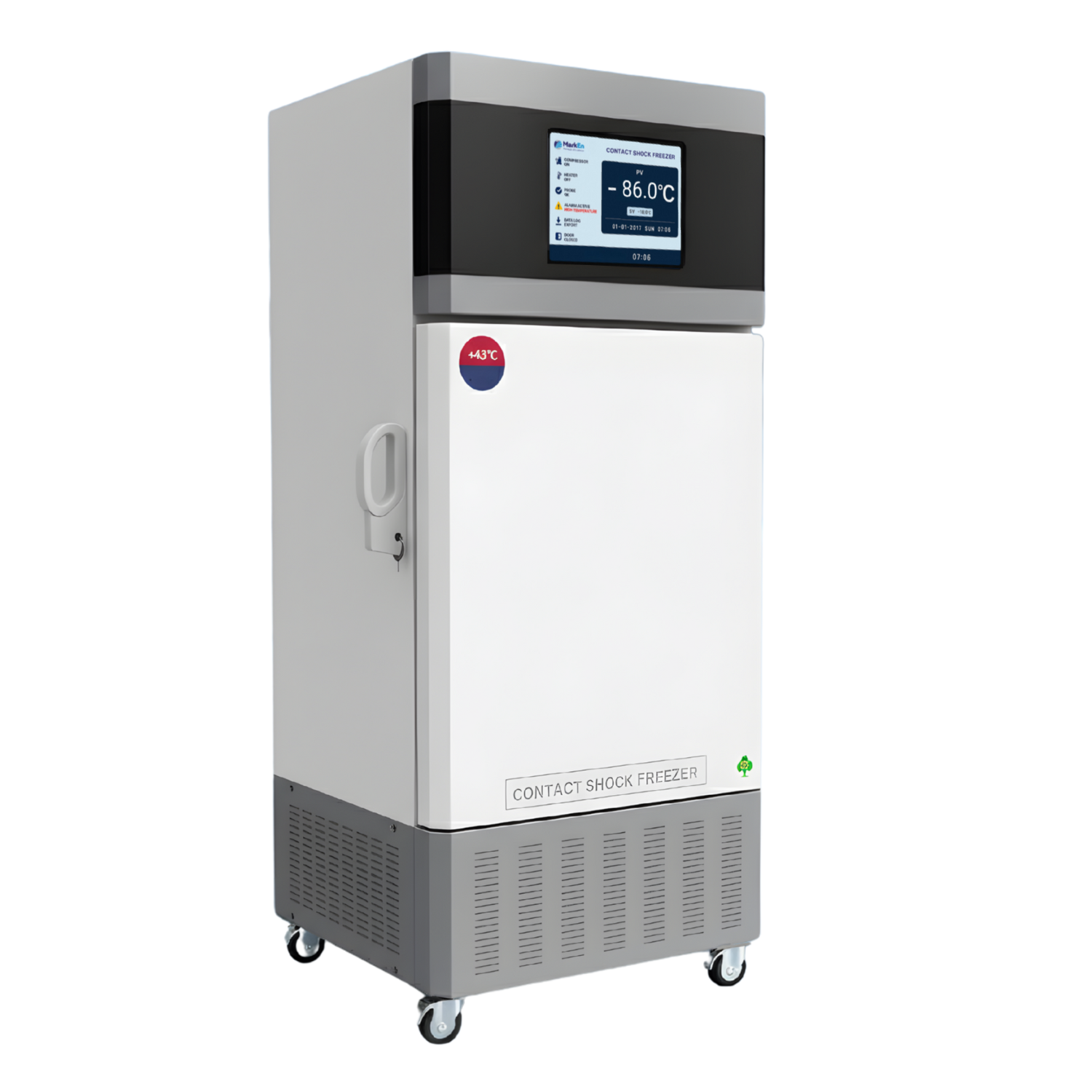

Contact Shock Freezer
Contact Shock Freezer is expertly designed for fast and efficient freezing of plasma and biological samples, ensuring product integrity through precise temperature control and advanced thermal exchange technology. Engineered for high throughput and durability, it delivers rapid freezing performance with user-friendly controls and long-term operational reliability.
Rapid Freezing Capability
Freezes 450ml plasma bags in under 45 minutes, preserving sample quality.
Wide Temperature Range
Maintains consistent freezing from –40°C to –80°C for versatile applications.
Advanced Thermal Exchange System
Efficient heat transfer for faster cooling and energy optimization.
Touchscreen HMI Control Panel
Intuitive LCD interface for precise temperature monitoring and program adjustments.
Flexible Defrost Modes
Offers both automatic and manual defrost options for operational convenience.
Robust Airtight Sealing
Triple-point gasket design minimizes ice build-up and maintains internal temperature.
Type of Cabinet | Vertical | |
Color | White | |
Outer Boby Material | Corrosion resistance AISI Heavy Gauge Stainless Steel 304 | |
Inner Cabinet Material | Corrosion resistance AISI Heavy Gauge Stainless Steel 304 | |
Insulation Material | Water Blown CFC free Vacuum PUFF | |
Insulation Thickness | Cabinet : 127 mm ± 5 mm | Door : 127 mm ± 5 mm |
Ground Clearance | 100 mm | |
PUF Density | 42 Kg/m³ | |
Castors Wheels | Solid cabinet casing constructed from high-grade stainless steel to prevent corrosion, Fitted with smooth lockable castor wheels for mobility. The unit includes 4 castor wheels (2 Lockable and 2 un-lockable) | |
Door | Solid counterbalanced door with a lock-and-key handle, along with one inner door. | |
Inner Shelves | 4/6/8 aluminum contact blast shelves provided with inner door. | |
Compressor | Hermetically sealed compressor with air-cooled refrigeration system. | |
Refrigerants | CFC/HCFC-free, non-flammable, eco-friendly refrigerants. | |
Condensing | Skin condenser and air-cooled grooved aluminum fins. | |
Operating Temperature Range | -50°C to -86°C adjustable with setting accuracy +0.1°C | |
Rapid Freezing of Plasma Bags | -50°C or below within 30 minutes at 25°C ambient temperature. | |
Cooling Plate Temperature | Upper Plate: -86°C & Lower Plate -86°C | |
Pre-Cooling Temperature | Upper Plate: -50°C Lower Plate: -50°C | |
Pull down time | Less Than 60 minutes | |
Hot Gas Defrosting | Less Than 10 minutes | |
Temperature uniformity | ±3˚C or Less | |
Environmental Condition | Maximum +43°C with Humidity 5% to 95% RH | |
Control System | Fully programmable microprocessor control with membrane keypad and password-protected, eye-level control panel. | |
Temperature Monitoring System | Real-time central monitoring with IoT (cloud-based management) support (optional) and chart recorder (optional). Supports up to 8 PT 100 channels with a USB port for cycle/coding history and an external printer interface (non-thermal).Real Time Monitoring through app-based software on mobile phone. | |
Internal Configuration | The internal case has 6 wells | |
Display | 10”/13” touchscreen display showing top and bottom plate temperatures, freezing process, and timing, along with additional features. | |
Alarms (with recording facility) | Audible and visual alarm systems for over- and under-temperature conditions, power failures, system malfunctions, door openings, and low battery levels. Includes power failure alarm, phase error alarm, and audio alarms with timer function. | |
Battery Backup | 12-48 hours of battery backup for digital display, internal temperature monitoring, total alarm system, and temperature recording system, all with an automatic recharging facility. | |
Noise level | <55 db | |
Power Consumption | Stable Running : 2.040 kWh/24Hrs Cool Down Test : 2.30kWh/24Hrs. | |
Power supply | Suitable for Input Voltage Range 100 to 290 VAC, 50 Hz +10% | |
