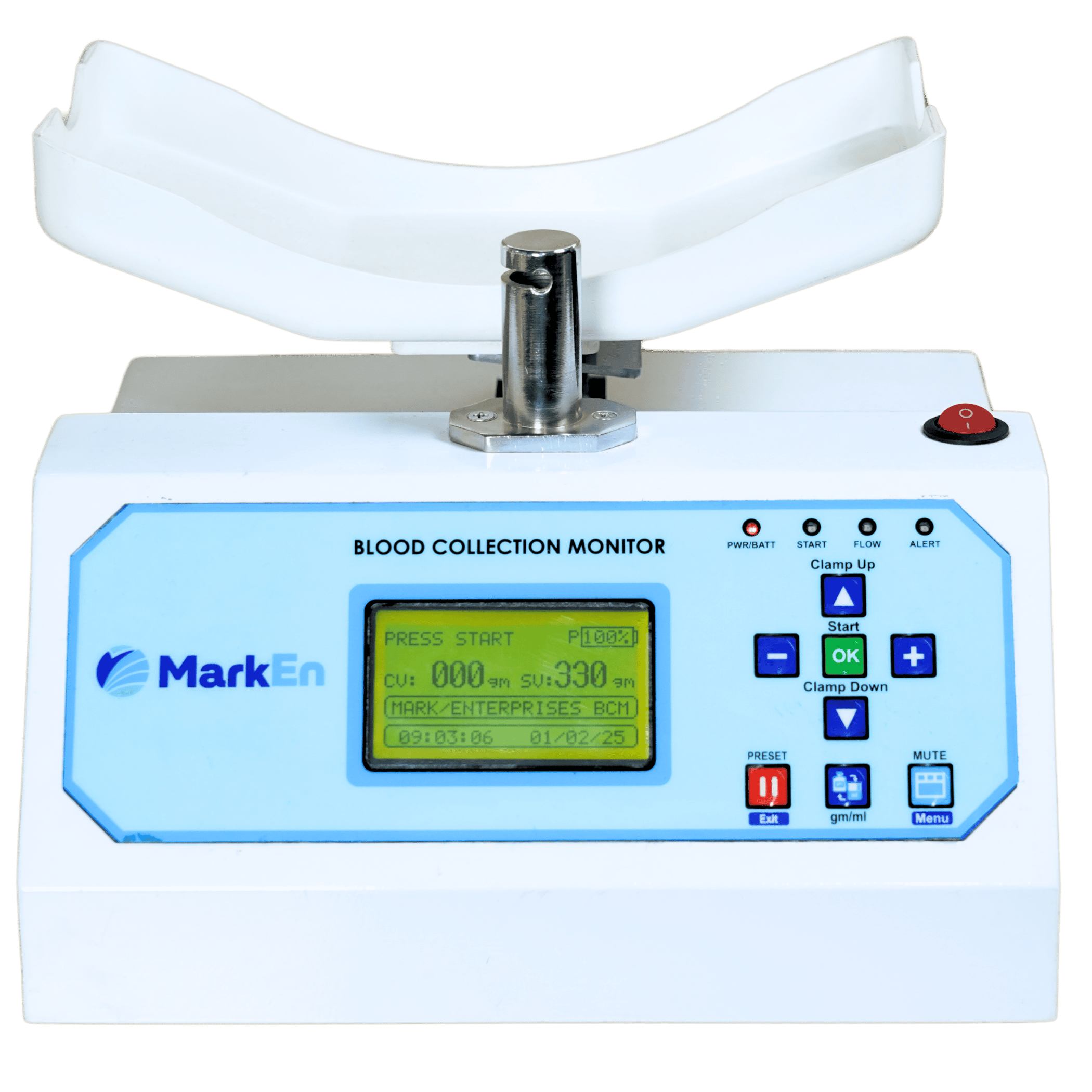

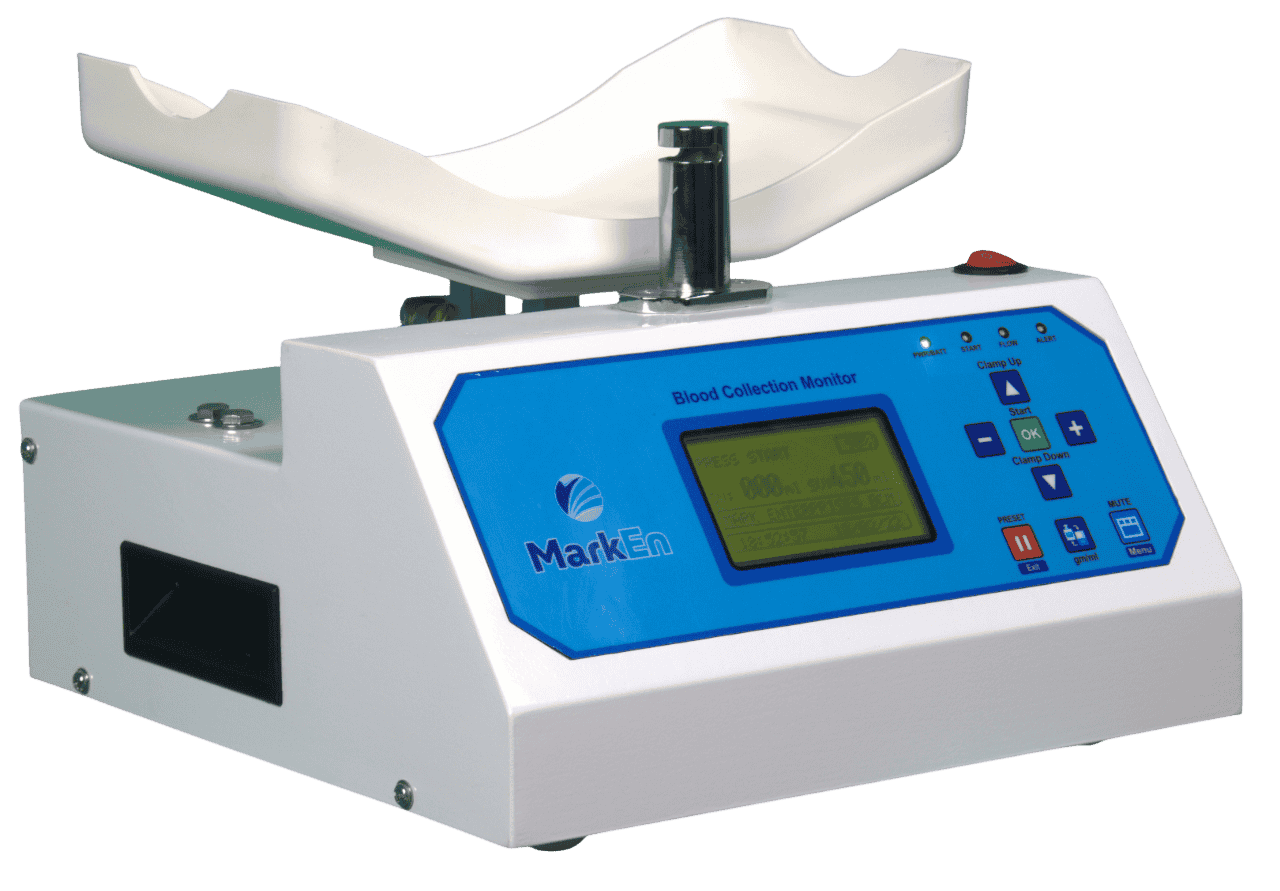

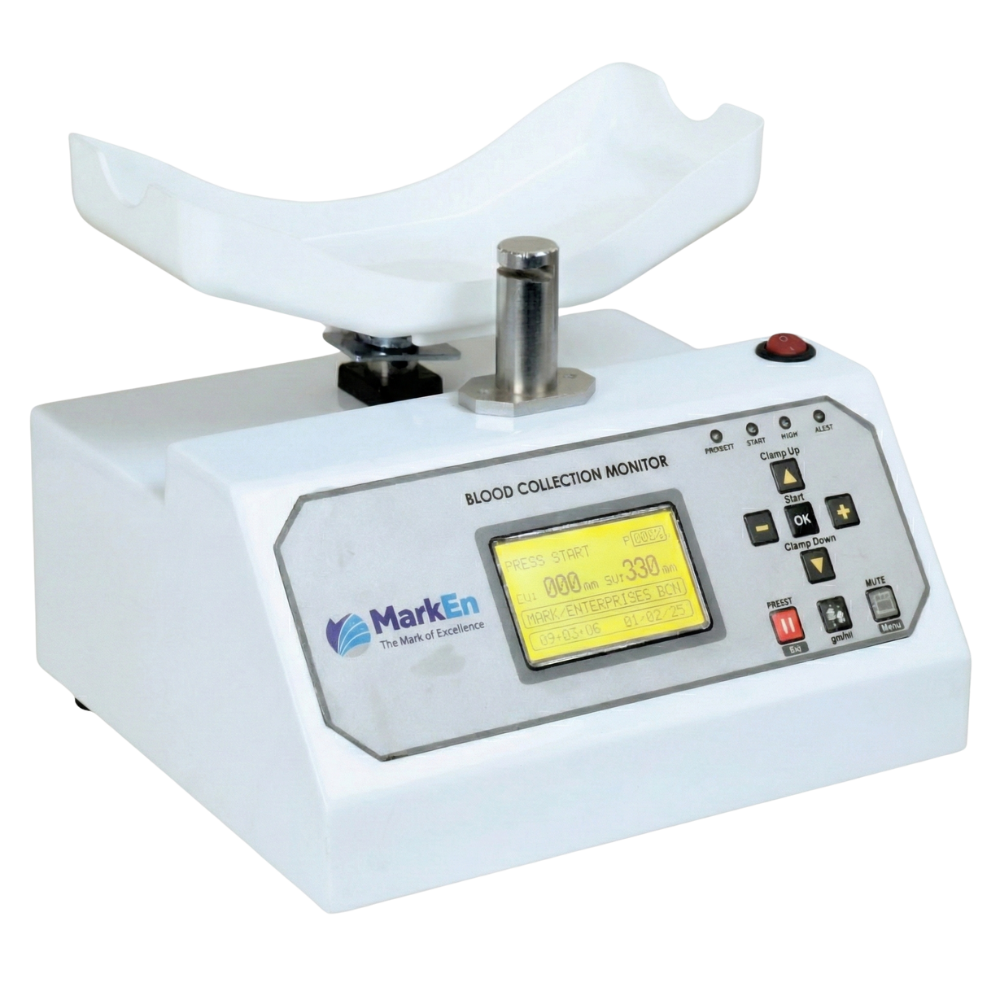

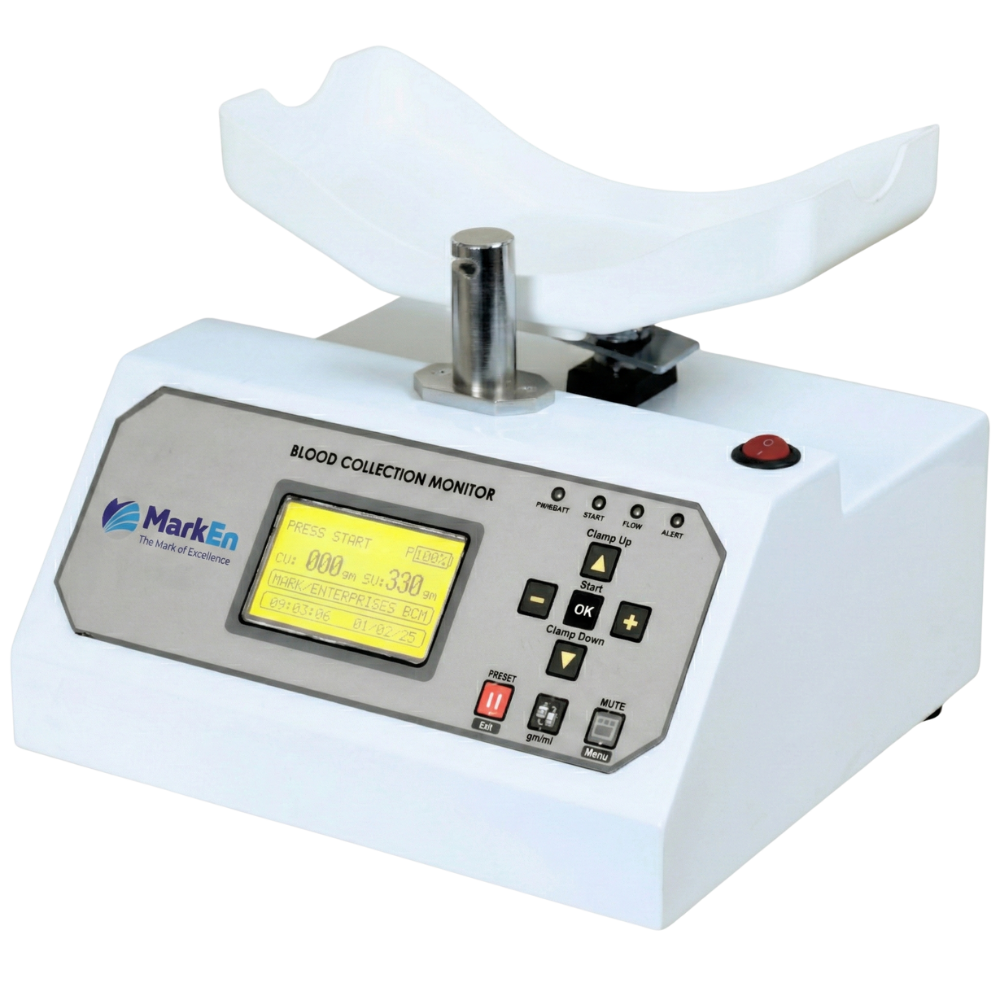

Blood Collection Monitor
Blood Collection Monitor is a smart, safety-enhanced device designed for accurate and hygienic blood collection across mobile and clinical setups. With less than 1% deviation in measurement, it ensures volume precision, operator ease, and donor safety, supported by a durable build and intelligent alarms for real-time control.
Advanced Microprocessor Control
Ensures precise monitoring & real-time adjustments for optimal blood collection.
Universal Bag Compatibility
Works with all types of blood donor bags, making it a versatile solution for blood banks and hospitals.

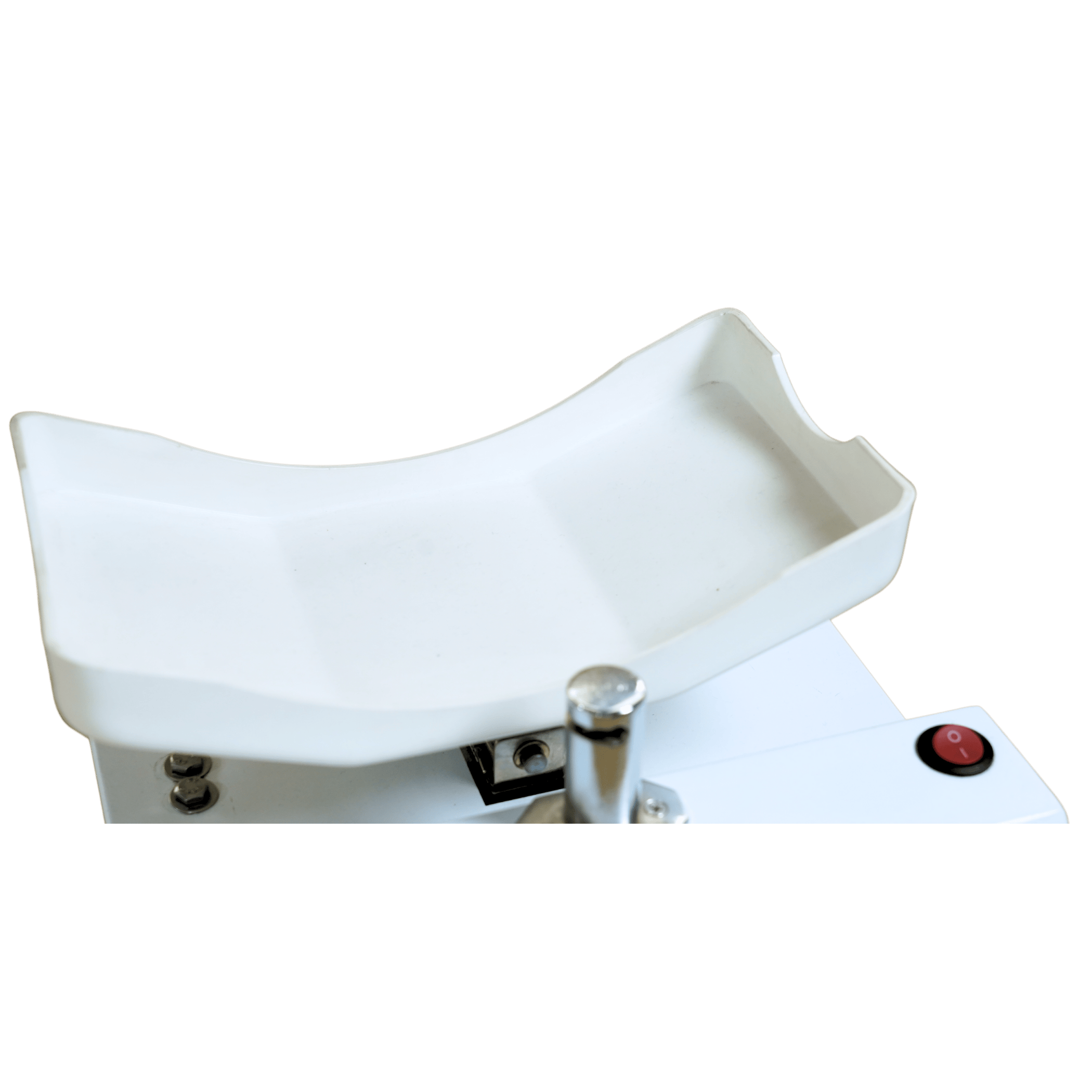

Efficient Mixing System
Automatic blood-anticoagulant mixing prevents clot formation, ensuring safe & high-quality blood collection.

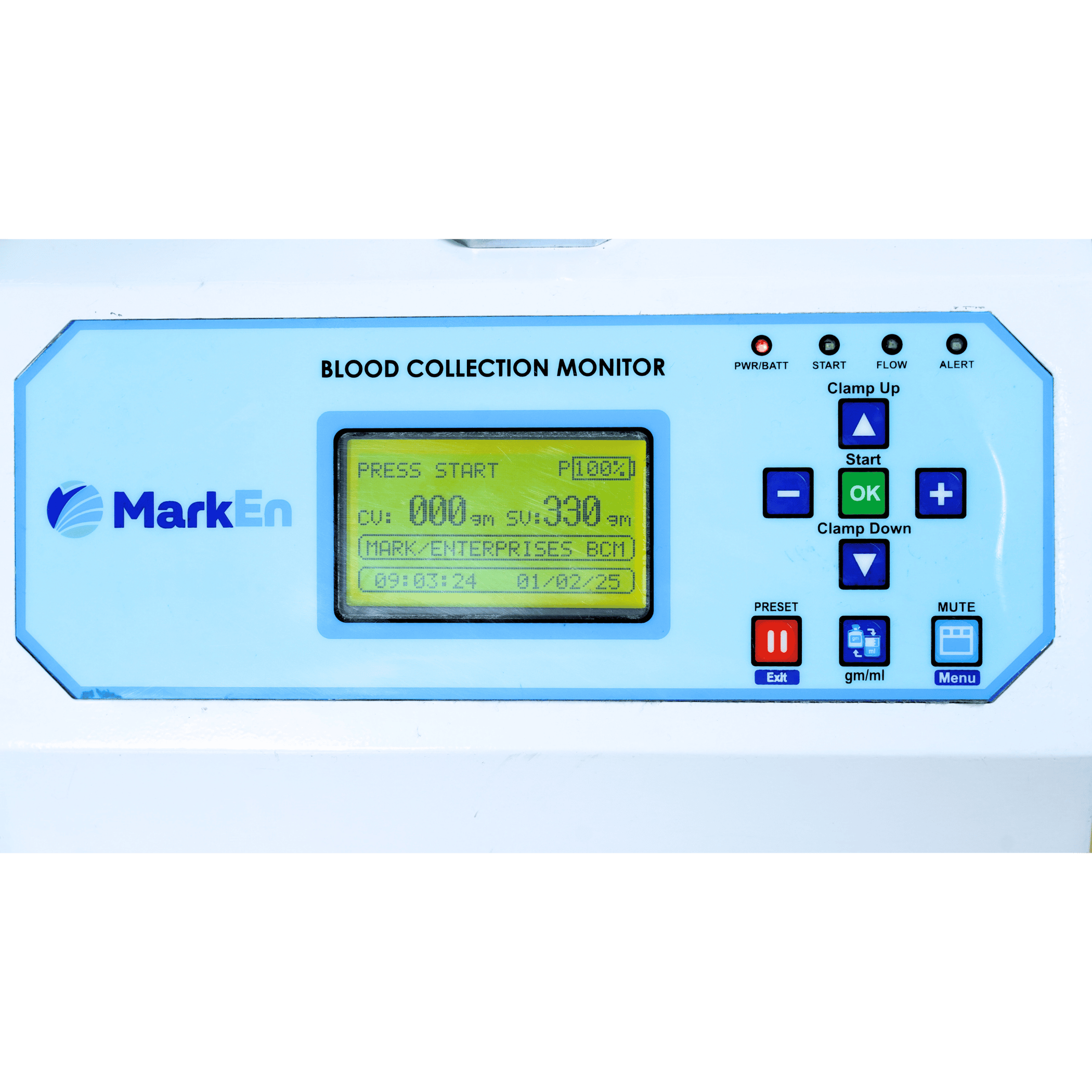

Large Touchscreen Display
User-friendly interface displaying real-time donation time, collected volume, and average flow rate for enhanced control and accuracy.
Automated Clamping & Alarm System
Auto-clamps tubing at donation completion with audible & visual alarms, ensuring precise cut-off & safety.
Data Storage & Easy Recall
Stores up to 1,000 donation records, allowing for quick retrieval, analysis, and troubleshooting.
|
Make |
MarkEn |
|
Weighing Range |
0 g/ml to 1000 g/ml (1 g step) with accuracy >1% |
|
Battery |
7.5V DC - 55Wh for extended battery backup |
|
Oscillation Details |
16 - 20 ± 2 rpm, motor-driven oscillation |
|
Clamping Mode |
3-state clamp: Open, Lock, Closed with Automatic facilitated clamp option and active clamp check |
|
Volume Setting |
Adjustable in steps of 1 ml/5 ml/10 ml, automatic storage of set volume, continuous display of set and current volume |
|
Auto Tare |
Manual/Automatically calibrates the weight each time the Start Button is pressed |
|
Alarms/Indications |
- Visual and Audible alarms for no blood flow, end of collection, - Pause function, battery low indication, sensor Failures, abnormal condition warning, |
|
Dimensions (mm) |
270 x 280 x 140 |
|
Weight |
4.8 kg |
|
Real-Time Clock (RTC) |
Built-in Real-Time Clock |
|

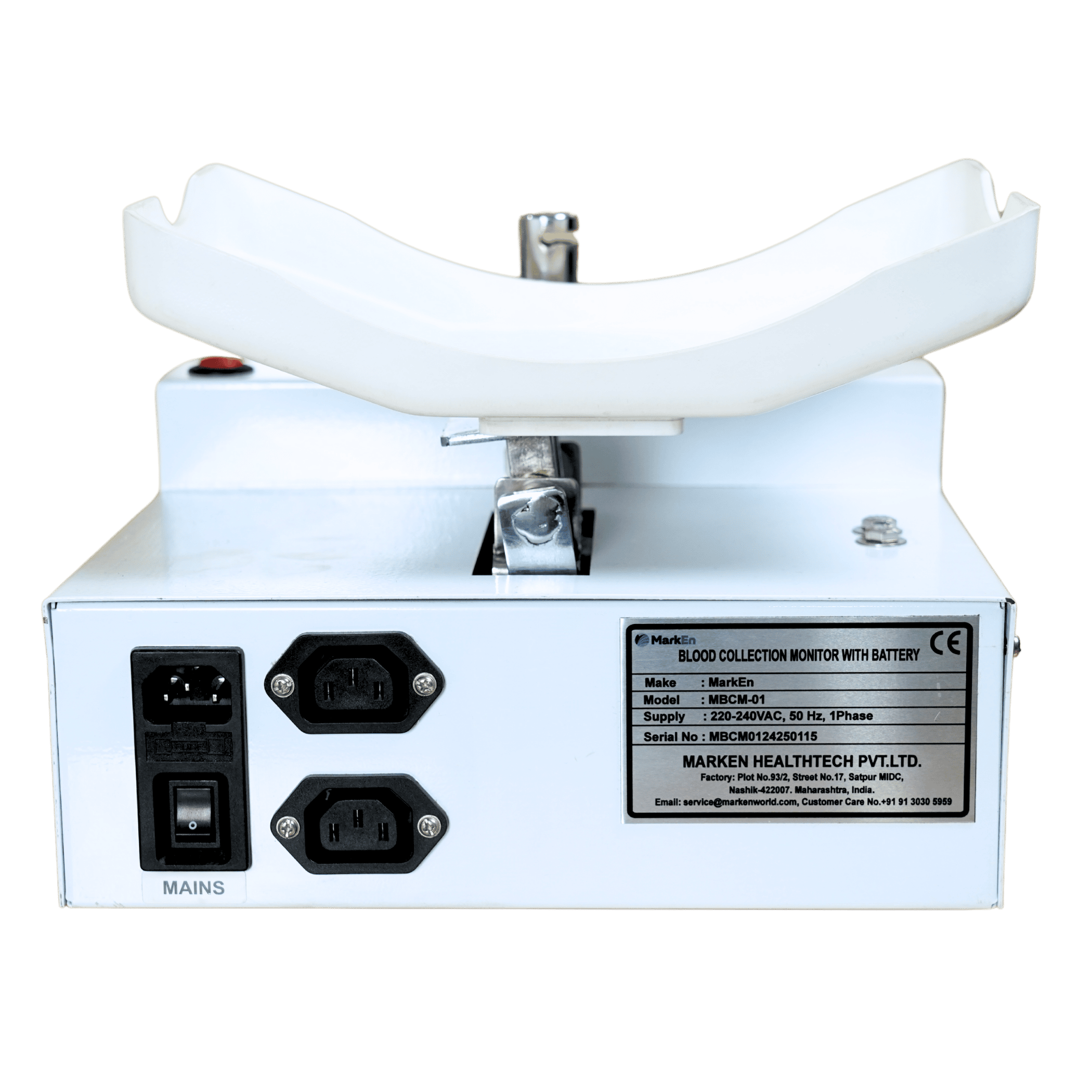

Data Connection |
Wireless/RS-232 port/Ethernet for bi-directional data transfer; USB drive compatibility |
|
Power Consumption |
6 W (Maximum) |
|
Input Voltage |
100-250 V AC, 50/60 Hz, ±10% |
