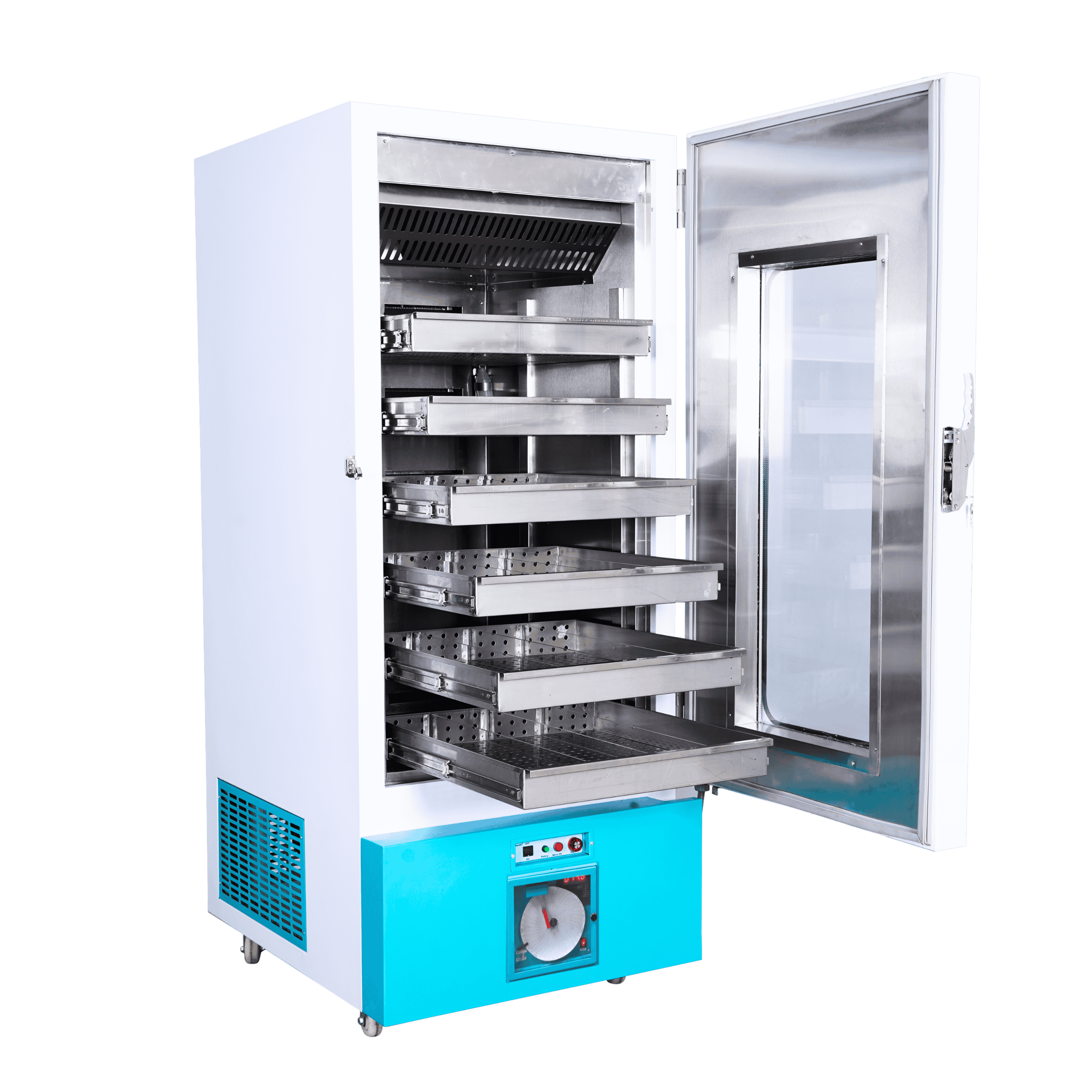

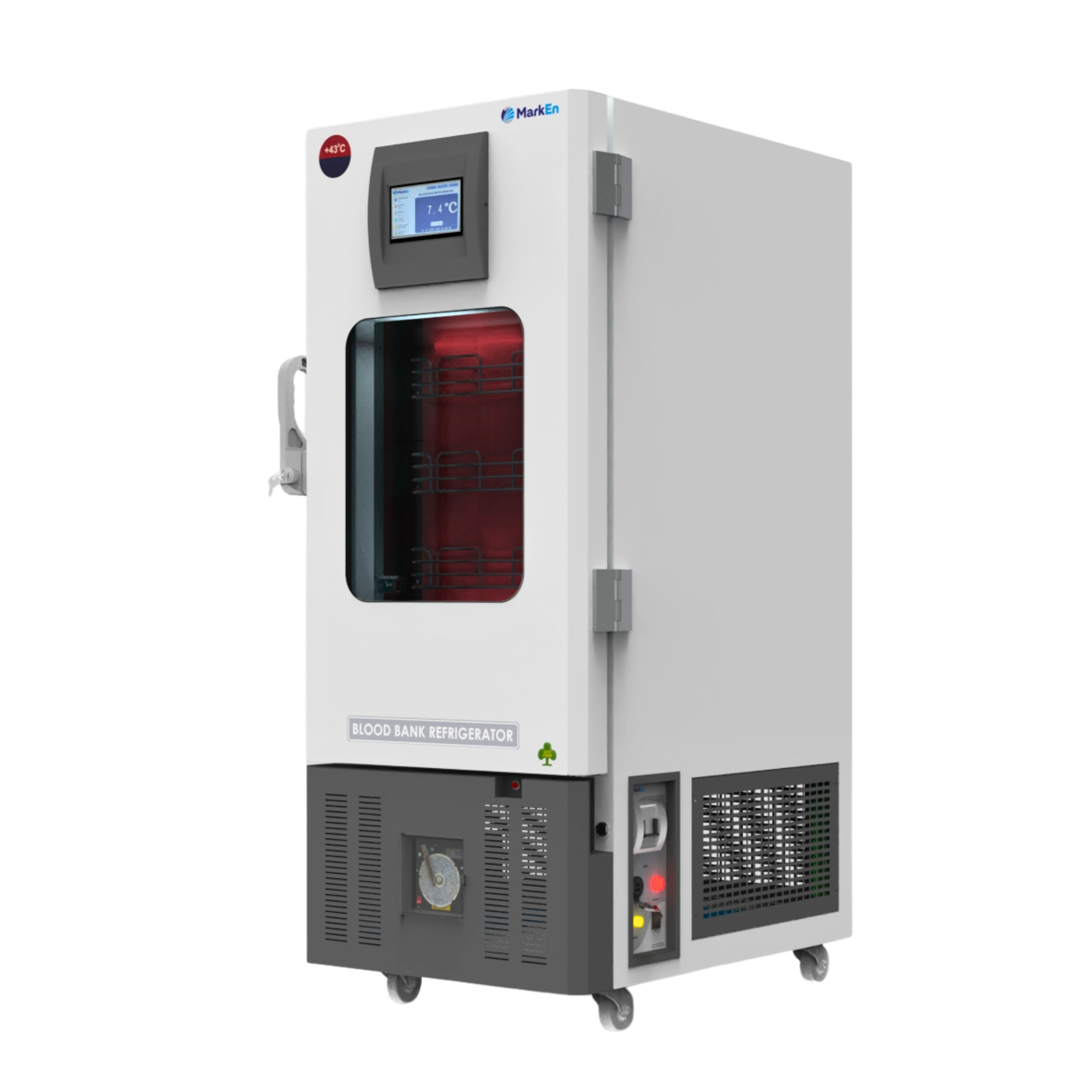

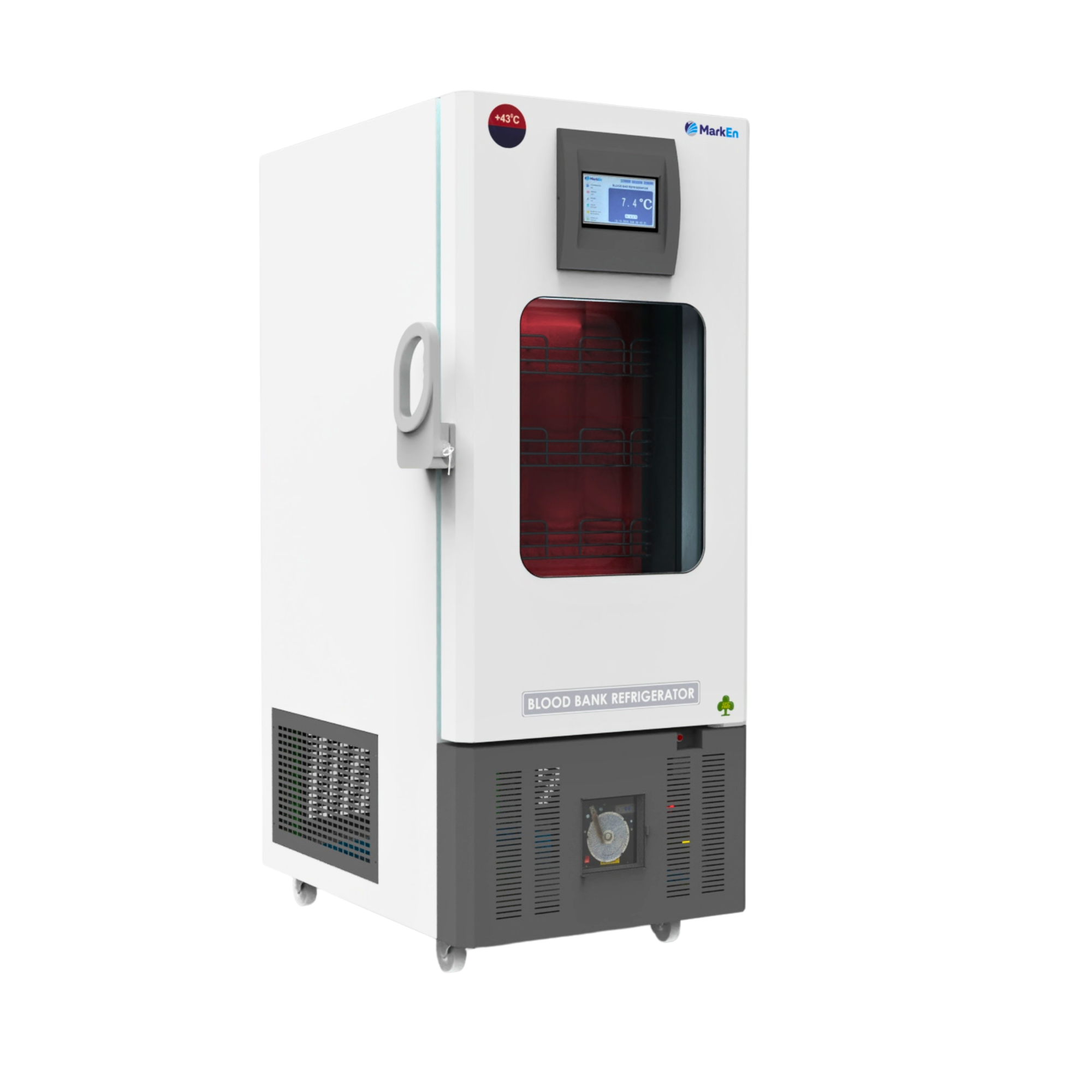

Blood Bank Refrigerator
Blood Bank Refrigerators deliver unmatched performance, precise temperature control, and exceptional reliability for preserving critical blood components. Engineered with advanced microprocessor technology and a high efficiency compressor, they ensure rapid cooling, quiet operation, and industry-leading uniformity — making them the ideal choice for blood banks, hospitals, and research facilities.
Fully Automatic Operation
Integrated automatic functions for seamless and efficient blood storage management.
Medical-Grade Compliance
Engineered to meet strict medical safety standards for secure and reliable blood preservation.
Customizable Design
Tailor-made solutions available to accommodate specific client requirements for added functionalities.
Robust & Durable Construction
Built with corrosion-resistant CRCA steel and stainless steel, ensuring long-lasting reliability.
Advanced Temperature Control
Microprocessor-based system ensures precise temperature regulation, complemented by a 7-day chart recorder for continuous monitoring.
Multiple Capacity Options
Available in various sizes, accommodating 56 to 375 blood bags, catering to small, medium, and large storage needs.
|
Make |
MarkEn |
|
|
Outer Cabinet |
Corrosion resistance CRCA/GI powder coated steel |
|
|
Inner Cabinet |
Corrosion free Stainless Steel 304 (22G) sheet |
|
|
Insulation |
CFC-free PUFF Insulation |
|
|
Insulation Thickness |
Cabinet: 80-100 mm |
Door: 80-100 mm |
|
Ground Clearance |
4 castor wheels (2 Lockable and 2 un-lockable) for free mobility. |
|
|

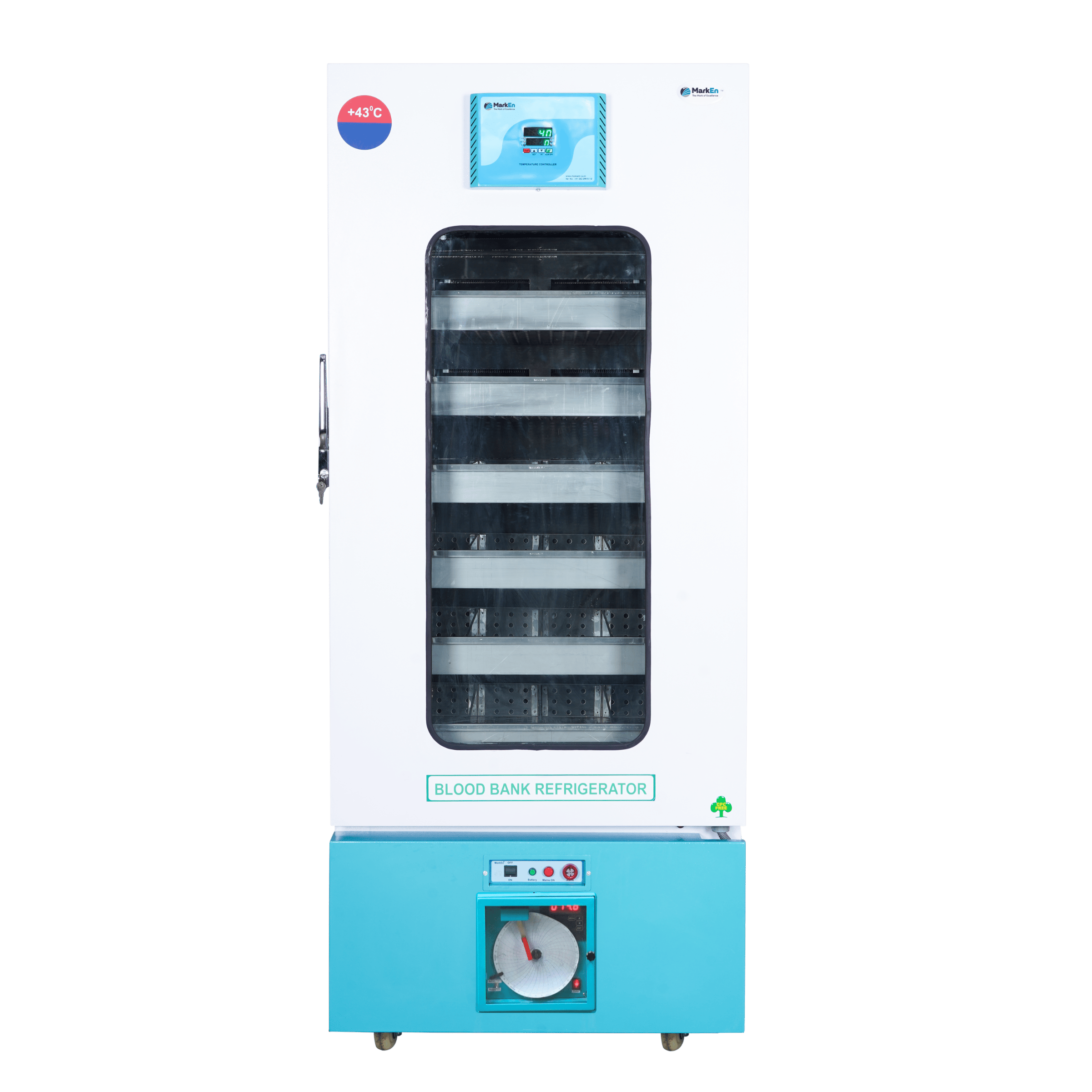

Door |
Triple-pane, automatic-closing glass door with a handle and latch assembly for easy operation, featuring a standard key lock and a provision for a padlock. |
|
|
Inner Acrylic Door (Optional) |
A separate acrylic sheet inner door designed to prevent cold air loss during door openings. |
|
|

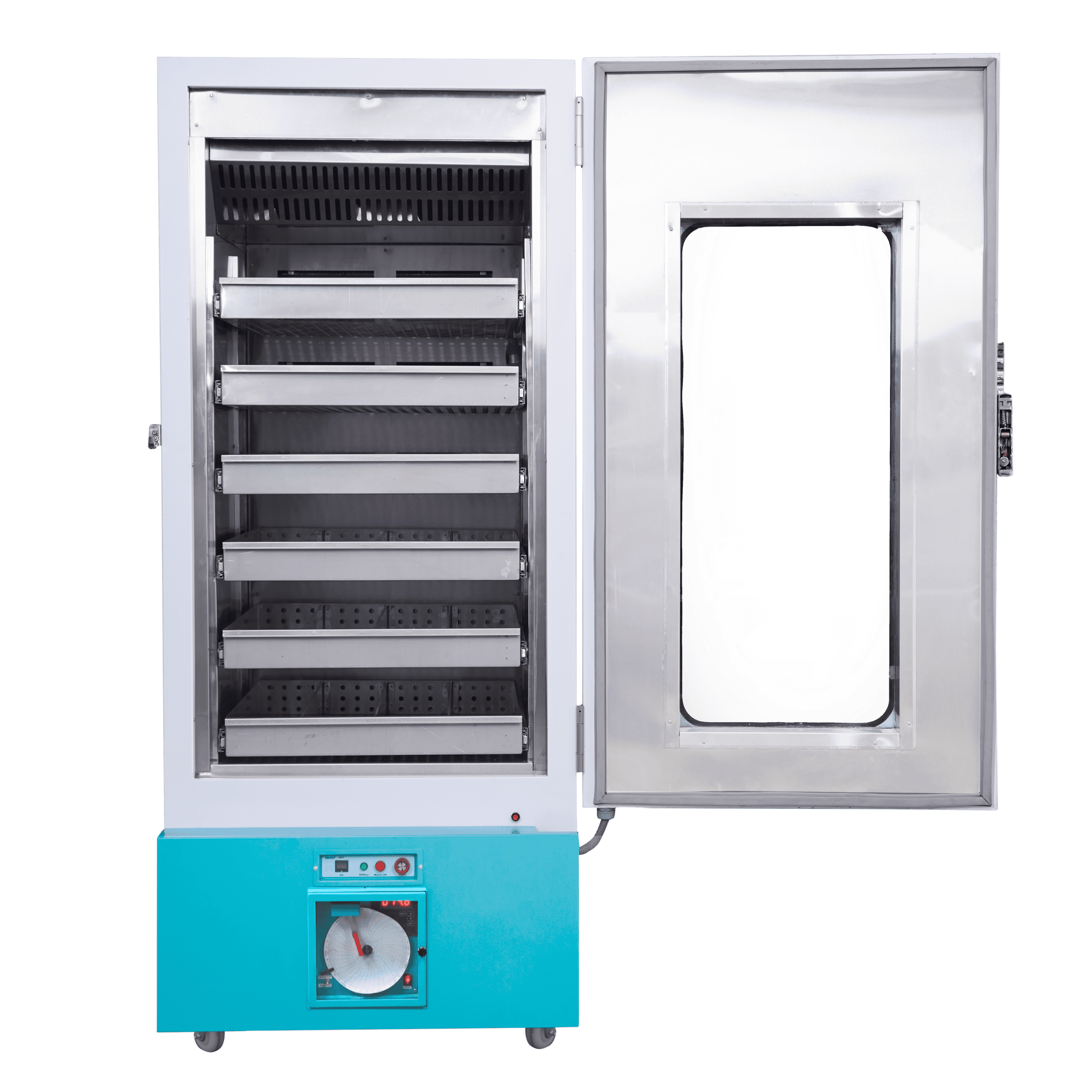

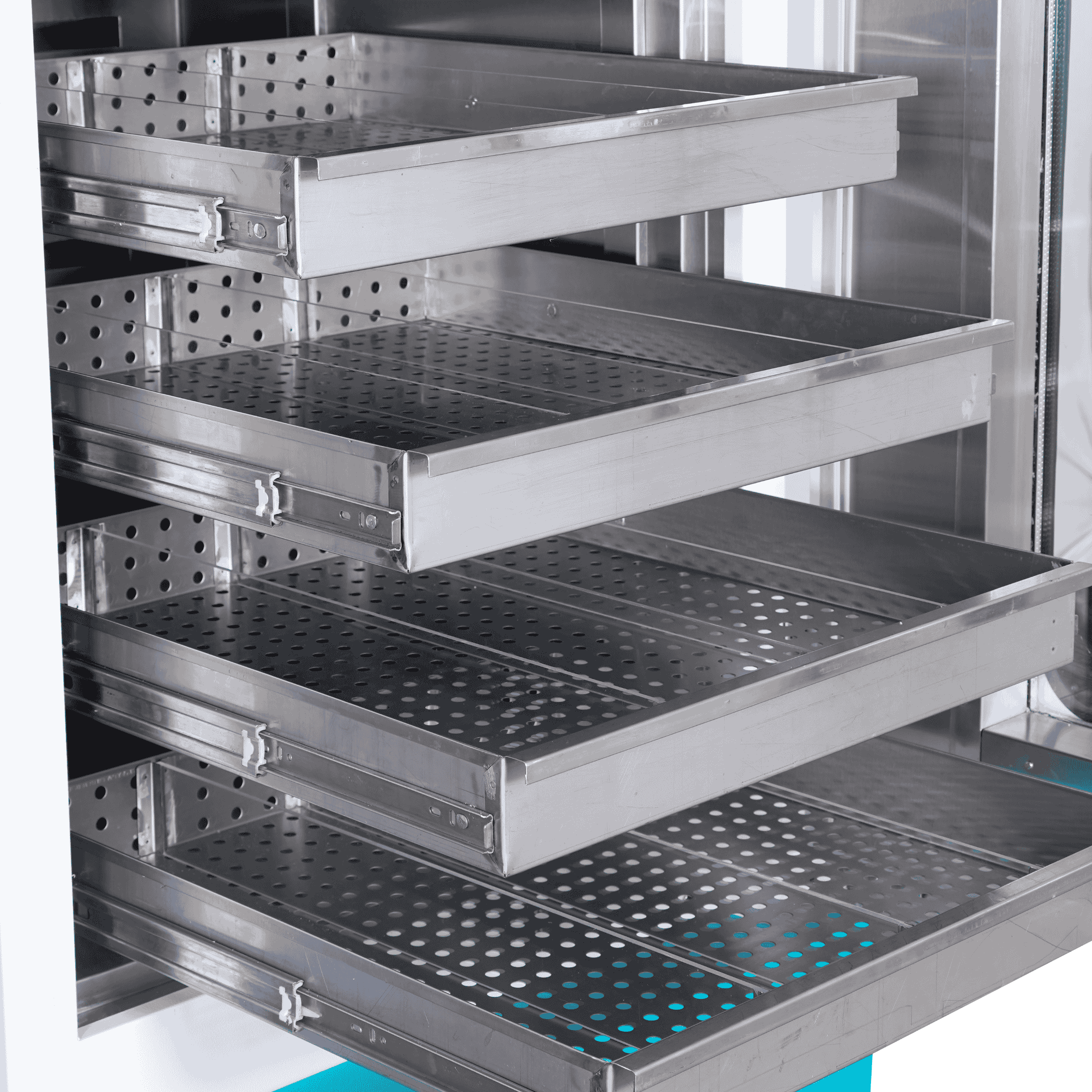

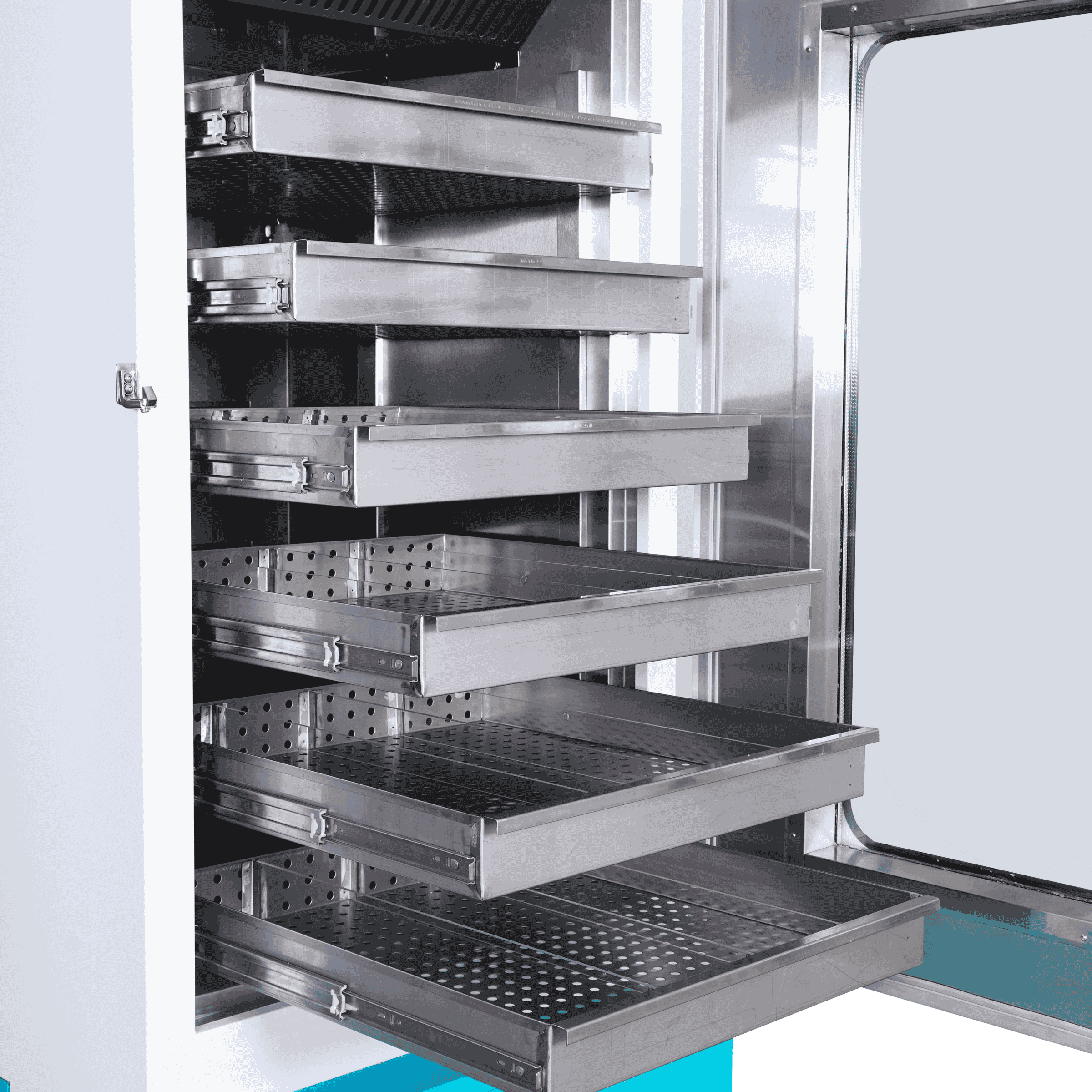

Tray Type |
Roll-out, adjustable perforated trays made of SS 304, featuring scratch-resistant surfaces and acrylic separators to securely hold bags in a vertical position. |
|
|
Compressor |
Hermetically sealed, industrial-grade, highly efficient, air-cooled compressor for optimal performance and reliability. |
|
|
Refrigerant |
CFC-free and HCFC-free, non-flammable, environmentally friendly green refrigerants.. |
|
|
Air Circulation |
Automatically operated, forced uniform air circulation using an evaporator fan for consistent cooling distribution. |
|
|
Pull down time |
04 Hours |
|
|

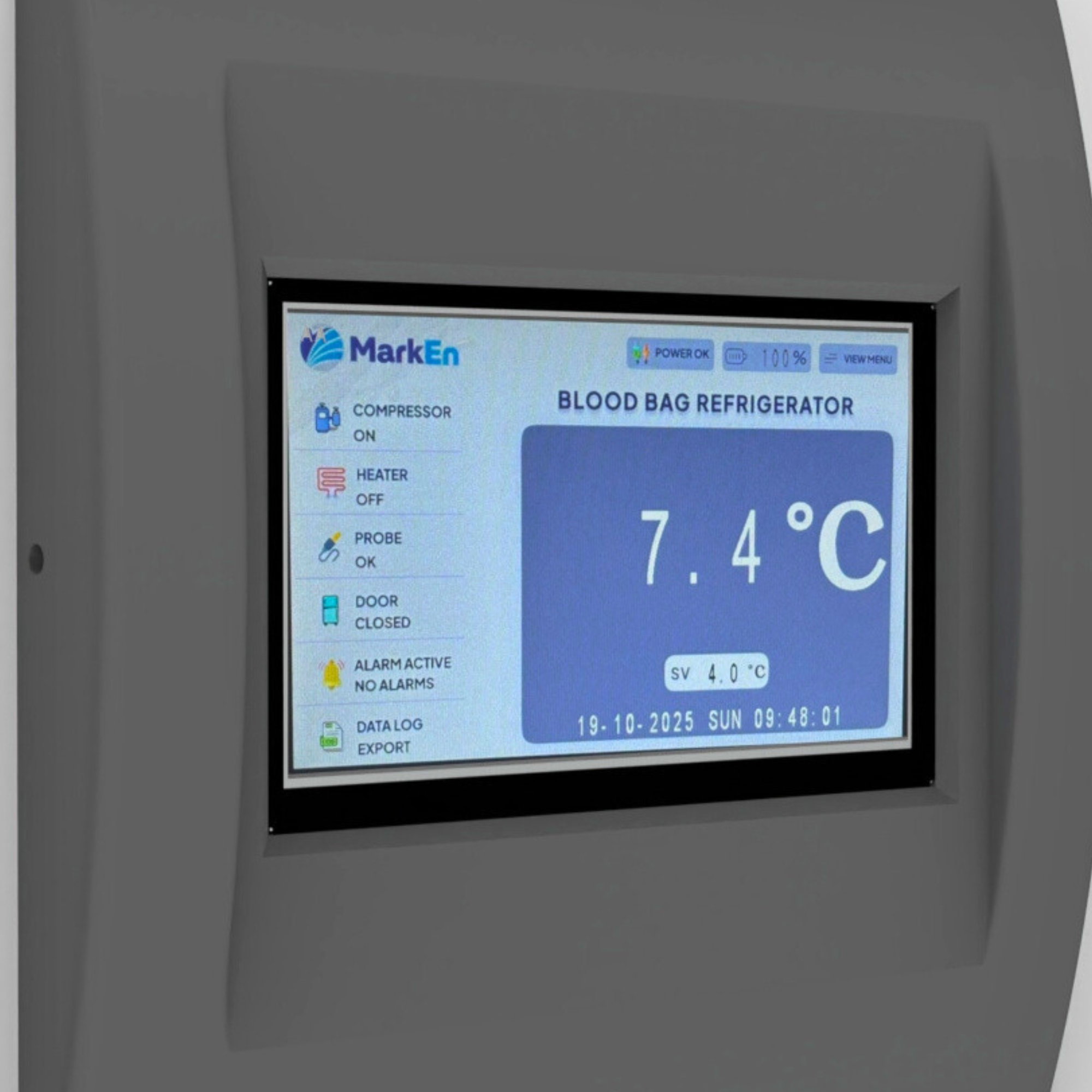

Temperature Controller |
Fully programmable, microprocessor-controlled system with a membrane keypad and an eye-level control panel for intuitive operation and precise control |
|
|
Display with Resolution |
LCD/LED with 0.1°C resolution. |
|
|
Temperature Range |
+2°C to +6°C with a setting accuracy of ±0.1°C for precise temperature control. |
|
|
Temperature uniformity |
±1°C or Less |
|
|
Environmental Condition |
10°C to +45°C with Humidity 5% to 95% RH |
|
|
Temperature Hold Over |
2 Hours |
|
|
Cool-down Time |
4 to 5 Hours for all the packs to reach below +6°C |
|
|

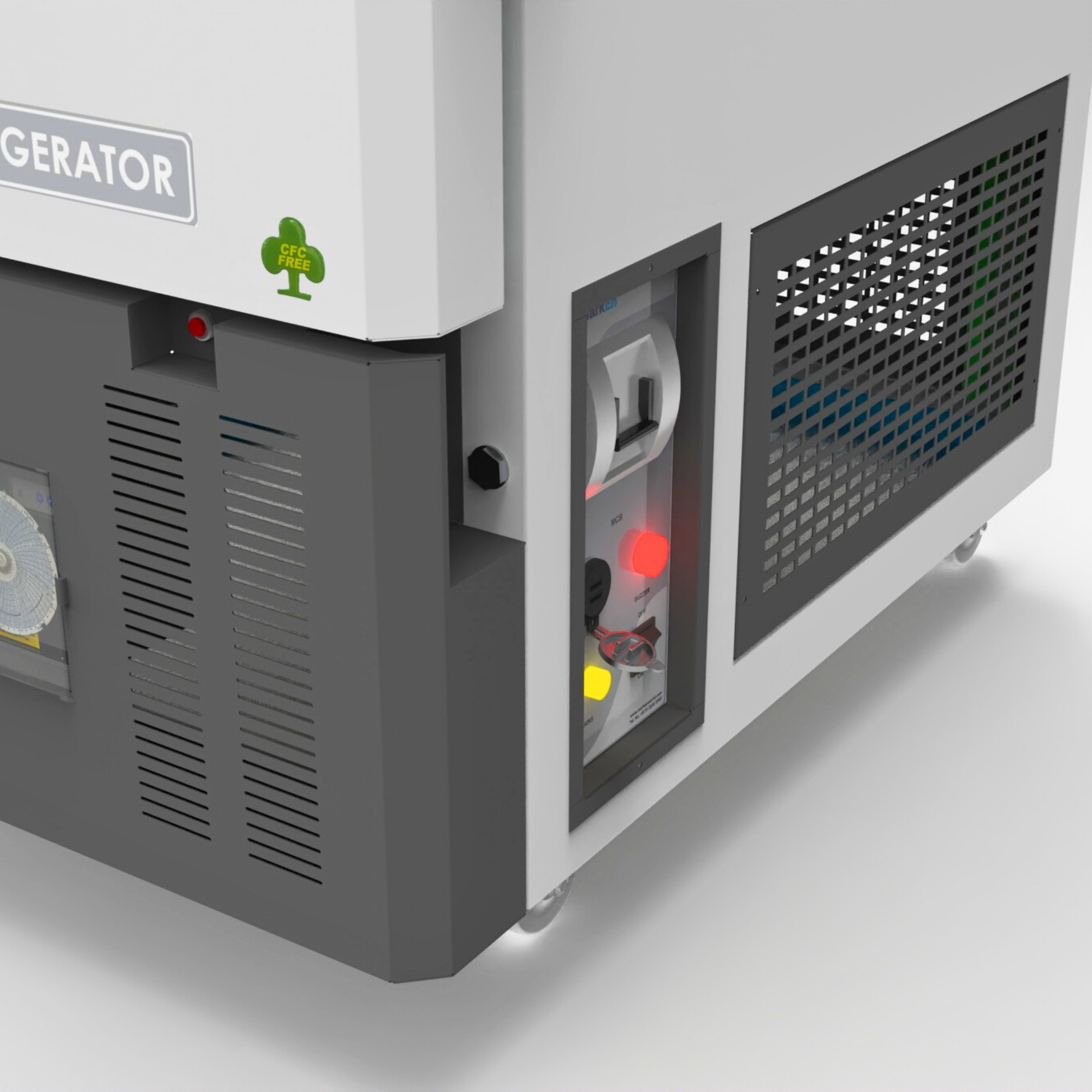

Temperature Monitoring System |
USB and RTMS IoT (Cloud Managed) support (optional), along with a 7-day inkless microprocessor-controlled chart recorder (-10°C to +20°C) with ±1°C accuracy for reliable data logging and monitoring. |
|
