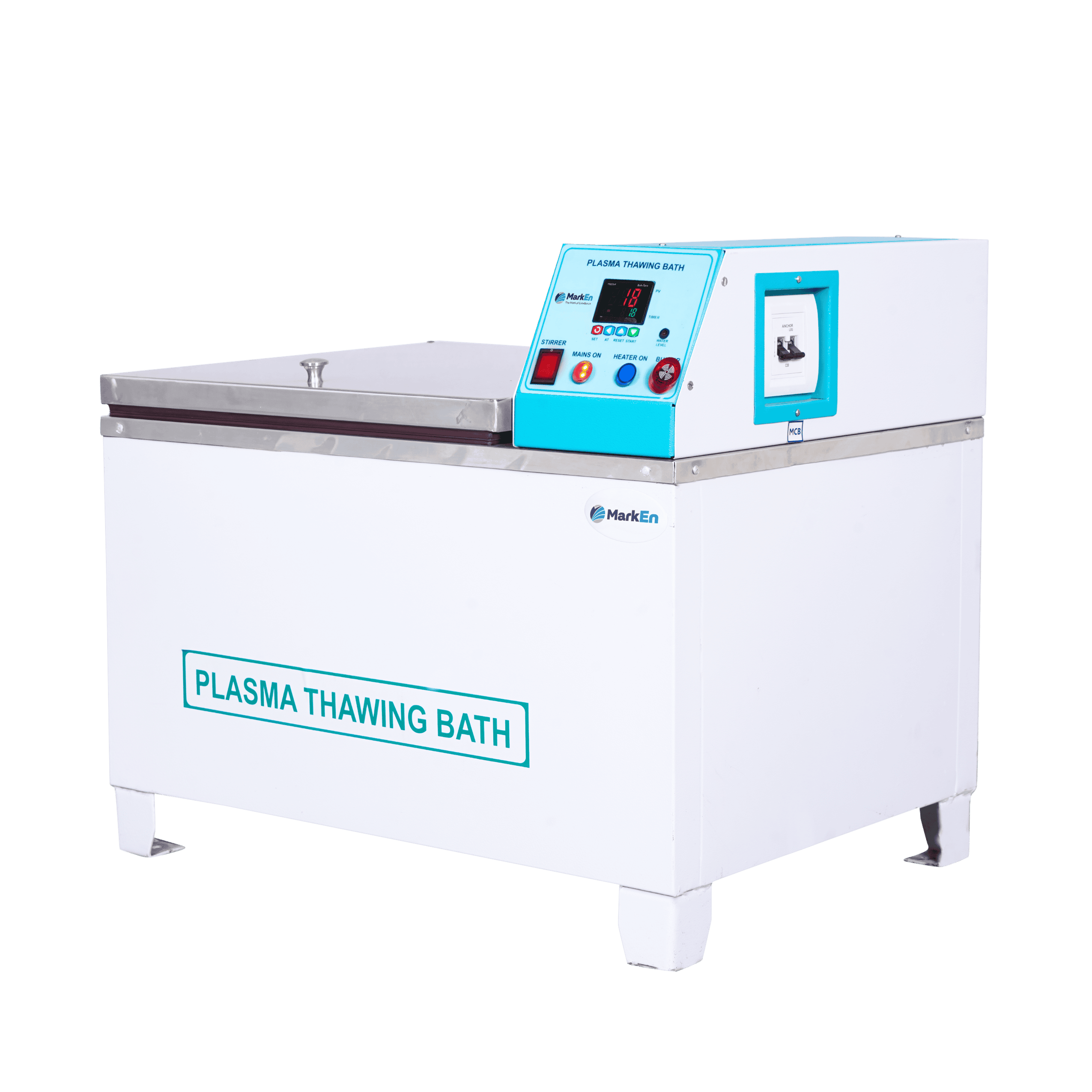

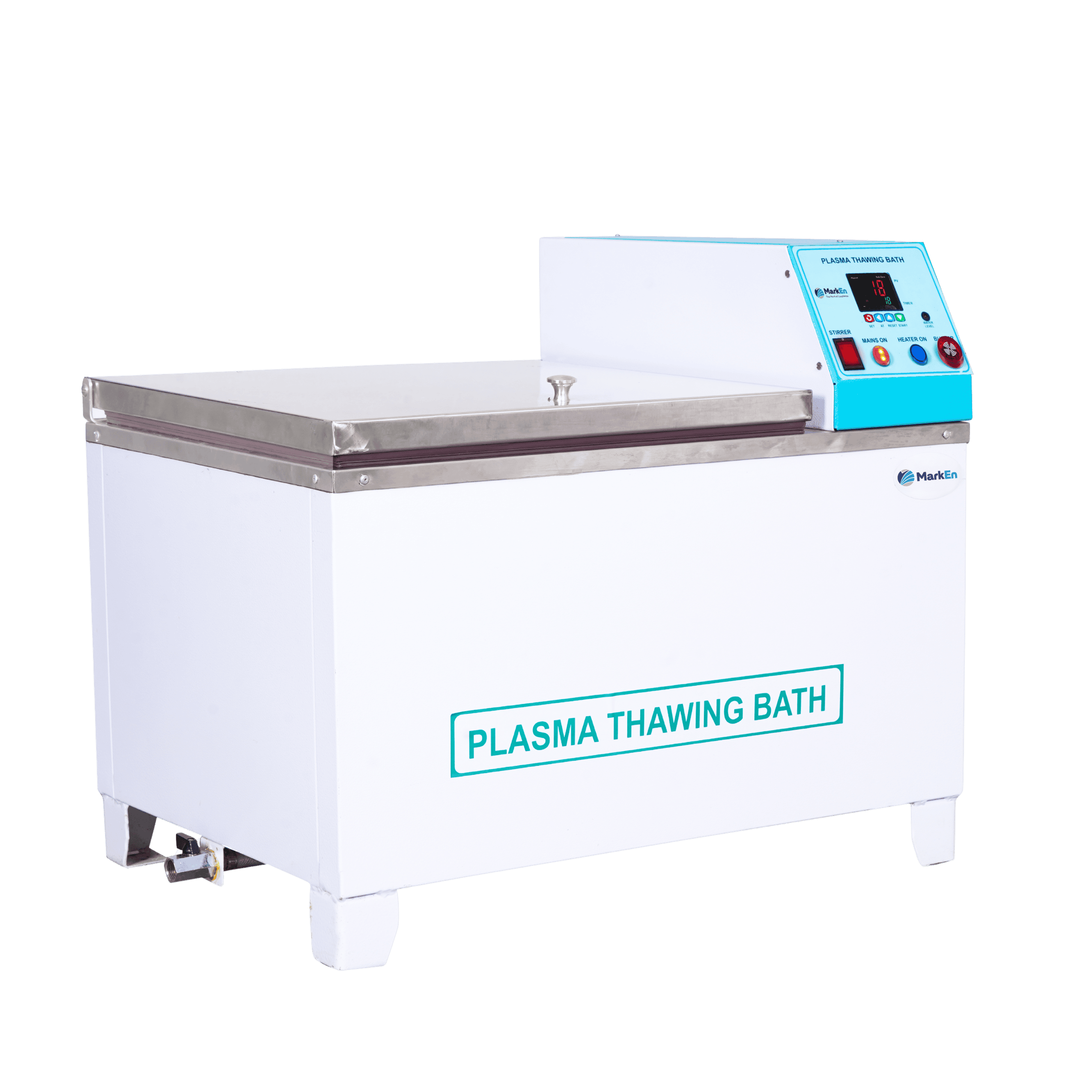

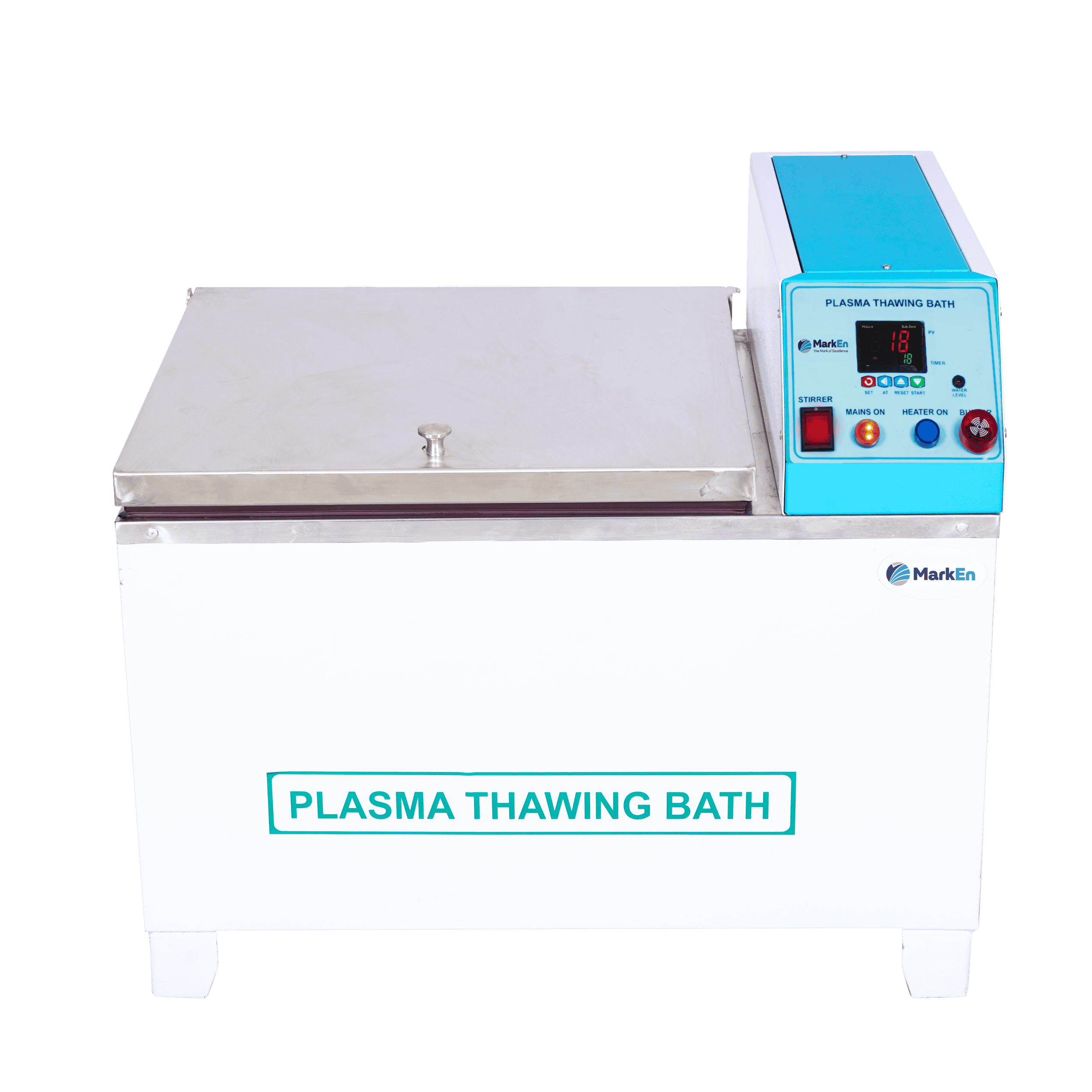

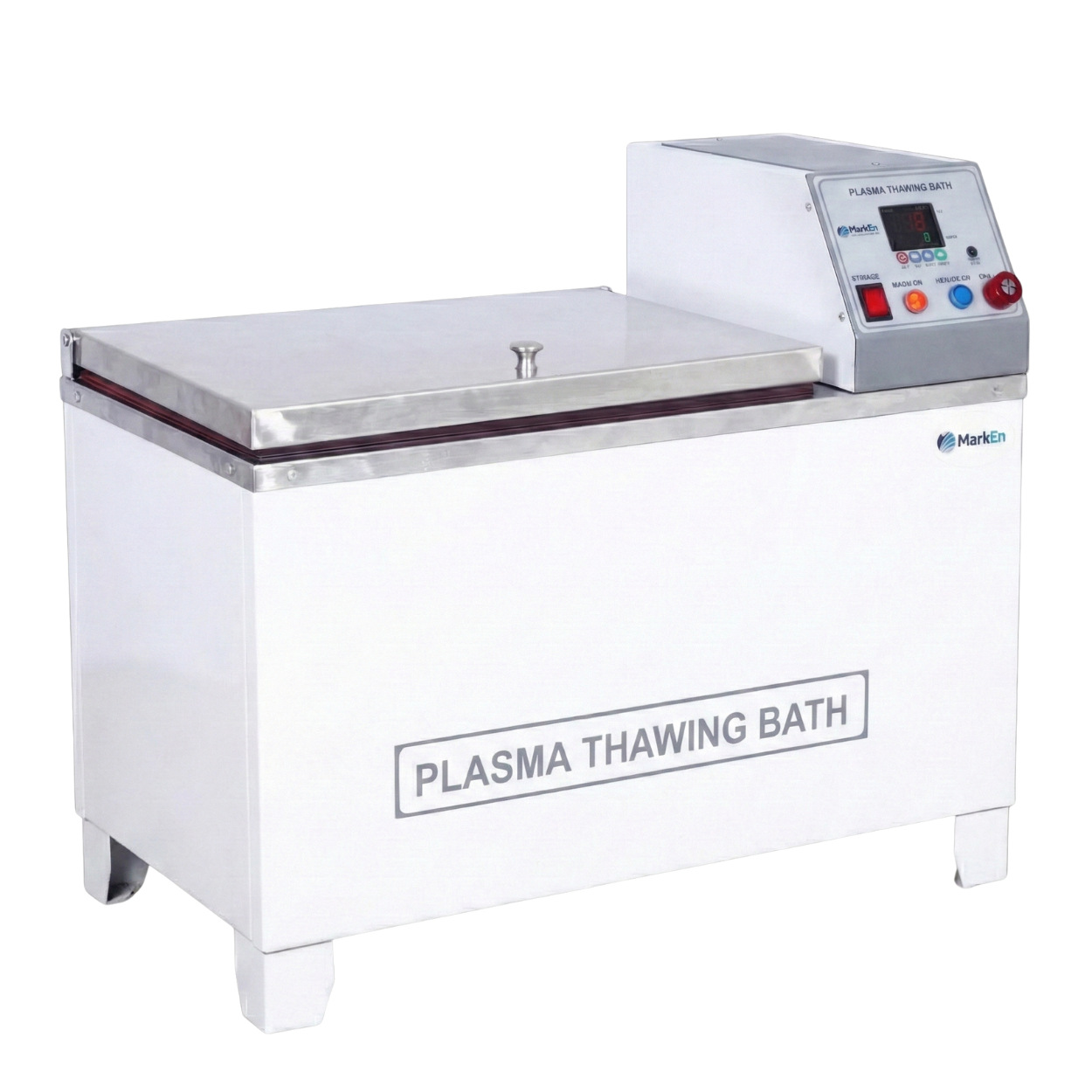

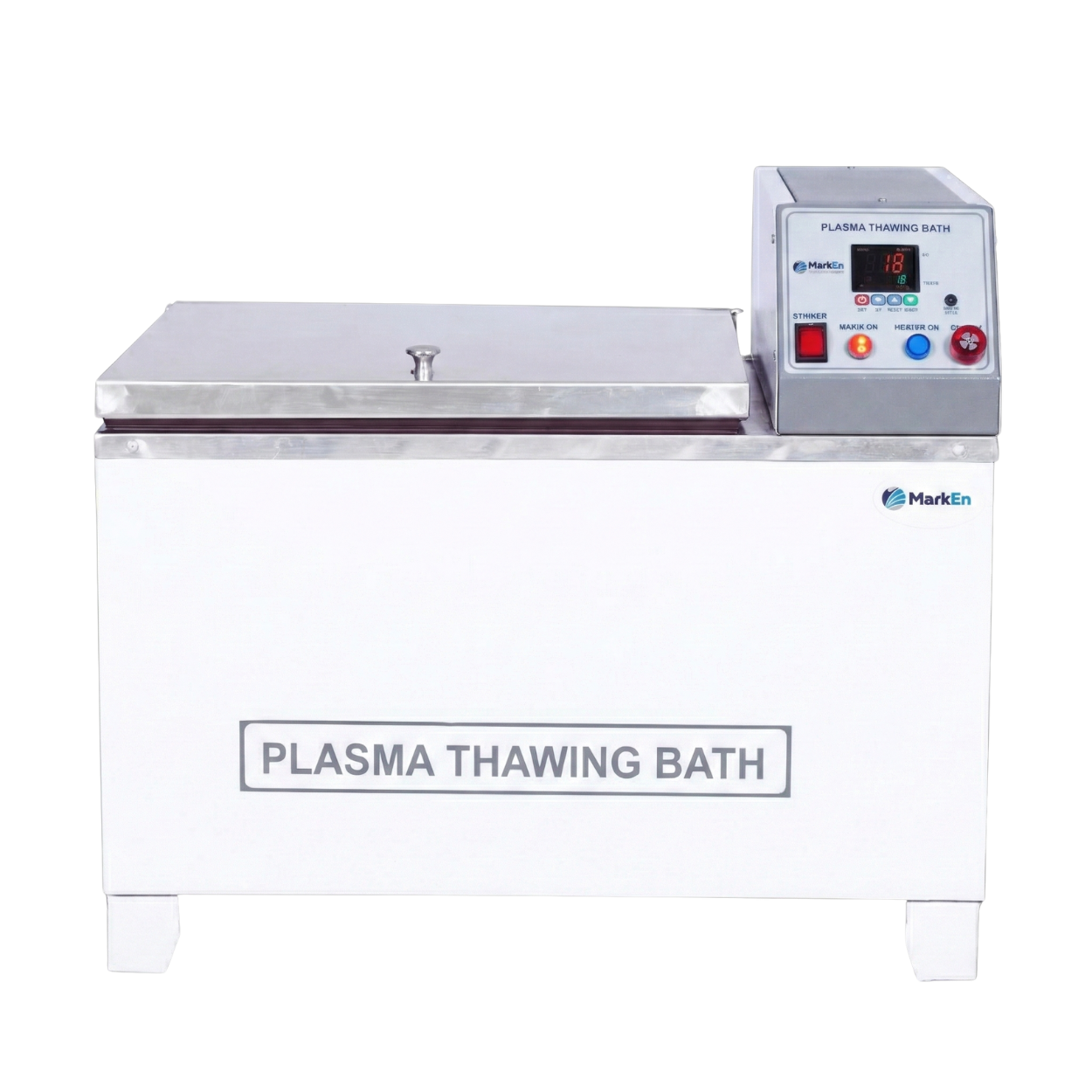

Plasma Thawing Bath
The Automatic Plasma Thawing Bath ensures safe, quick and reliable thawing of Fresh Frozen Plasma, FEP, Apheresis and cryoprecipitate. Maintaining precise temperatures up to +56°C it optimizes coagulation factor recovery. This compact tabletop unit features a top-opening stainless steel door, double-walled construction, and efficient water circulation for uniform temperature distribution making it ideal for laboratories and blood banks.
Compact Tabletop Design
Ideal for continuous operation in laboratories and blood banks, saving space while ensuring efficiency.
Integrated High-Performance System
Features a built-in stirrer, inline heater, and high-capacity pump, ensuring uniform thawing and precise temperature control.
Fast & Programmable Thawing Cycles
Pre-set time settings complete thawing in less than 20 minutes, optimizing workflow efficiency.
Automatic Water Level Detection
Built-in alerts notify users when water needs replenishment, ensuring uninterrupted operation.
Contamination Prevention with Removable Trays
Partitioned trays keep plasma bags above water level, reducing cross-contamination risks.
Enhanced Safety with Independent Thermostat
Automatic heater shutdown if the temperature exceeds the preset limit, preventing overheating.
|
Model |
MPTB-01 |
MPTB-02 |
MPTB-03 |
MPTB-04 |
|
Volume |
40 liters |
60 liters |
90 liters |
120 liters |
|
Bags capacity |
8 Bags |
12 Bags |
18 Bags |
24 Bags |
|
External Body Dimensions (WxDxH) mm |
600 x 400 x 450 |
800 x 500 x 550 |
900 x 600 x 650 |
1000 x 700 x 750 |
|
Inner Chamber Dimensions (WxDxH) mm |
500 x 300 x 350 |
700 x 400 x 450 |
800 x 500 x 550 |
900 x 600 x 650 |
|
Type |
Benchtop |
|||
|
Outer Body |
CRCA/GI sheet with bacteria resistant powder coated finishing |
|||
|
Inner Chamber |
Stainless-steel 304G |
|||
|
Insulation |
Double-walled with glass wool insulation for improved temperature stability and energy efficiency. |
|||
|
Tray |
Removable trays with individual compartments ensure that the ports of bags are kept above the water level during the procedure. |
|||
|
Temperature Range |
20°C to 56°C adjustable with accuracy of ±0.1°C |
|||
|
Timer Setting Range |
1 minute to 4 hrs. |
|||
|
Temperature Controller |
Microprocessor based PID temperature controller with in-built programmable timer and process END buzzer. |
|||
|
Temperature Sensor |
PT100 Sensor for high-accuracy, platinum-based temperature sensors that provide precise temperature readings. |
|||
|
Display |
LED Digital display |
|||
|
Resolution |
+0.1°C |
|||
|
Alarm System |
Audible and visual alarm system for over-temperature, temperature deviation from the preset value, thawing completion cycle, leak detection with auto-stop, and low/high water levels. |
|||
|
Thawing Mechanism |
High-Capacity Pump and Stirrer Temperature Maintenance: Controlled by a heater. Filter Near Water Inlet Inside Tank: Prevents clogging and restricts dust movement into the pump. |
|||
|
Noise Level |
<58 db[A] |
|||
|
Average thaw time |
20 minutes |
|||
|
Power Consumption |
600 Watts |
900 Watts |
1.5 kW |
2 kW |
|
Weight (Net) |
50kg |
85Kg |
110Kg |
175Kg |
|
Power supply |
220-240V 50Hz, AC single phase power supply |
|||
