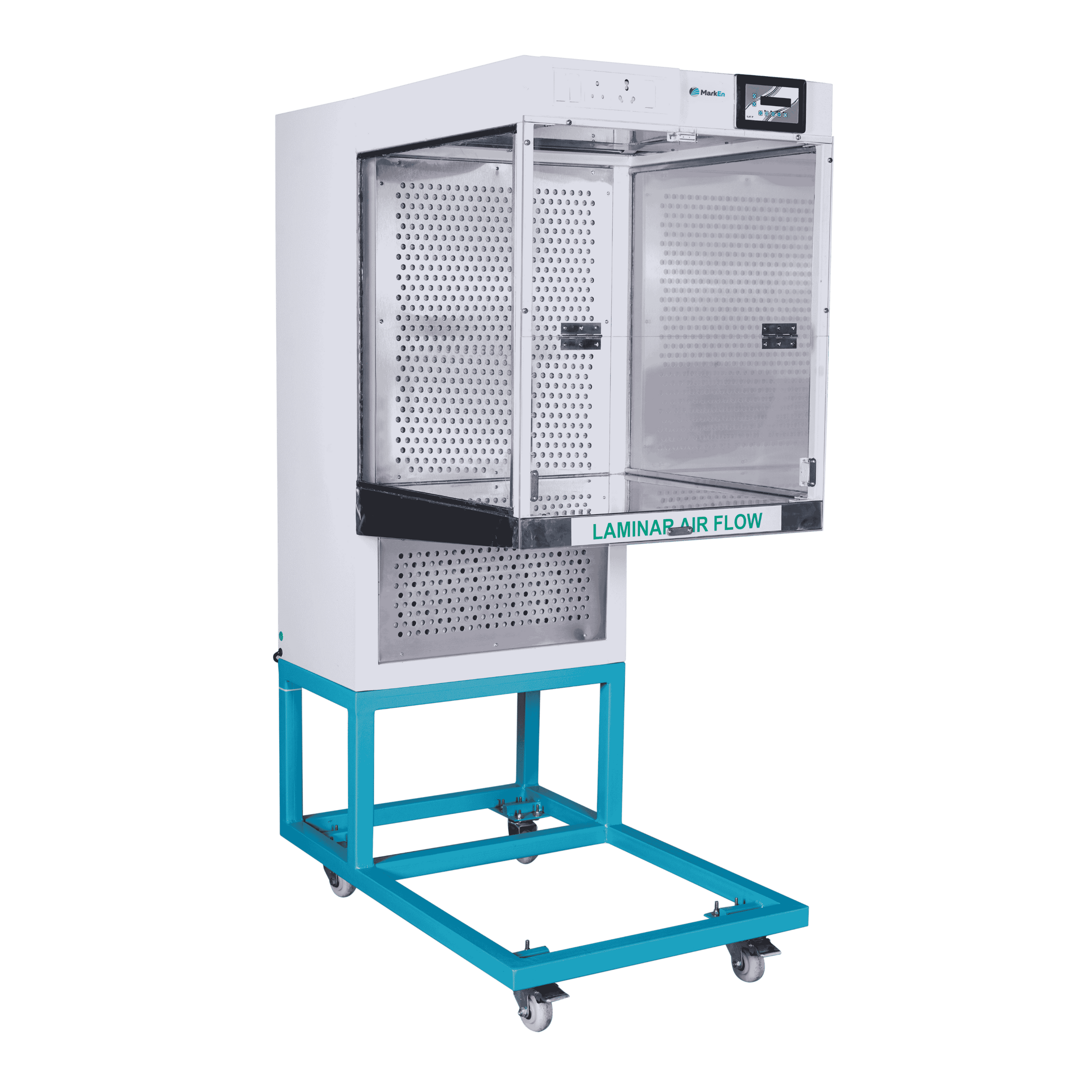

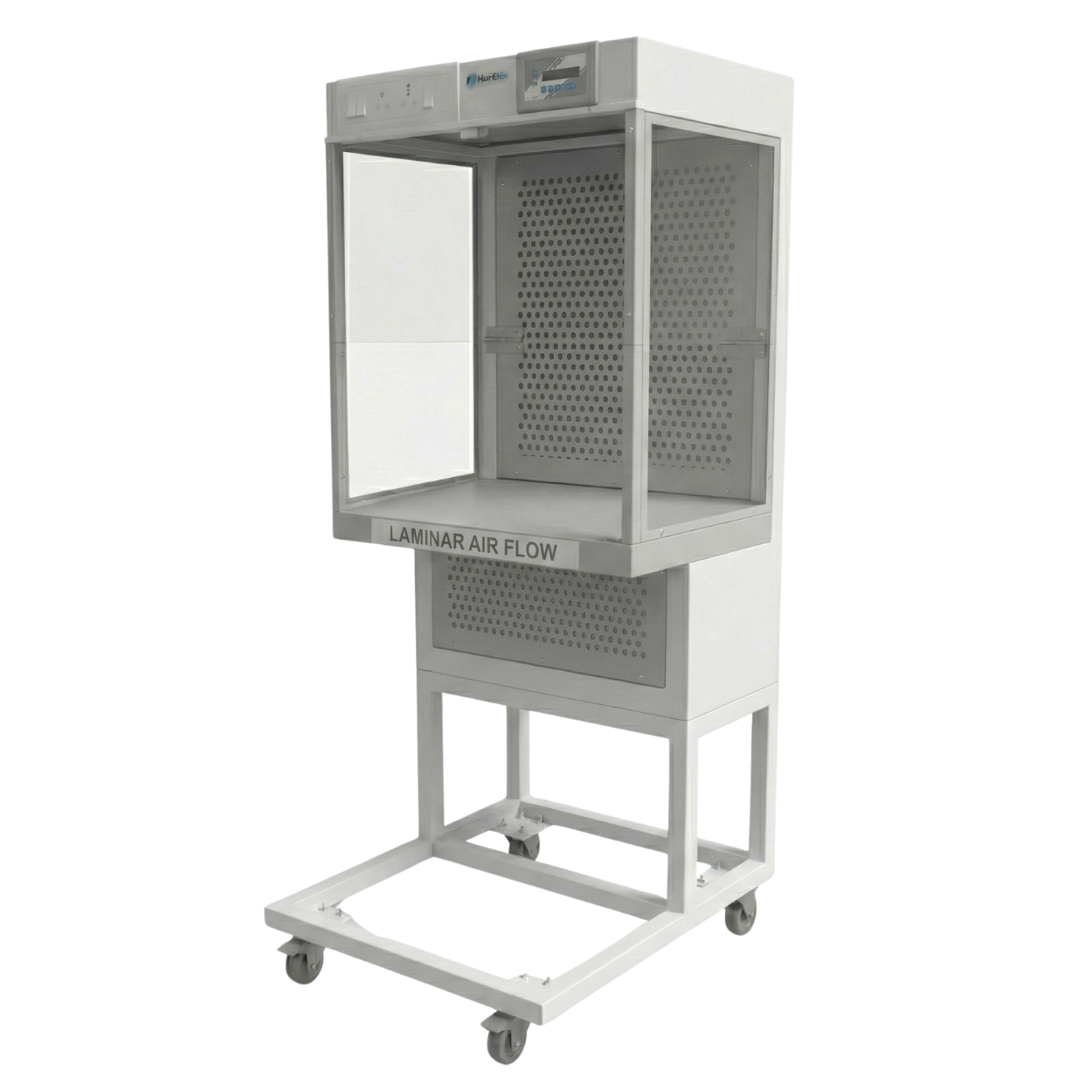

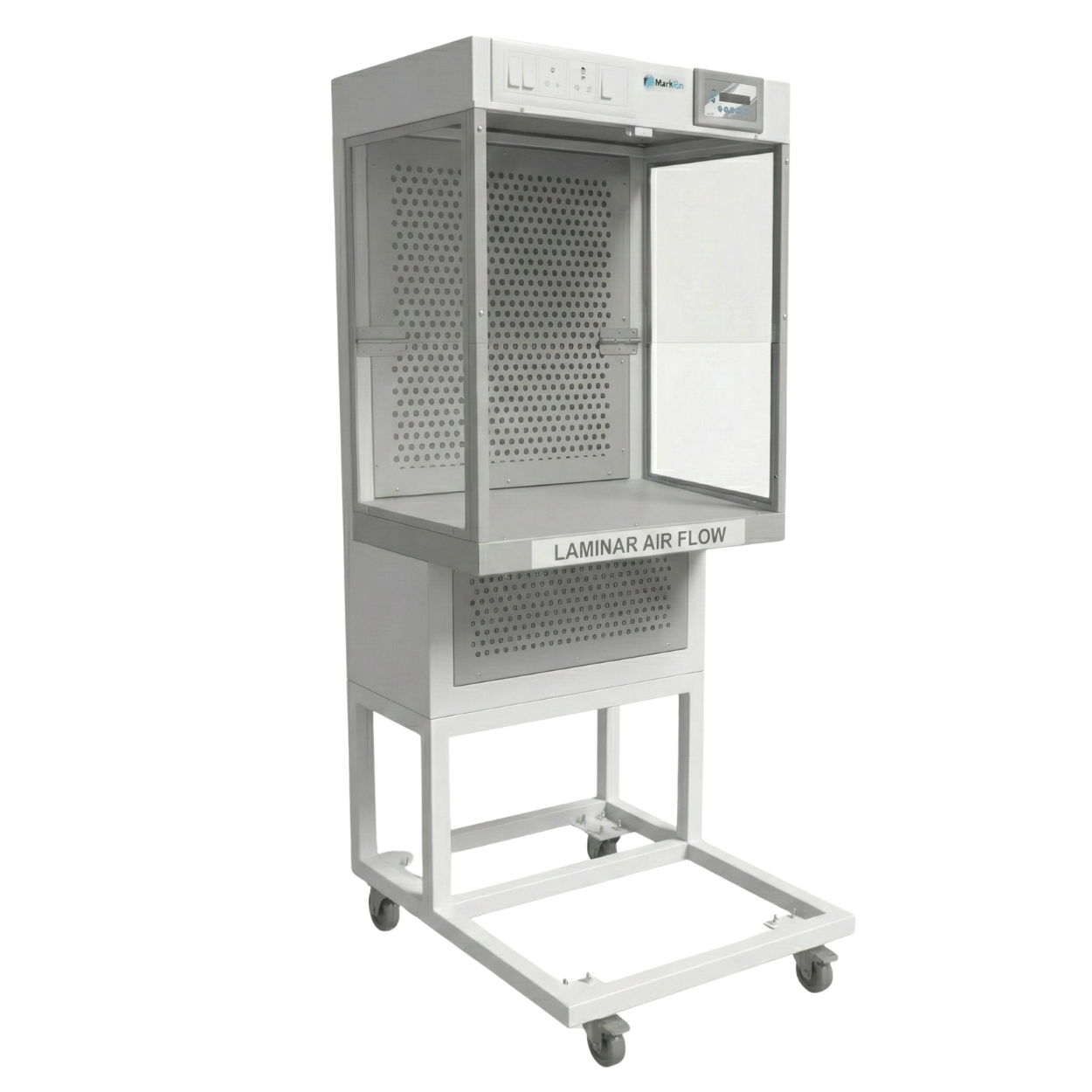

Laminate Air Flow (Vertical)
Laminar Air Flow Cabinets (Vertical) deliver ultra-clean, contamination free workspaces essential for sterile laboratory processes. Engineered with state-of the art airflow technology and high-efficiency filtration, these cabinets provide optimal sterility, energy efficiency and user comfort. Their versatile configurations and intelligent controls ensure adaptability and reliability across diverse scientific applications.
Energy-Efficient Performance
DC ECM blower technology offers up to 70% energy savings, consuming only 155 watts of power.
Superior Air Filtration
ULPA filter (>99.999% efficiency) captures particles as small as 0.1–0.3 μm, providing 10x better filtration than standard HEPA filters.
Ultra-Quiet Operation
Noise levels as low as 52 dBA ensure a comfortable and distraction-free working environment.
Flexible & Customizable Design
Available in fixed and sliding sash options, with horizontal and vertical laminar flow configurations to suit different workspace requirements.
Advanced Control System for Stability
Sentinel™ Gold Microprocessor Controller provides stable, self-compensating airflow for consistent performance.
Long-Lasting & Durable Construction
Built for a minimum 10-year lifespan, with Guaranteed spare parts availability for continued reliability.
Type of air flow direction | Vertical |
Thickness of the floor or side panels | 5 mm |
Type of configuration | Freestanding, benchtop, Mobile |
Material used for the work bench | Stainless steel 304 grade, Powder coated MS |
Material used for the front door | Acrylic transparent, Stainless steel 304 grade, Glass, Polycarbonate |
Material used for the Side Panel | Stainless steel 304 grade, Polycarbonate, PVC |
Availability of motorized | Sliding door |
Display | LCD display for velocity, time & lamp on/off |
Alarm | Digital Pressure Gauge with Alarm |
Type of air cleanliness | Class 100 |
Type of Sash (front door) | Folding |
Laminar air flow Velocity (m/s) | 0.26 to 0.38 |
Exhaust HEPA Filter Typical Efficiency | ≥99.99% at 0.3 microns |
Sound Emission | 52 dBA |
Illumination | LED |
Electrical | 230V/50HZ 15 A |
Weight (Net) | 90 kg |
