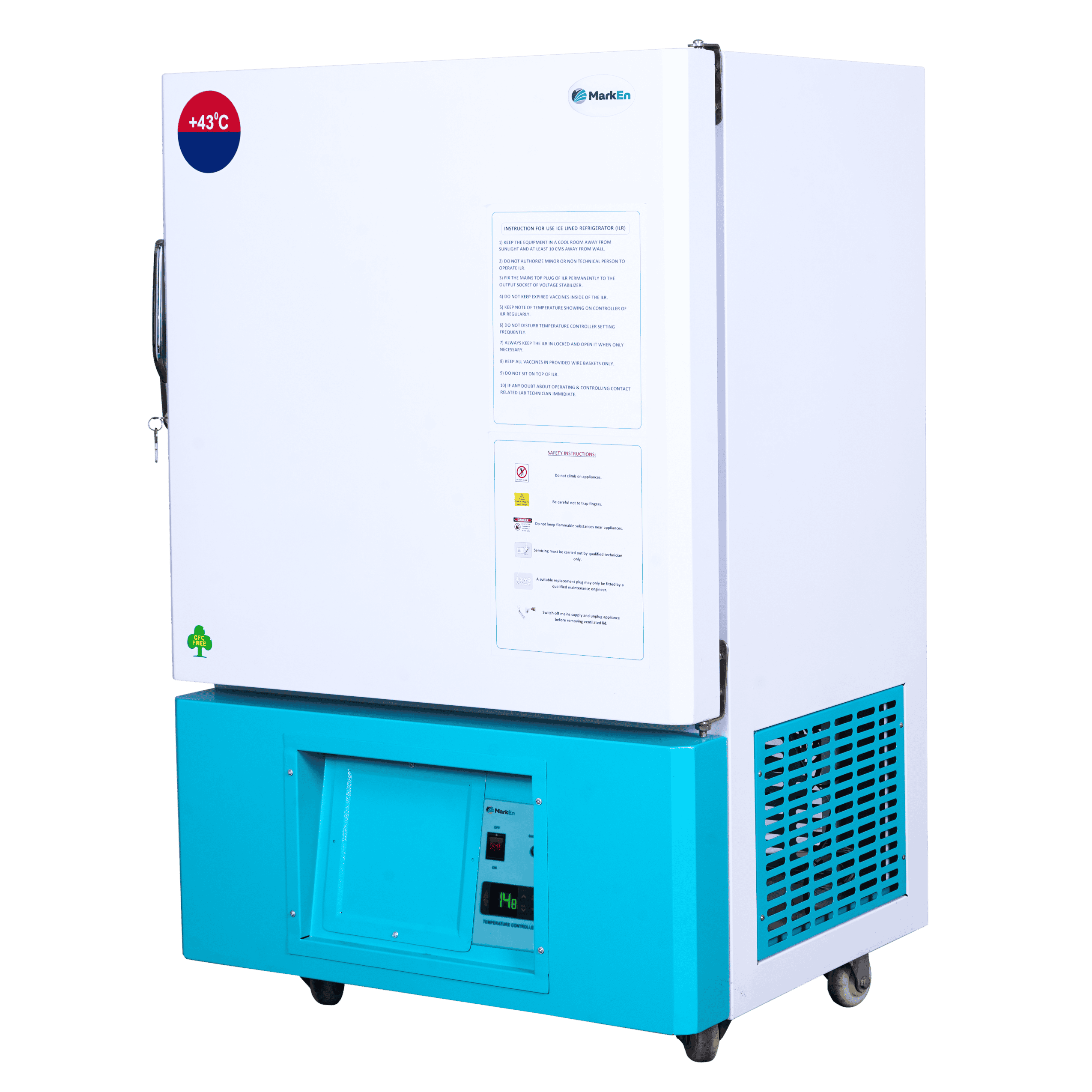

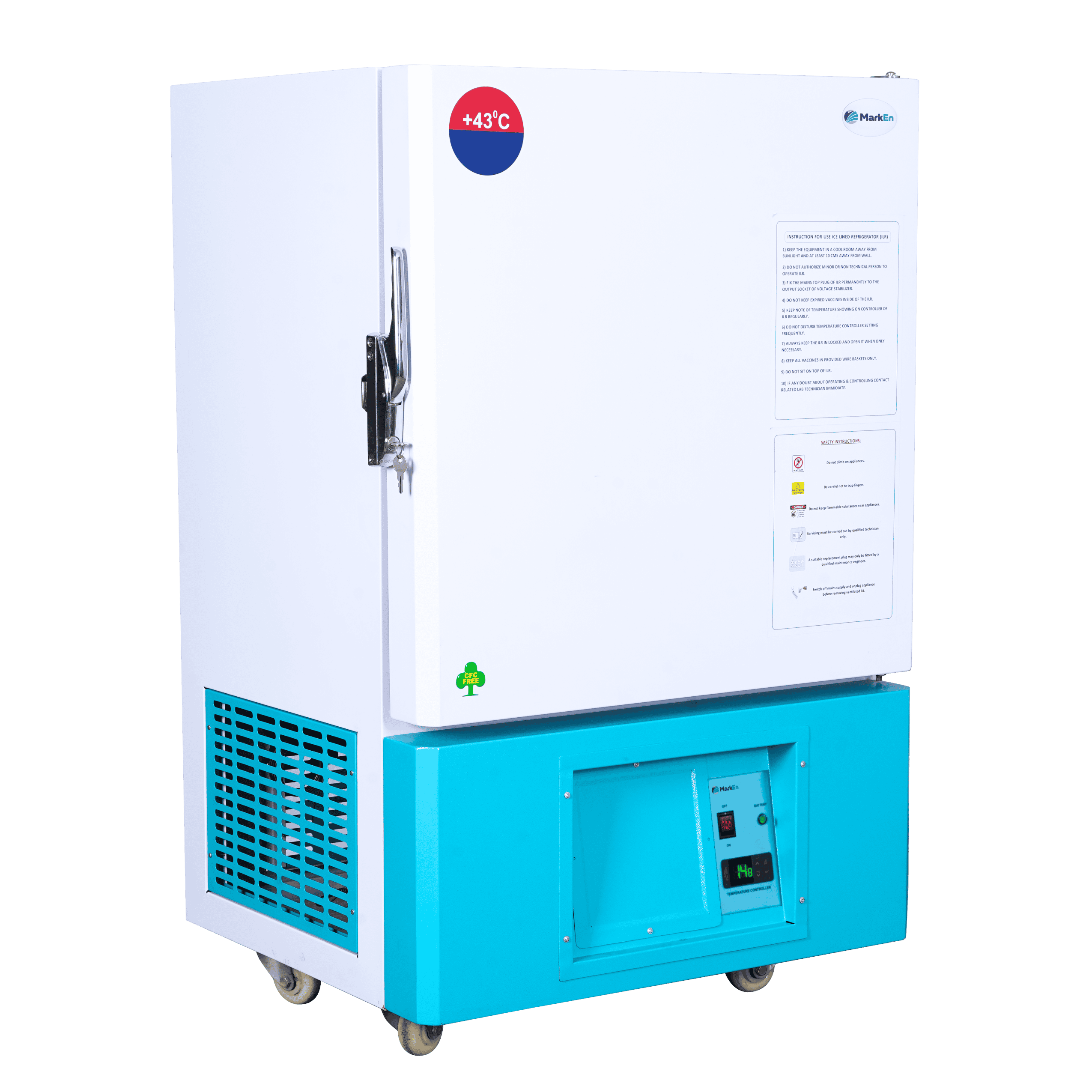

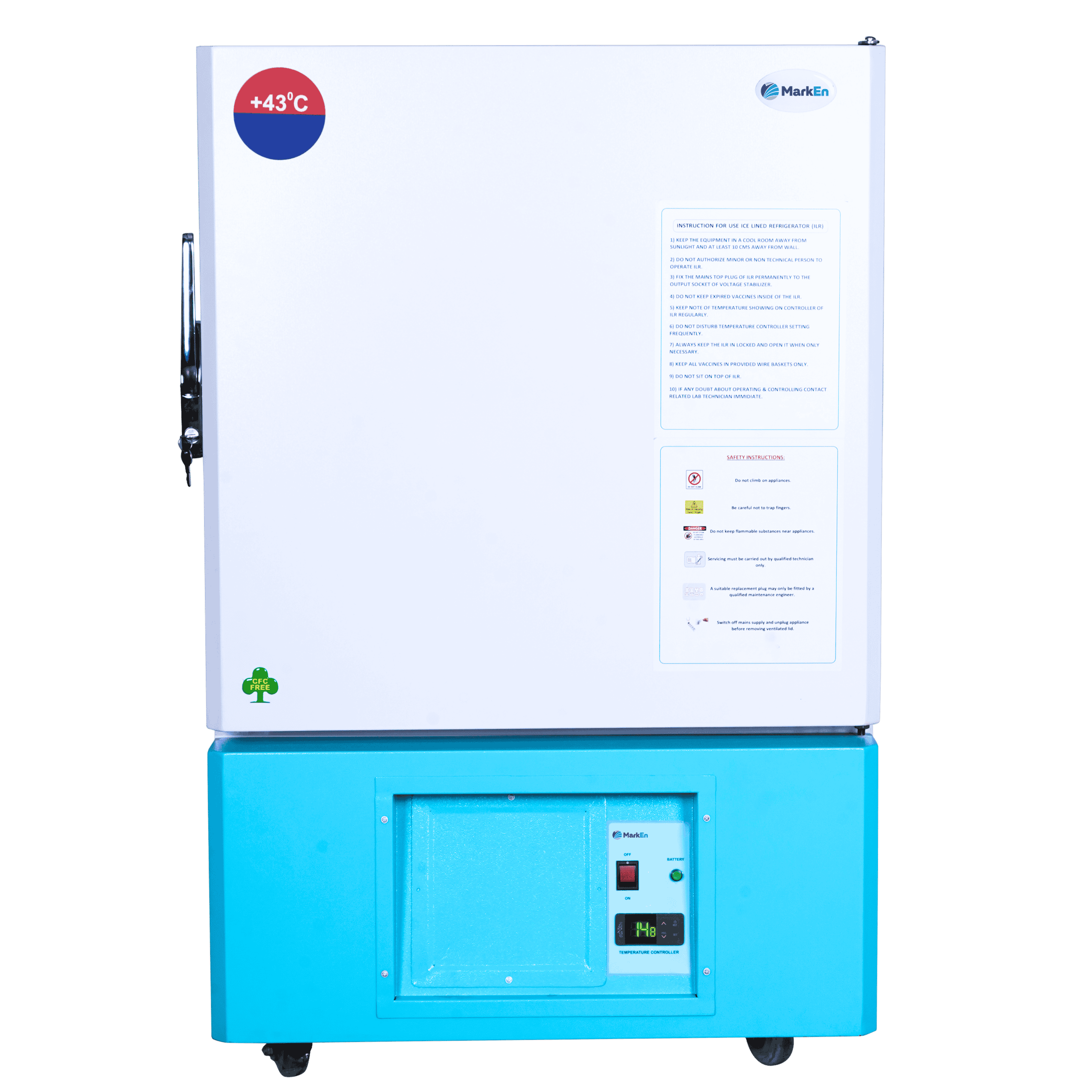

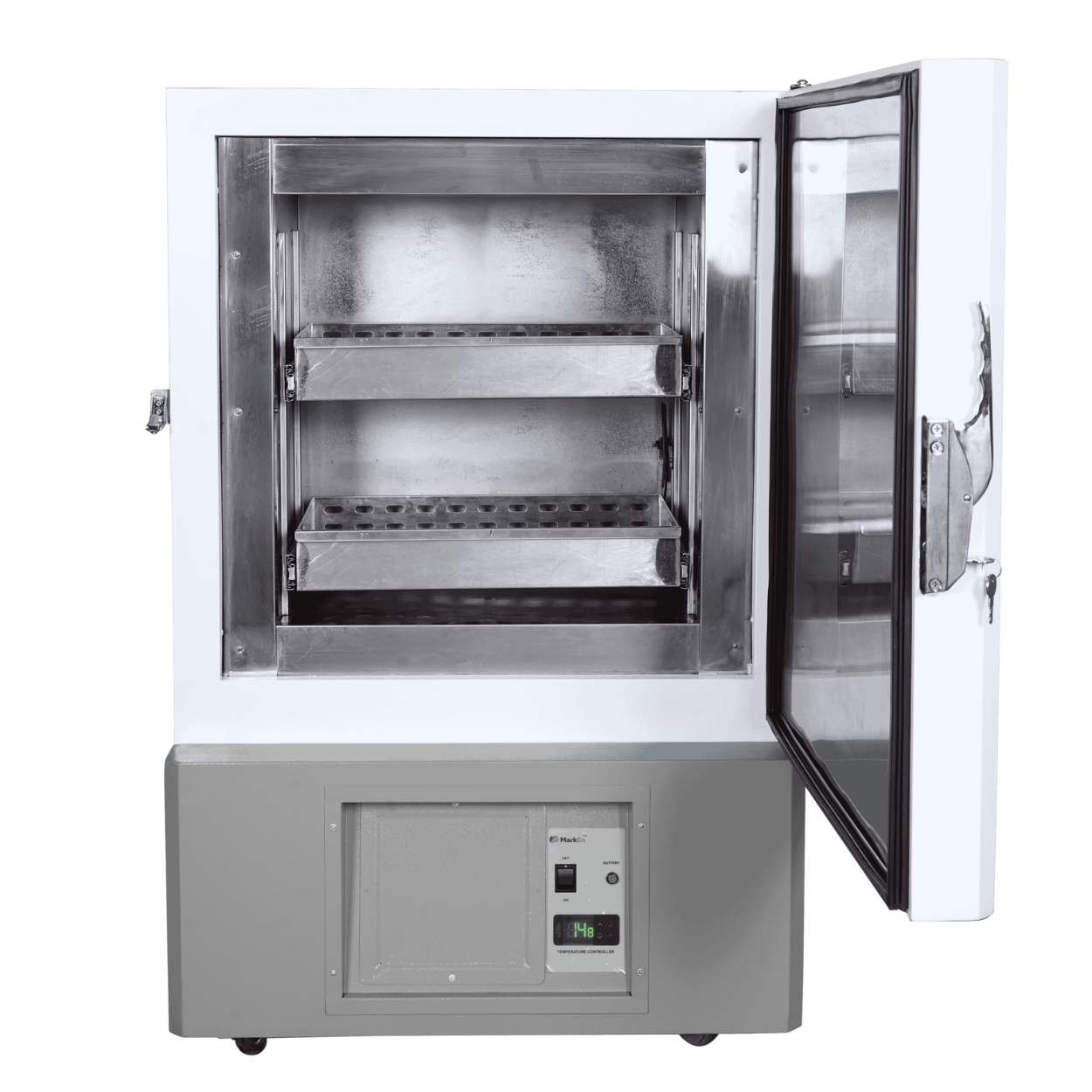

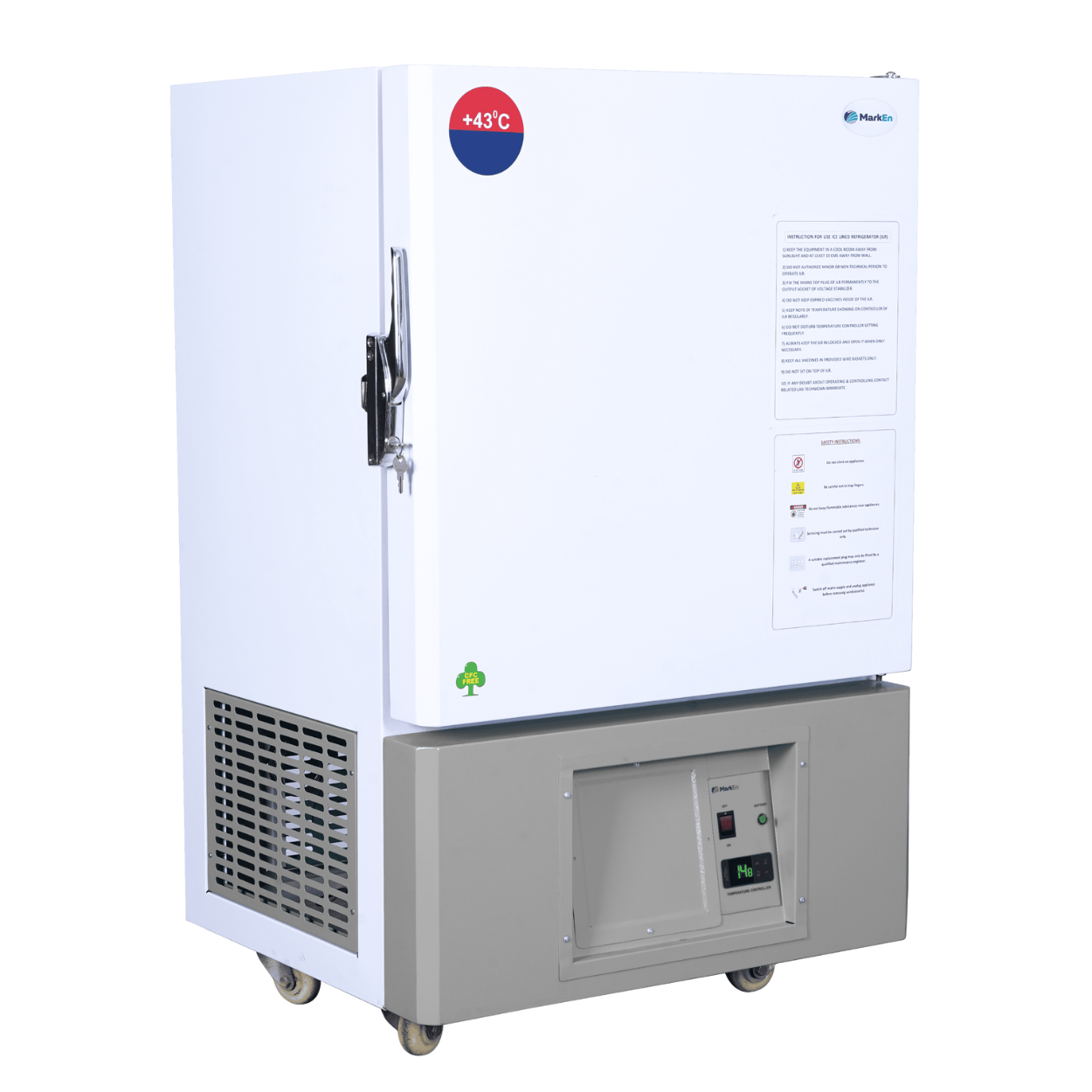

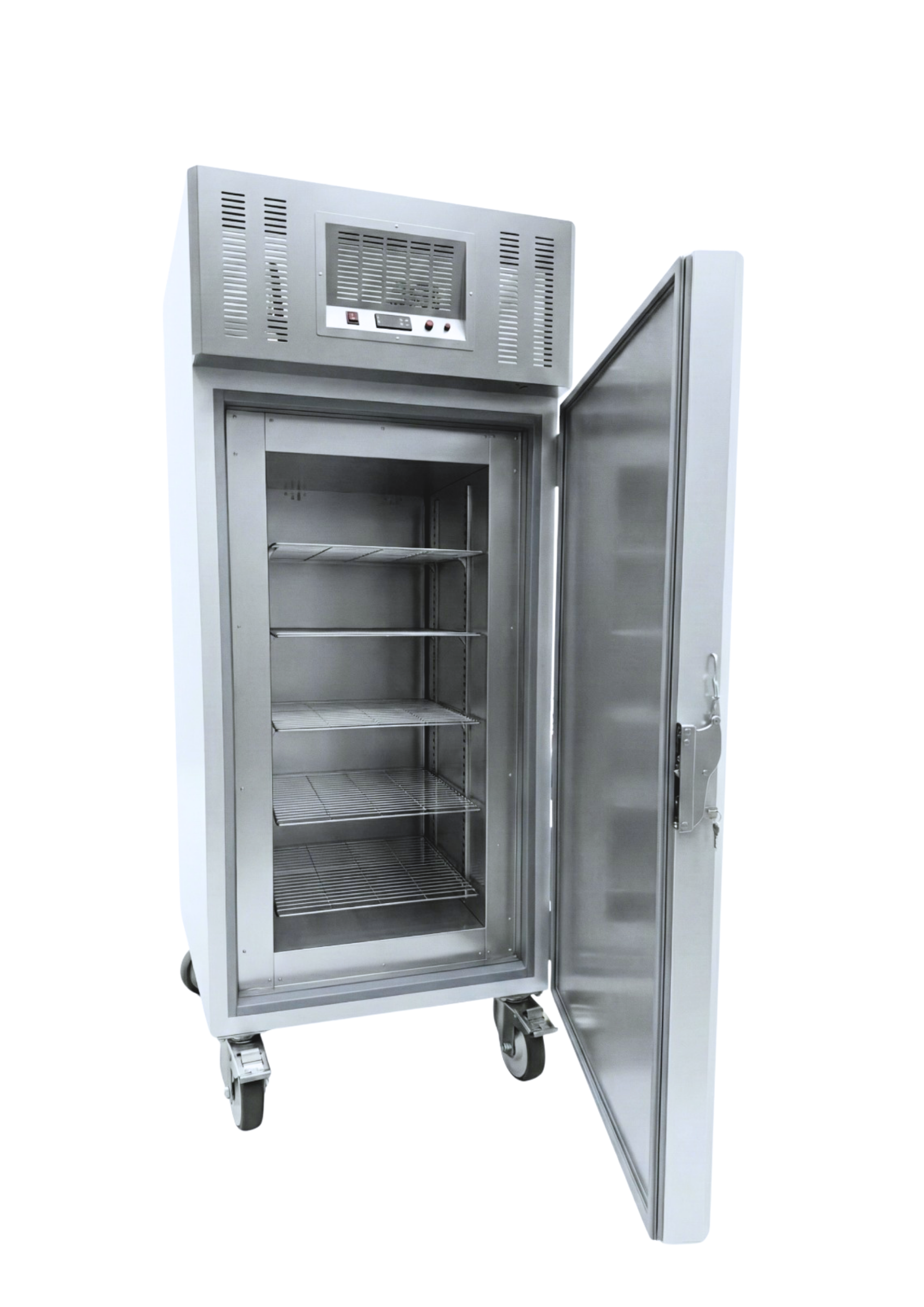

Ice Lined Refrigerator ( Vertical)
Ice Lined Refrigerator (Vertical) is designed to ensure precise temperature control, eliminating the risk of freezing vaccines. With energy-efficient technology, it maintains a temperature holdover of 24 hours and requires just 8 hours of daily power to operate. The high-tech energy management system and optimized refrigeration design ensure superior temperature stability, even in challenging conditions.
Optimal Temperature Control
Maintains a consistent +2°C to +8°C range, even in extreme environments from -10°C to +43°C.
Reliable Operation in Unstable Power Conditions
Ideal for regions with inconsistent electricity, ensuring continuous cooling without needing standby power.
Tropical Climate Ready
Green-based technology ensures efficient and consistent cooling performance in warm and humid climates.
Anti-Condensation Hot Line
Prevents moisture buildup around the cabinet opening, maintaining hygienic and efficient storage.
Energy-Efficient Refrigeration
Compression cycle cooling system delivers consistent temperature regulation while minimizing power consumption.
Remote Temperature Monitoring & GPS Tracking
GPS system ensures 24/7 real-time temperature alerts and compliance via SMS, email, and app-based QR tracking.
Model | MILR-01 | MILR-02 | MILR-03 | MILR-04 | ||
Gross Capacity in Liters | 80 L | 155 L | 301 L | 301 L | ||
Net Capacity | 30 Bags | 100 L | 245 L | 248 L | ||
| Dimensions (WxDxH) in mm | Outer | 800 x 450 x 600 | 900 x 500 x 700 | 1200 x 650 x 850 | 1100 x 600 x 800 | |
Inner | 650 x 350 x 450 | 750 x 400 x 550 | 1000 x 500 x 650 | 900 x 450 x 600 | ||
Door (HxW) | 450 x 500 | 500 x 600 | 650 x 900 | 600 x 800 | ||
Net weight | 60 kg | 105 kg | 150 kg | 115 kg | ||
Type of Cabinet | Horizontal/Vertical | |||||
Color | White | |||||
Outer Body Material | Corrosion-resistant CRCA/GI powder-coated steel, Galvanized Steel (18 SWG) / Rotomolded | |||||
Inner Chamber Material | Stainless Steel 304 / Rotomolded Rust-Free Construction | |||||
Insulation Material | CFC-free PUFF insulation | |||||
Insulation Thickness | Cabinet: 80-100 mm | Door: 80-100 mm | ||||
Ground Clearance | 100 mm with additional support for uneven floors (Optional) | |||||
Door | Ballast box-type solid door with lock-key and handle | |||||
Castor Wheel | 4 castor wheels, out of which 2 are lockable | |||||

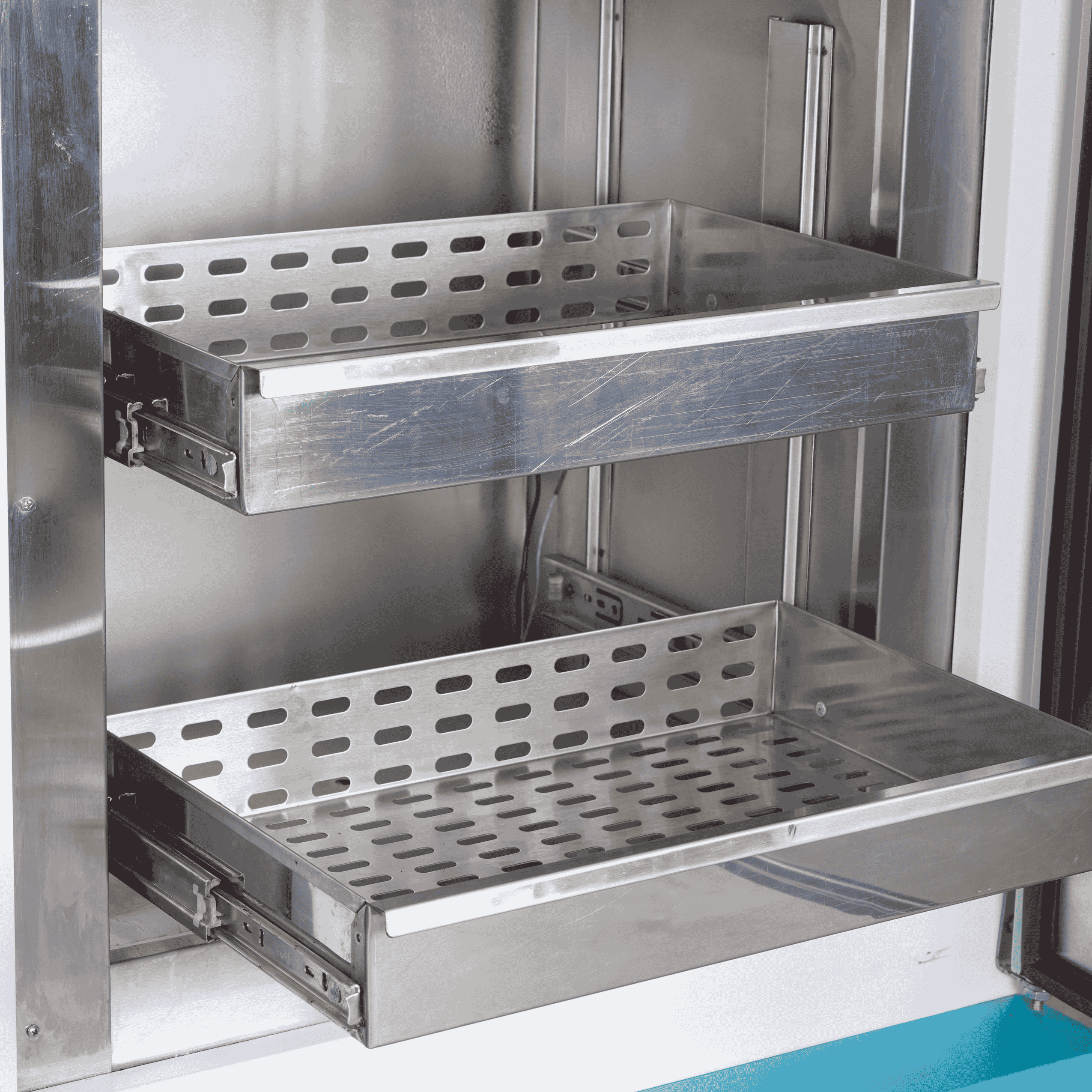

Basket | 02 - 05 Nos. | |||||
Compressor | Hermetically sealed compressor | |||||
Refrigerants | CFC-HCFC-free, non-flammable green refrigerants (R-134a) | |||||
Temperature Sensor | PT 100 (placed under 25–50 mm above the base chamber) | |||||
Condensing | Skin condensing and inner and air-cooled grooved aluminum fins | |||||
Pull down time | 12 Hours when ILR is empty and 24 Hours when ILT is fully loaded | |||||
Holdover time with full load | 24 Hours | |||||
Operating Temperature Range | +2°C to +8°C adjustable with setting accuracy +0.1°C | |||||
Temperature uniformity | ±1°C | |||||
Control System | On/Off switch, power indicator, fully programmable microprocessor-controlled with a membrane keypad, and password-protected with a child lock facility | |||||
Temperature Monitoring System | With IOT (Cloud Manage) supported (Optional). | |||||
Display | 3-digit digital temperature display with 0.1˚ resolution | |||||
Alarms | Audible and visual alarm system for over and under-temperature, sudden power failure, and low battery | |||||
Battery Backup | 12-hour battery backup for digital display, total alarm system, and temperature recording system with auto-recharging facility | |||||
Noise level | <55 db | |||||
Power supply | 220-240V AC, 50 Hz +22% | |||||
