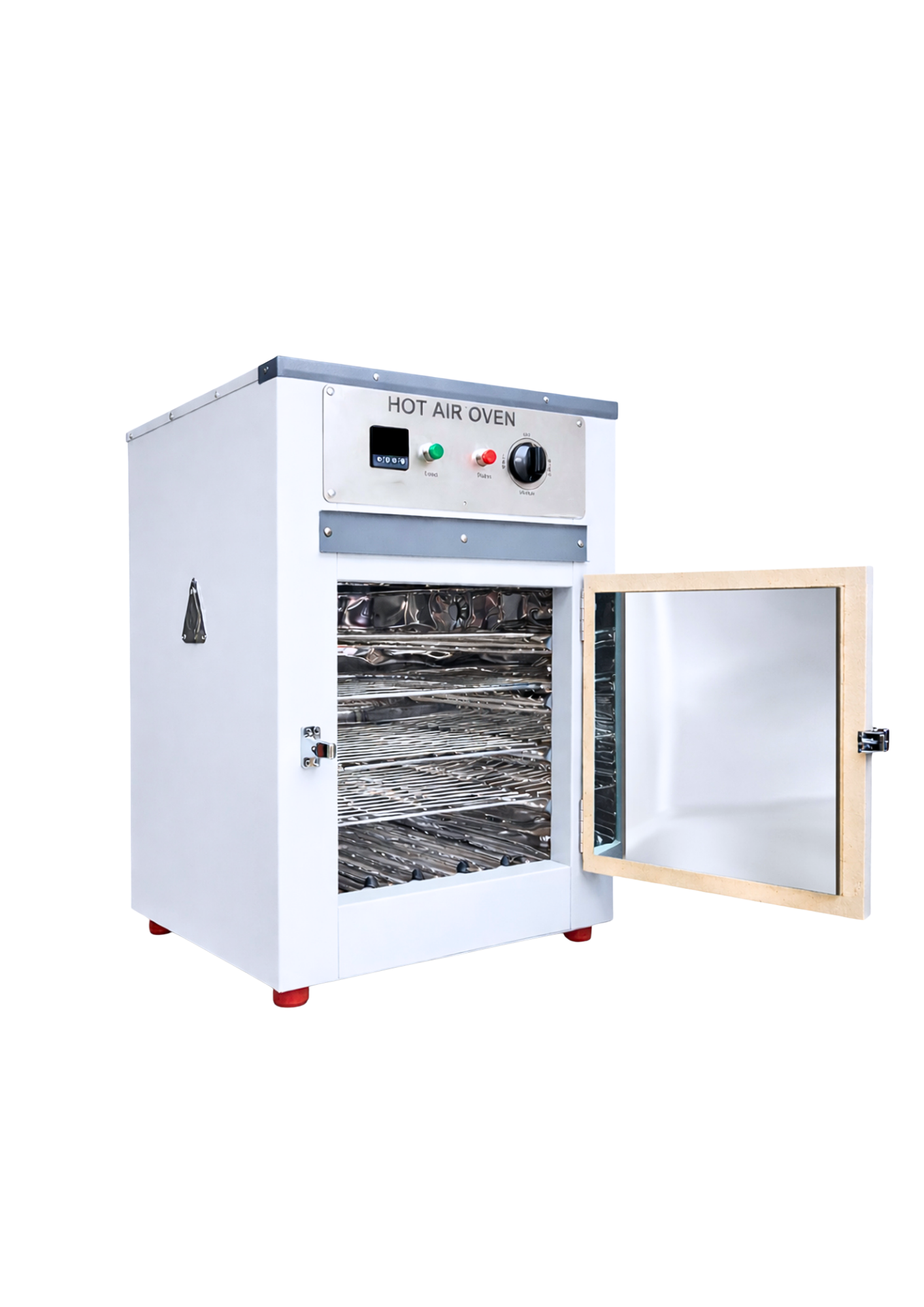

Hot Air Oven
Hot Air Oven is engineered for precise heating, uniform temperature distribution, and dependable laboratory performance. Designed with advanced air circulation technology and intelligent temperature control, it is ideal for sterilization, drying, heating, and research applications across laboratories, hospitals, industries, and R&D facilities.
Uniform heat distribution
Advanced forced air circulation system ensures consistent and uniform temperature throughout the chamber for accurate processing.
Wide temperature range
Operates efficiently from ambient temperature up to +250°C with high precision and stable thermal performance.
Smart digital controller
Microprocessor-based PID control system with digital display enables accurate temperature monitoring and easy operation.
Enhanced safety protection
Integrated over-temperature protection and audio-visual alarms provide reliable safety during continuous operation.
Durable SS-304 chamber
High-grade stainless steel inner chamber offers superior corrosion resistance, hygiene, and long operational life.
Energy-efficient heating system
High-performance heating elements deliver fast heat recovery, efficient operation, and reliable thermal stability.
Make | MarkEn | |
Application | Suitable for microbiology, cell culture (plant & animal), food testing, laboratories, industries, and R&D applications | |
Type | Bench Top Model | |
Capacity in Liter | 96 L (≈ 3.4 CFT) | |
Outer Material of Cabinet | Powder-Coated Mild Steel Exterior for superior corrosion resistance and long-lasting durability. | |
Inner Material of Cabinet | Made of SS304 with mirror finish for easy cleaning and corrosion resistance | |
Insulation | Double wall with high-density glass wool insulation | |
Dimensions (W × D × H)mm | Inner: 18" × 18" × 18" (457 × 457 × 457 mm) | Outer : 31" × 25" × 41" (787 × 635 × 1041 mm) | |
Door System | Fully opening insulated door with right-side hinge, heavy-duty hinges & handle, gasket sealing, and locking arrangement for leak-proof closure | |
Shelves | 3 adjustable Adjustable SS/GI wire mesh shelves with proper air circulation design(≈ 10 kg load per shelf) | |
Air Circulation System | Forced air circulation for uniform temperature | |
Ventilation Control | Dual adjustable ventilation slides for inner air/vapour circulation control | |
Operating Temperature Range | Ambient to +250°C, adjustable with a setting accuracy of ±1°C | |
Temperature uniformity | ±0.5°C across chamber | |
Environmental Condition | Maximum +10°C to +40°C with Humidity 15% to 90% RH | |
Control System | Microprocessor-based PID with dual display (LCD) | |
Heating System | SS tubular heater with forced air circulation | |
Regulator | Solid-state electronic relay with protective heat sink | |
Temperature Control | Fully digital temperature control system ensuring stable, accurate, and uniform temperature across the working area | |
Display | LED display showing time, temperature setting , and actual temperature reading. | |
Alarms(Optional) | Audible and visual alarm system for over and under temperature, sudden power failure, and battery low | |
Noise level | ||
Validation Port | Provision for inserting thermometer to monitor internal chamber temperature | |
Power Rating | 1500 Watts | |
Power Requirement | 220–240V, 50 Hz, Single Phase | |
