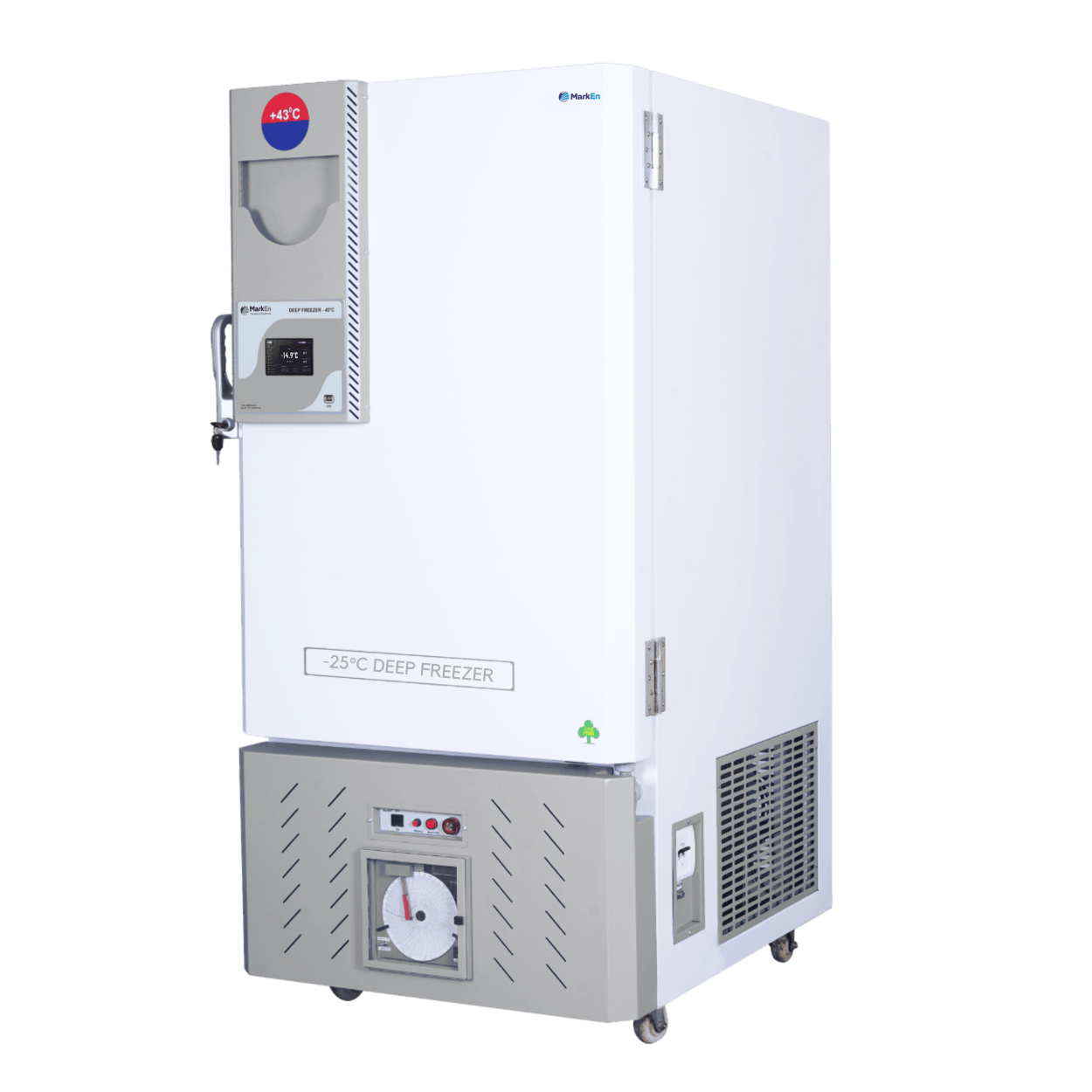

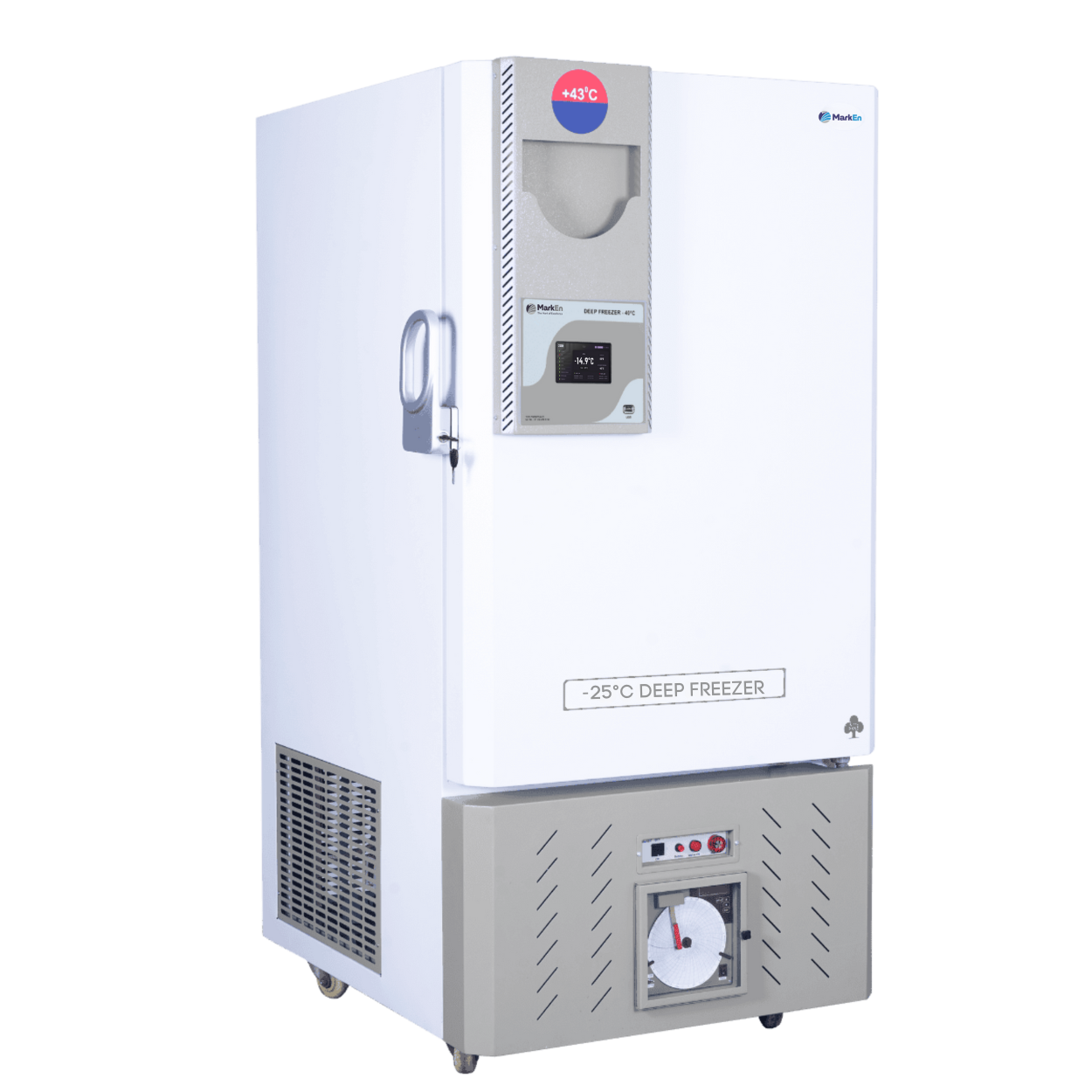

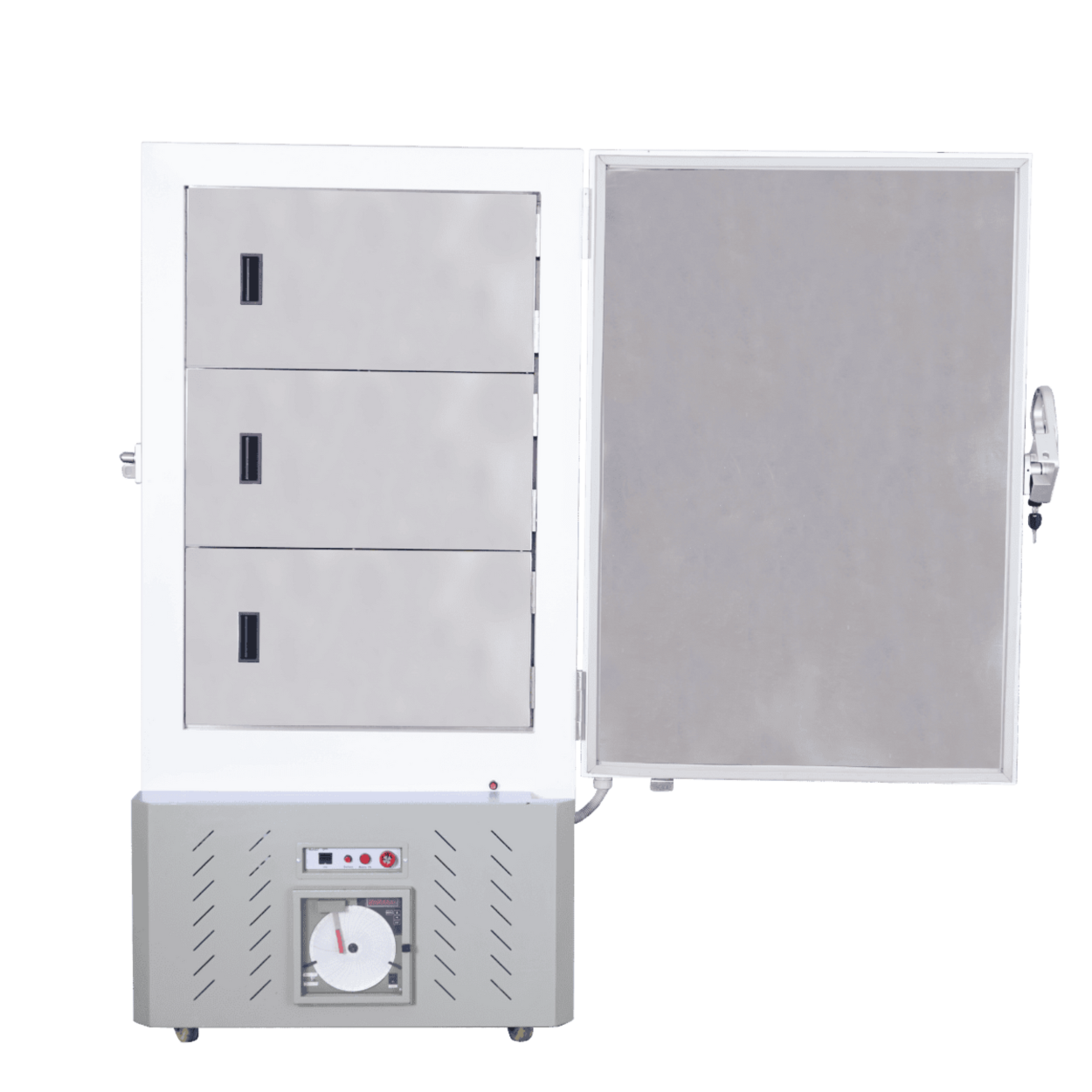

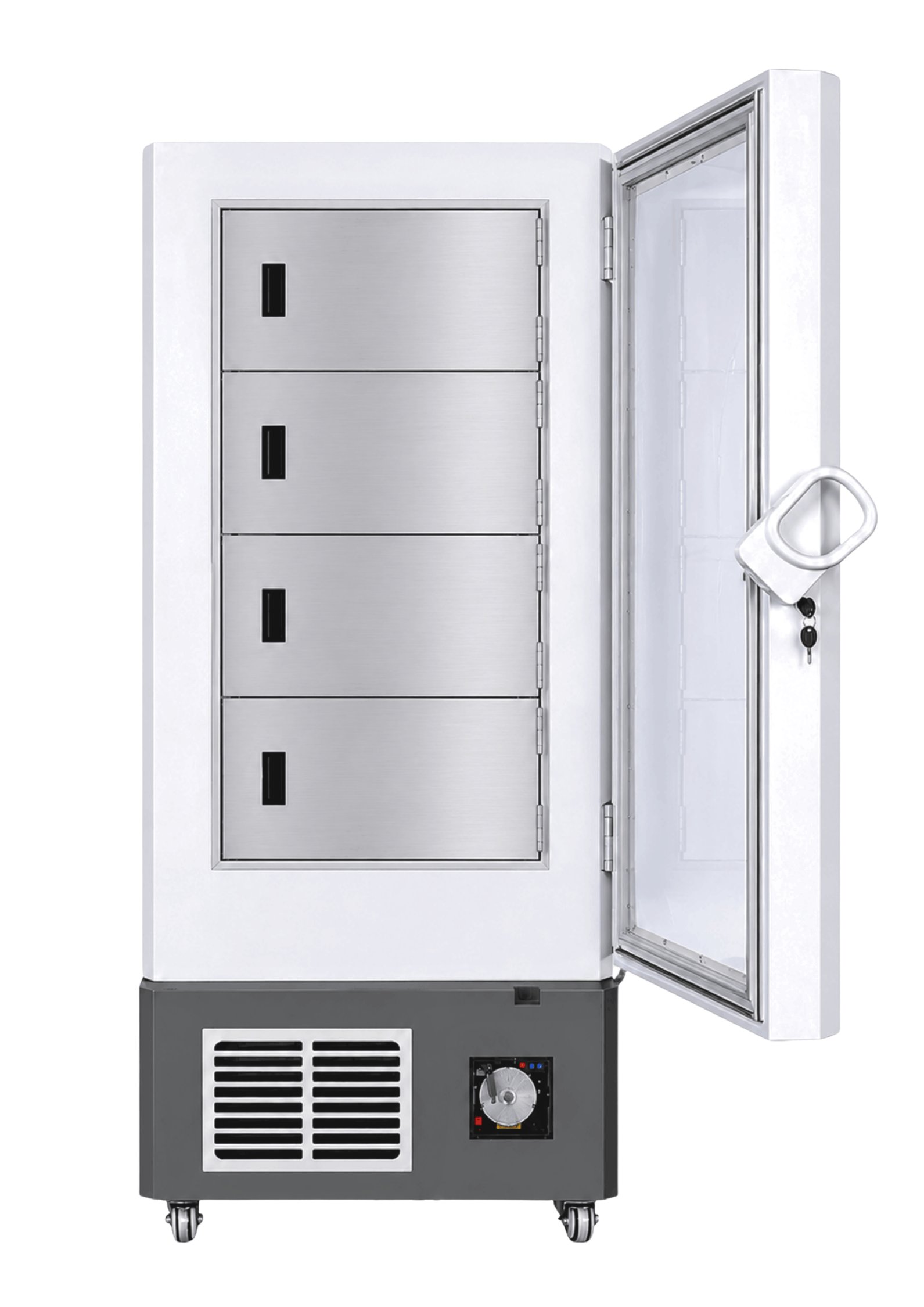

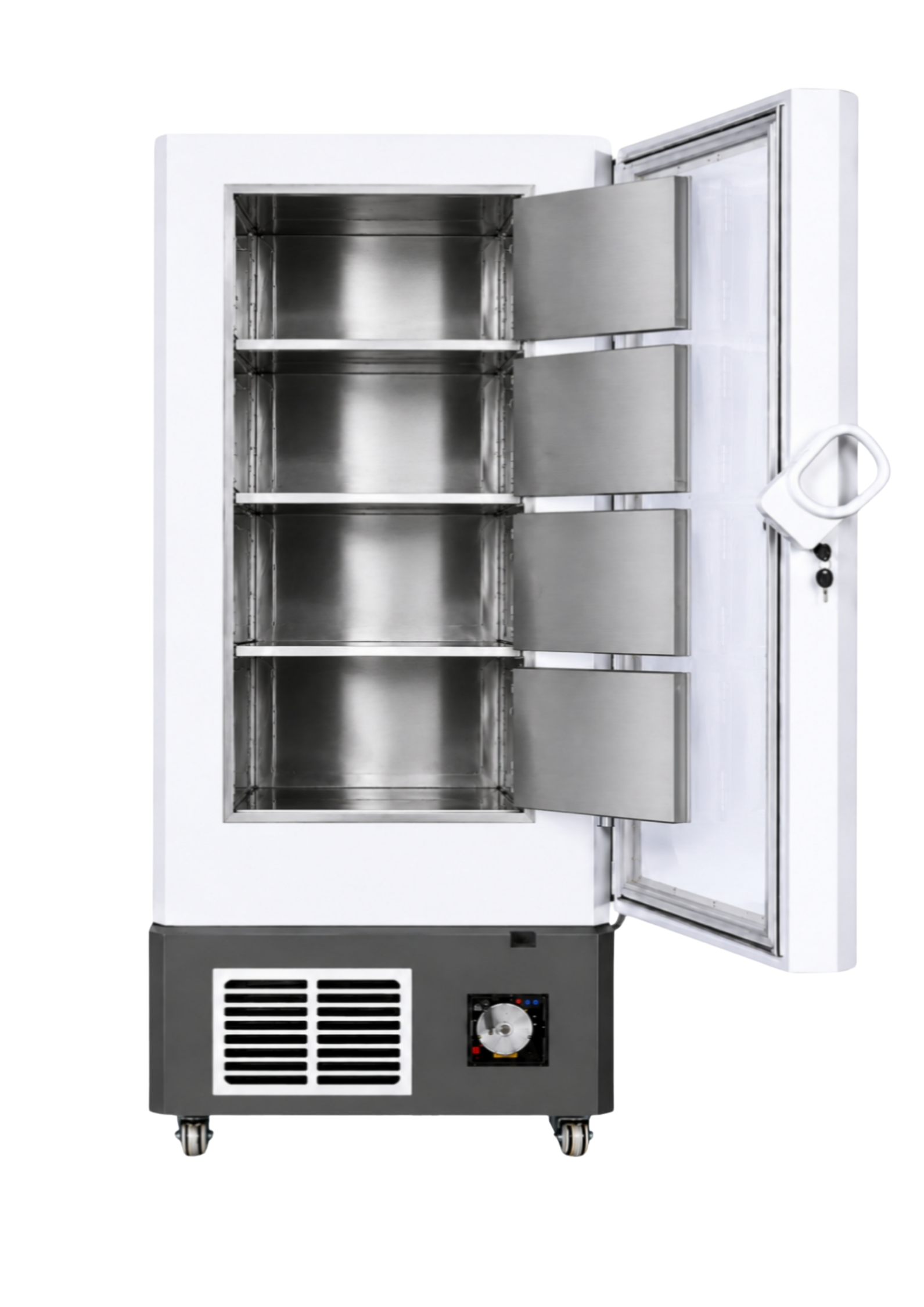

Deep Freezer -25°C
Deep Freezer –25°C is a high-precision cold storage unit crafted for the secure preservation of sensitive biologicals, including plasma, vaccines, and lab reagents. Its robust vertical design, user-centric interface, and intelligent temperature management system make it a trusted choice for laboratories, hospitals, and biotech facilities. Built to excel in demanding conditions, it seamlessly combines technical performance, energy efficiency, and global safety compliance.
Precision Cooling Control (–10°C to –25°C)
Stable, accurate temperature range ideal for biological and pharmaceutical storage.
Ergonomic & Durable Design
Vertical structure with stainless steel interior and powder-coated body for long-term usage.
Eco friendly Advanced Insulation
CFC-free high-density polyurethane insulation ensures thermal consistency and energy savings.
Integrated Monitoring System
Digital display with alarms, event logs, and system alerts.
WHO & IEC Compliant
Conforms to international standards for electrical safety and cold chain storage credibility.
Energy efficient Compressor System
Optimized for 24/7 operation with reduced power consumption and low noise output.
|
Technical Specifications |
|
|
Make |
MarkEn |
|
Type of Cabinet |
Vertical/Upright |
|
Color |
White |
|
Outer Material of Cabinet |
Corrosion resistance CRCA/GI powder coated steel (18swg) |
|
Inner Material of Cabinet |
Stainless Steel 304 |
|
PUFF Insulation- CFC free |
Cabinet: 127 mm |
|
Door : 115 mm |
|
|
Ground Clearance |
100 mm with 4 castor wheels (2 Lockable and 2 un-lockable) |
|

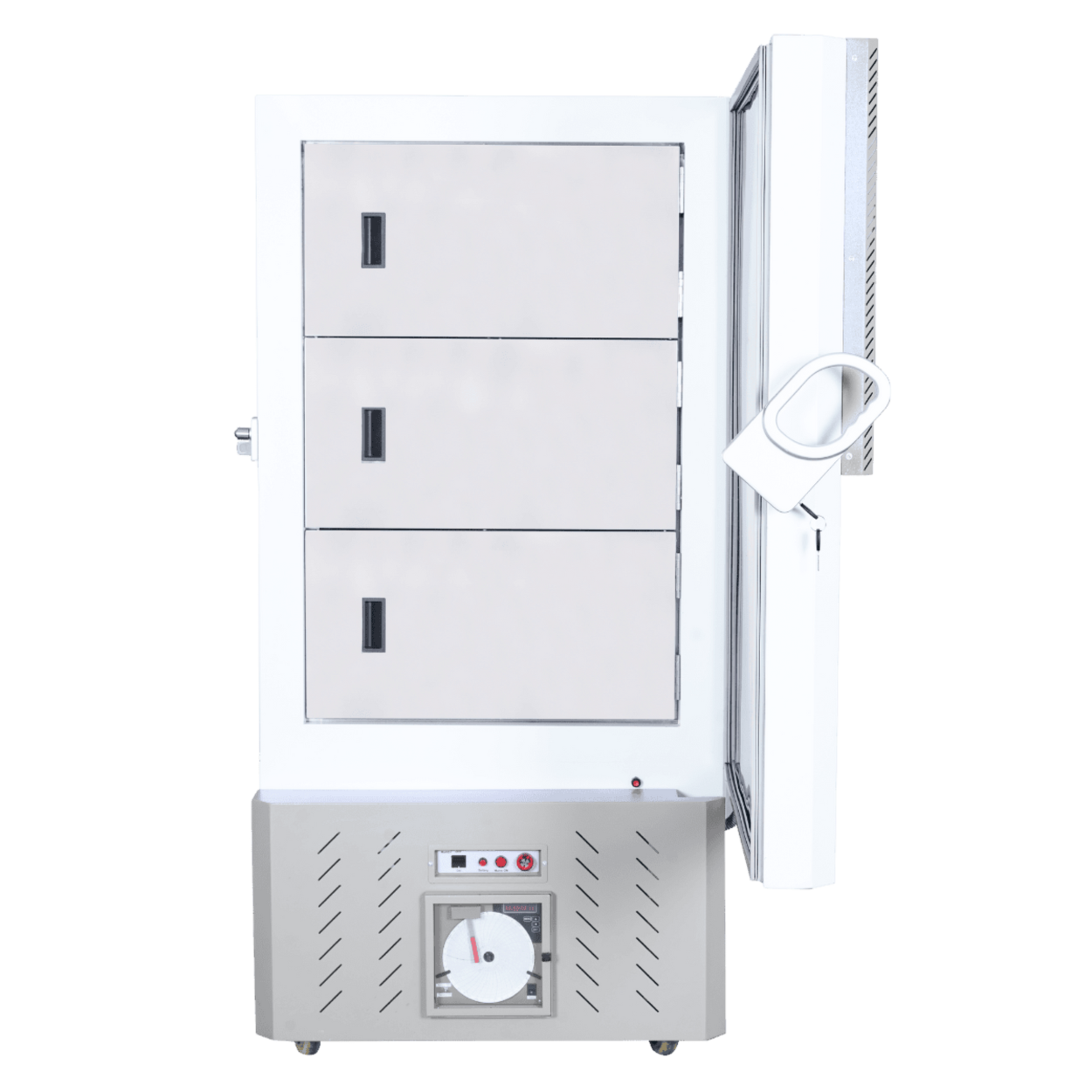

Door |
Solid door with Lock-Key and handle and 04 Nos Inner Door and includes standard key lock and provision for padlock. |
|

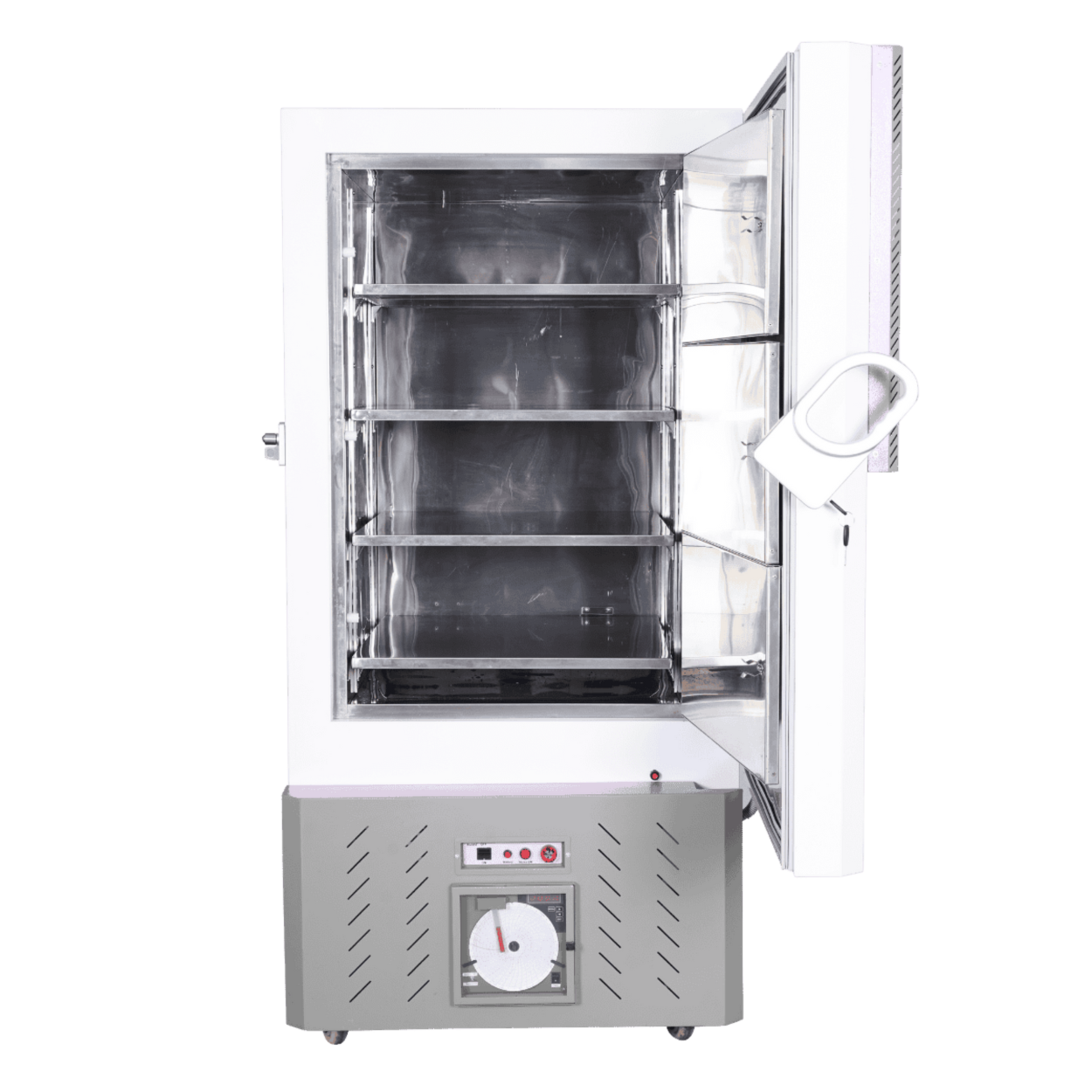

Inner Shelves |
04 Nos |
|
Compressor |
Hermetically sealed compressor |
|
Refrigerants |
CFC-HCFC-Free non flammable refrigerants. R452A |
|
Condensing |
Skin condensing Inner and air cooled grooved aluminum fins OR forced air circulation to maintain. |
|
Pull down time |
04 Hours |
|
Temperature uniformity |
±3˚C or Less |
|
Environmental Condition |
Maximum +45°C with Humidity 5% to 95% RH |
|
Control System |
Fully programmable microprocessor controlled with membrane keypad and Password Protected eye level control panel |
|
Temperature Monitoring System |
With IOT (Cloud Manage) supported (Optional) and 7 days inkless Chart Recorder (Optional). |
|
Display |
Digital Temperature Display 7” Touch Screen. |
|
Alarms |
Audible and visual alarm system for over and under temperature, sudden power failure, system failure, Clogged Condenser Filter , Door open and battery low. |
|
Battery Backup |
74 Hrs Battery Backup for Digital Display, Total Alarm system, Temp. recording system with auto recharging facility. |
|
Access port |
Provision of connecting LN2/CO2 Backup system for maintaining the set temperature during power failure. |
|
Noise level |
|
|
Power Consumption rate- |
Stable Running: 2.040 kWh/24Hrs Cool Down Test:2.30kWh/24Hrs. |
|
Power supply |
Suitable for Input Voltage Range 100 to 290 VAC, 50 Hz +10% |
