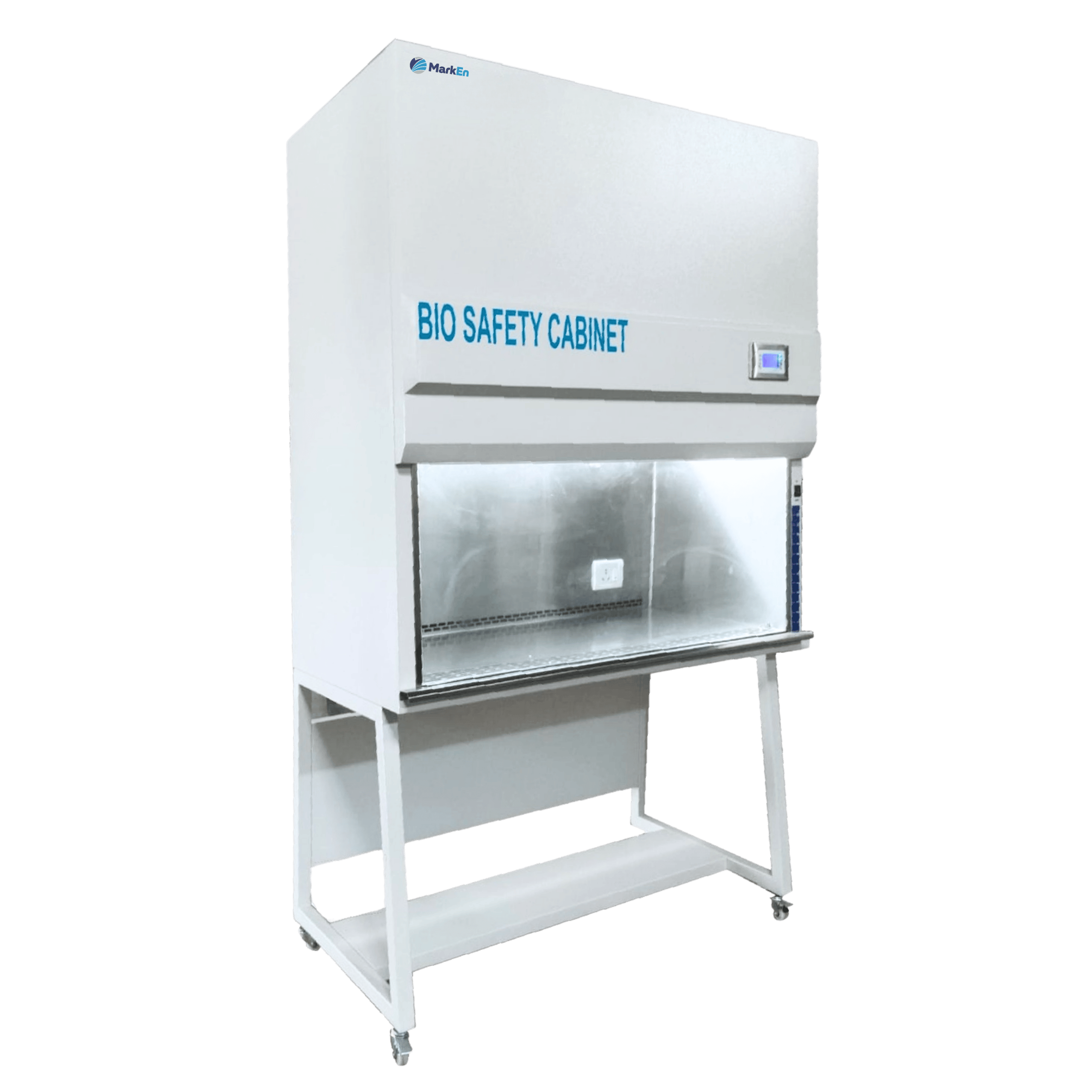

Bio Safety cabinet
Engineered for sterility and safety, the MarkEn Bio Safety Cabinet ensures a contamination-free workspace, safeguarding samples, personnel, and the environment. Designed for critical applications like microbiology, sterile compounding, and forensics, it delivers unmatched reliability and comfort. Featuring advanced HEPA/ULPA filtration, it upholds stringent industry standards, providing a pristine, controlled environment for precision work.
Energy-Efficient Performance
Low power consumption (155 watts) with up to 70% energy savings using DC ECM blower technology.
Superior Air Filtration for Maximum Purity
ULPA filter (>99.999% efficiency) captures particles as small as 0.1–0.3 μm, offering 10x better protection than standard HEPA filters.
Ultra-Quiet Operation
Noise levels as low as 52 dBA ensure a distraction-free and comfortable working environment.
Advanced Safety & Airflow Control
Sentinel™ Gold Microprocessor Controller ensures stable, self-compensating airflow, providing continuous sample protection.
Flexible & Customizable Design
Available in fixed and sliding sash options, with vertical airflow configuration to eliminate dead air zones and turbulence.
Long-Lasting, Durable Construction
Engineered for at least 10 years of operational life, with guaranteed spare parts availability for seamless maintenance.
Type of air flow direction | Vertical |
Thickness of the floor or side panels | 5 mm |
Type of configuration | Freestanding, |
Material used for the work bench | Stainless steel 304 grade |
Material used for the front door | Acrylic transparent |
Material used for the Side Panel | Stainless steel 304 grade |
Main Body | 1.2 mm / 0.05"/ 18 gauge electro-galvanized steel with white oven-baked epoxy powder coated finish |
Availability of motorized | Sliding door |
Display | LED,LCD display for velocity, time & lamp on/off |
Alarm | Digital Pressure Gauge with Alarm |
Light intensity | >= 1000 lux and additional UV light |
Type of air cleanliness | Class 100 |
Type of Sash (front door) | Folding |
Internal Work Area, (WxDxH) in feet | 4x2x2 |
Laminar air flow Velocity (m/s) | 0.26 to 0.38 |
Exhaust HEPA Filter Typical Efficiency | ≥99.99% at 0.3 microns |
Average down flow at 5-10 cm above the work access opening | 80 FPM (+/- 5) |
Sound Emission | 52 dBA |
Illumination | LED |
Electrical | 230V/50HZ 15 A |
Weight (Net) | 90 kg |
