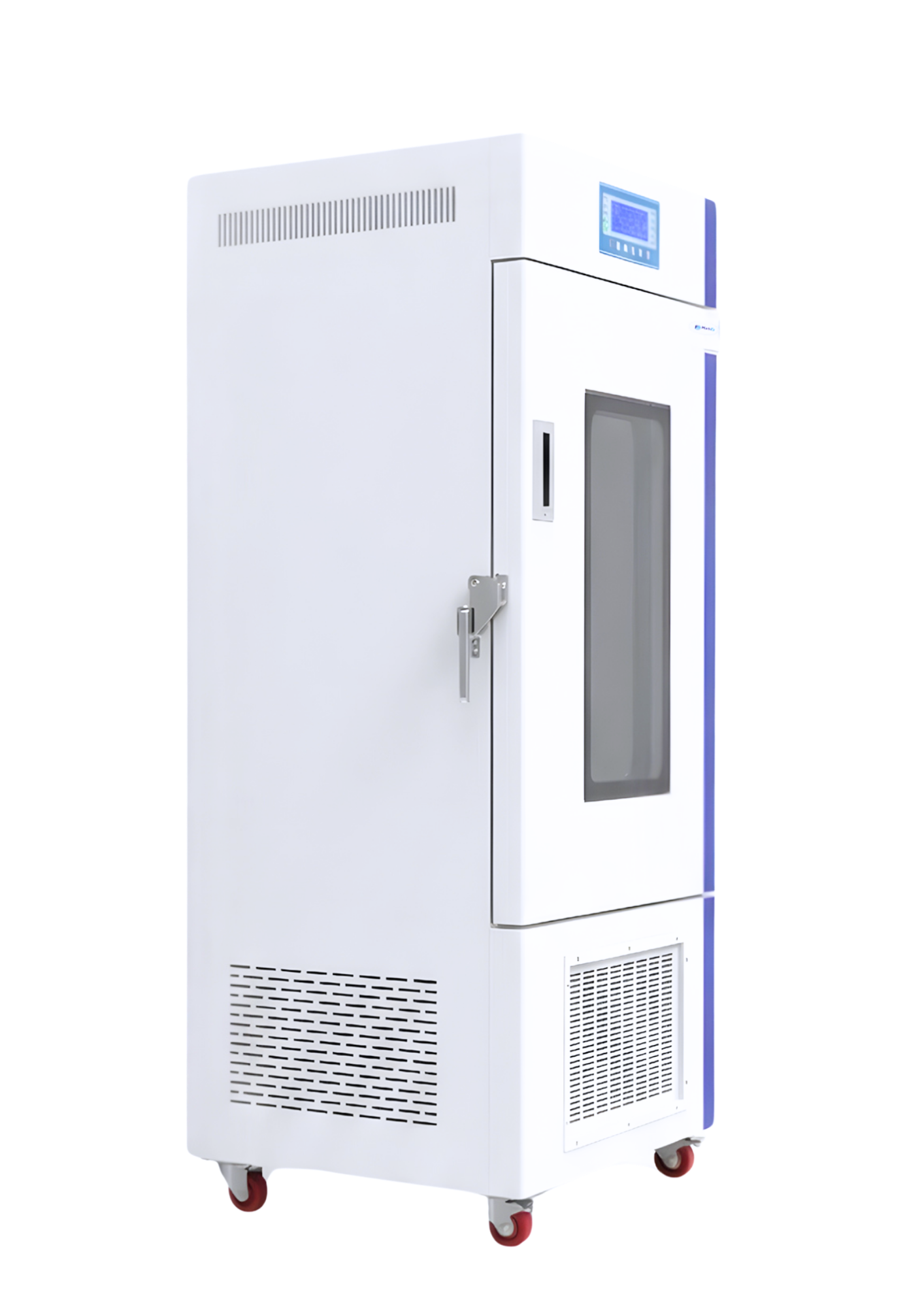

Bacteriological Incubator
The MarkEn BOD Incubator is designed for precise and reliable temperature-controlled incubation in clinical, diagnostic, microbiology, and research laboratories. It provides stable environmental conditions for bacterial and fungal culture, ELISA plate incubation, and routine laboratory applications. Its forced-convection air circulation ensures uniform temperature distribution throughout the chamber. A microprocessor-based PID controller with PT100 sensing enables accurate and consistent temperature control. The stainless-steel inner chamber, observation door, and adjustable shelving support convenient and hygienic operation. Designed for dependable performance, safety, and efficient day-to-day laboratory workflows.
Precise Temperature Control
Provides a wide 0°C to +60°C temperature range with high accuracy for dependable incubation and laboratory applications.
Uniform Air Circulation
Forced-convection air circulation maintains consistent temperature distribution throughout the chamber for reliable sample incubation.
Intelligent Touchscreen Monitoring
Features a 10-inch colour touchscreen with real-time temperature curve and graphical monitoring for convenient operation.
Durable Stainless-Steel Chamber
The SS304 inner chamber with fully rounded corners provides excellent durability, corrosion resistance, and easy cleaning.
Advanced Safety & Alarm System
High/low temperature alarms, power-failure recovery, and automatic safety cut-off provide enhanced operational protection.
Flexible Storage & Accessibility
Adjustable removable shelves, observation glass door, caster wheels, and external sensor test port support efficient laboratory use.
Type | BOD incubator |
Capacity in Liter | 200 L |
Type of Cabinet | Vertical |
Exterior Body Material | Zinc galvanized sheet metal with epoxy Powder coating, heat and corrosion resistance, good quality durable metal housing care |
Inner Chamber Material | SS304 Inner Chamber with Fully Rounded (Arc) Corners for Easy Cleaning. |
Door | Visual glass door for observation without disturbing chamber conditions; air circulation stops automatically when door is opened |
Castor Wheels | 4 Castor Wheels (2 lockable & 2 Unlockable) |
Insulation | CFC-free / HFC-free polyurethane insulation foam |
Insulation Thickness | Cabinet: 80mm | Door: 50mm |
Shelves | 4 detachable anti-dumping integrated shelves, removable without tools. |
Shelf Adjustment | Removable shelves / partitions with adjustable spacing |
Compressor | Hermetically sealed refrigeration compressor |
Refrigerants | Environment-Friendly Refrigeration System using Fluorine-Free Refrigerant |
Air Circulation | Forced convection air circulation for uniform temperature distribution |
Temperature Range | 0°C to +60°C with accuracy of ±0.1°C |
Temperature Uniformity | ±0.5°C |
Environmental Condition | Maximum 10°C to 50°C with Humidity of 15% to 95% RH |
Control System | Microprocessor-based PID controller |
Temperature Monitoring | PT100 sensor for accurate temperature control |
Display | 10-inch colour touchscreen display with real-time temperature curve/graph monitoring |
Battery Backup (Optional) | 12Hrs. battery backup for digital display, alarm system and temperature recording system with auto recharging facility. |
Noise level | <55 dBA |
Alarm System | Power-off recovery with high/low temperature alarms and 0–5°C upper deviation alarm setting range |
Safety Cut-Off | Automatic power cut-off when temperature exceeds set limits |
USB Interface | USB port for data output and storage |
Test Port | Test port / hole for external sensors such as temperature and humidity |
Input Power Supply | 220 VAC ±10%, 50 Hz |
