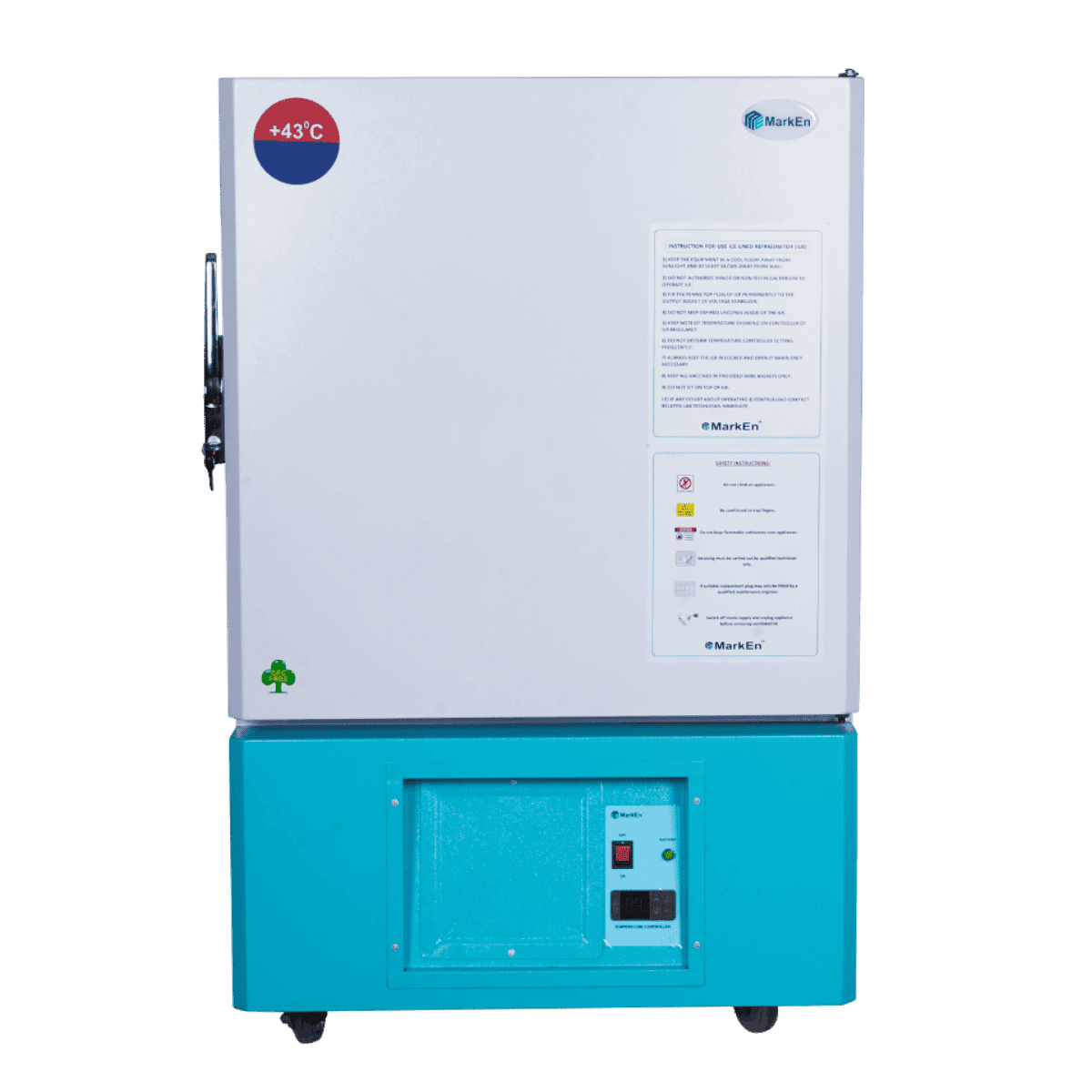

Ice Lined Refrigerator
Ice Lined Refrigerator (ILR) is designed to ensure precise temperature control, eliminating the risk of freezing vaccines. With energy-efficient technology, it maintains a temperature holdover of 24 hours and requires just 8 hours of daily power to operate. The high-tech energy management system and optimized refrigeration design ensure superior temperature stability, even in challenging conditions.
Optimal Temperature Control
Maintains a consistent +2°C to +8°C range, even in extreme environments from -10°C to +43°C.
Reliable Operation in Unstable Power Conditions
Ideal for regions with inconsistent electricity, ensuring continuous cooling without needing standby power.
Tropical Climate Ready
Green-based technology ensures efficient and consistent cooling performance in warm and humid climates.
Anti-Condensation Hot Line
Prevents moisture buildup around the cabinet opening, maintaining hygienic and efficient storage.
Energy-Efficient Refrigeration
Compression cycle cooling system delivers consistent temperature regulation while minimizing power consumption.
Remote Temperature Monitoring & GPS Tracking
GPS-enabled system provides real-time temperature alerts via SMS, email, and QR tracking through the manufacturer’s mobile app, ensuring 24/7 monitoring and compliance.
|
Model |
MILR-01 |
MILR-02 |
MILR-03 |
MILR-04 |
||
|
Gross Capacity in Liters |
80 L |
155 L |
301 L |
301 L |
||
|
Net Capacity |
30 Bags |
100 L |
245 L |
248 L |
||
| Dimensions (WxDxH) in mm |
Outer |
800 x 450 x 600 |
900 x 500 x 700 |
1200 x 650 x 850 |
1100 x 600 x 800 |
|
|
Inner |
650 x 350 x 450 |
750 x 400 x 550 |
1000 x 500 x 650 |
900 x 450 x 600 |
||
|
Door (HxW) |
450 x 500 |
500 x 600 |
650 x 900 |
600 x 800 |
||
|
Net weight |
60 kg |
105 kg |
150 kg |
115 kg |
||
|
Type of Cabinet |
Horizontal/Vertical |
|||||
|
Color |
White |
|||||
|
Outer Body Material |
Corrosion-resistant CRCA/GI powder-coated steel, Galvanized Steel (18 SWG) / Rotomolded |
|||||
|
Inner Chamber Material |
Stainless Steel 304 / Rotomolded Rust-Free Construction |
|||||
|
Insulation Material |
CFC-free PUFF insulation |
|||||
|
Insulation Thickness |
Cabinet: 80-100 mm |
Door: 80-100 mm |
||||
|
Ground Clearance |
100 mm with additional support for uneven floors (Optional) |
|||||
|
Door |
Ballast box-type solid door with lock-key and handle |
|||||
|
Castor Wheel |
4 castor wheels, out of which 2 are lockable |
|||||
|
Basket |
02 - 05 Nos. |
|||||
|
Compressor |
Hermetically sealed compressor |
|||||
|
Refrigerants |
CFC-HCFC-free, non-flammable green refrigerants (R-134a) |
|||||
|
Temperature Sensor |
PT 100 (placed under 25–50 mm above the base chamber) |
|||||
|
Condensing |
Skin condensing and inner and air-cooled grooved aluminum fins |
|||||
|
Pull down time |
12 Hours when ILR is empty and 24 Hours when ILT is fully loaded |
|||||
|
Holdover time with full load |
24 Hours |
|||||
|
Operating Temperature Range |
+2°C to +8°C adjustable with setting accuracy +0.1°C |
|||||
|
Temperature uniformity |
±1°C |
|||||
|
Control System |
On/Off switch, power indicator, fully programmable microprocessor-controlled with a membrane keypad, and password-protected with a child lock facility |
|||||
|
Temperature Monitoring System |
With IOT (Cloud Manage) supported (Optional). |
|||||
|
Display |
3-digit digital temperature display with 0.1˚ resolution |
|||||
|
Alarms |
Audible and visual alarm system for over and under-temperature, sudden power failure, and low battery |
|||||
|
Battery Backup |
12-hour battery backup for digital display, total alarm system, and temperature recording system with auto-recharging facility |
|||||
|
Noise level |
<55 db |
|||||
|
Power supply |
220-240V AC, 50 Hz +22% |
|||||
