Cryo Bath
Cryo Bath is designed to provide precise, uniform, and contamination-free thawing of Fresh Frozen Plasma (FFP) and other blood components. Engineered with cutting-edge technology, it ensures optimal temperature control, rapid thawing, and long-term reliability for blood banks, laboratories, and research facilities.
Precise Temperature Control
Microprocessor/PLC-based system ensures ±0.2°C accuracy within a 4°C range, maintaining optimal thawing conditions.
Uniform & Efficient Thawing
High-capacity pump delivers consistent water circulation, ensuring even thawing of plasma bags.
Advanced Contamination Prevention
Specialized tray design keeps bag ports above water, minimizing contamination risks.
Quick Thawing for Time Efficiency
Completes plasma thawing at -40°C within 2 hours, with flexible capacity options for different operational needs.
Easy Maintenance & Cleaning
Drainage system & removable components allow for hassle-free cleaning & maintenance.
Durability & Mobility for Long-Term Use
Built to last 10 years with portable, lockable castor wheels for easy movement & secure placement.
Capacity ( Bags) | 6/12/24 regular fresh frozen plasma filled bags |

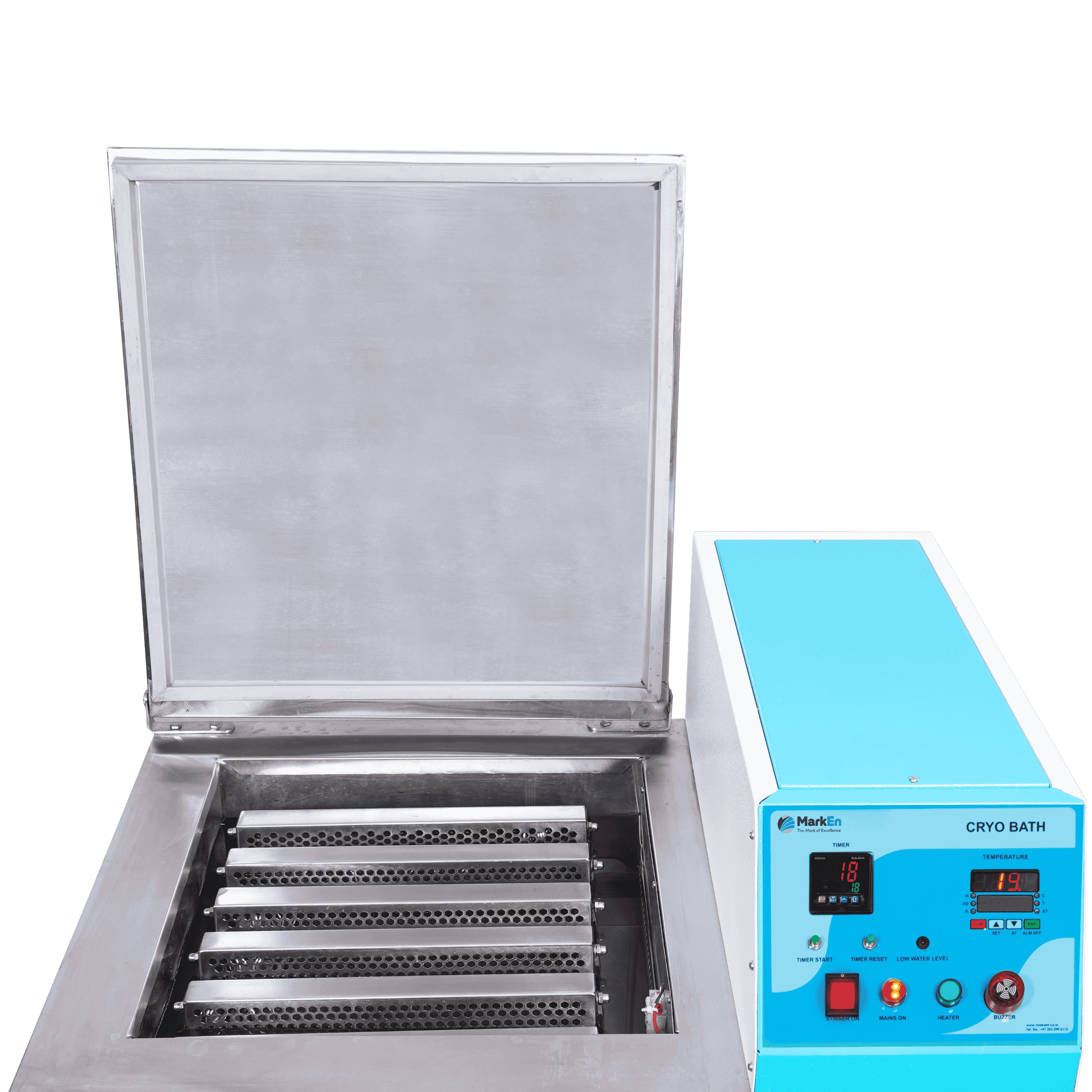

Tray | Removable stainless steel tray with a 6 × 2 configuration and individual compartments for holding plasma bags. |
Material | Inner Body-Non-Corrosive SS 304 |
Operating temperature Range | +3.5°C to +37°C adjustable with setting accuracy of ±0.2˚C. |
Programmable temperature range of controller | +3°C to +50 °C |
Timer setting range (programmable) | 0-4 hrs |
Inner tank and lid | Stainless steel 304 (22swg) |
Temperature controller | Microprocessor based digital controller. |
Tray | Removable SS tray of individual compartment for holding plasma bags. |
Thawing Time | 1.5 - 2 Hours For Plasma Stored at -40°C |
Thawing Mechanism | Pumping Mechanism: High-capacity pump.Temperature Maintenance: Controlled by a heater and compressor.Cooling Coils: Routed to maximize cooling efficiency.Filter Near Water Inlet Inside Tank: Prevents clogging and restricts dust movement into the pump. |
External dimensions (W x D x H ) mm | 850x500x800 (with castor wheel) |
Temperature sensing method | Sealed sensor dipped directly in the water. |
Alarms (Audio and Visual) | High Temperature and Low Temperature AlertsTimer End NotificationCompletion of Thawing IndicatorCut-Off Function |
Display | 4 x 7 segment LED /LCD with 0.1°C resolution. |
Display resolution | 0.1ºC-0.5ºC |
Weight (Net) | 65 kg |
Stabilizer | 2KVA External Stabilizer (Optional) |
Power supply | 230+/-10% Volts 50Hz,15A single phase AC. |
